Fuse Block - Underhood - Cooling Fan Bottom View (10 Series): Notes

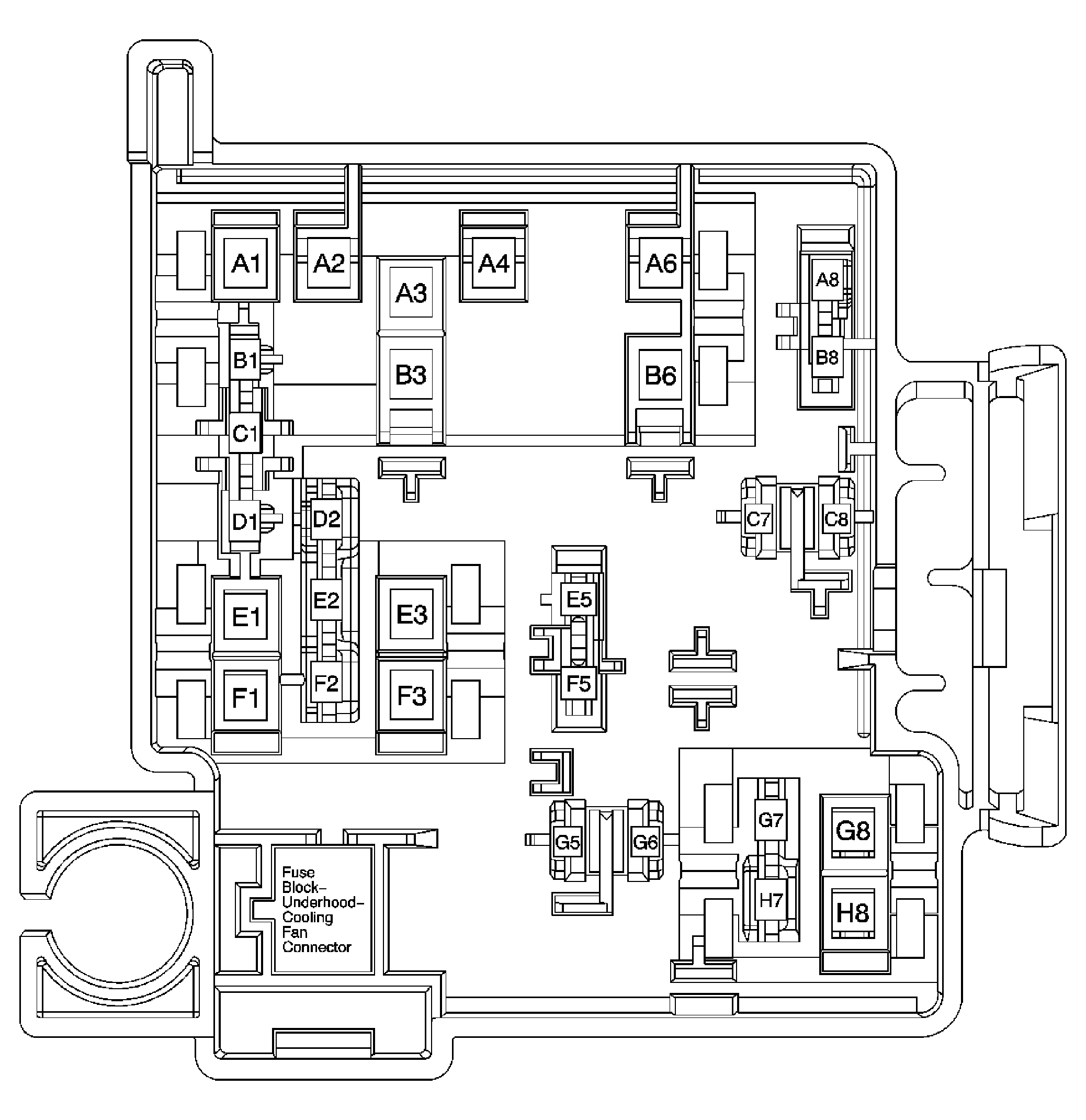

Fig 1: Fuse Block - Underhood - Cooling Fan Bottom View (10 Series)

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Underhood - Cooling Fan (10 Series) Wire Entry

Connector Part Information		15490629 29-Way F PA66 GF14 Series (BK)
Pin	Wire Color	Circuit No.	Function
A1	BK	250	Ground
A2	-	-	Battery Positive Voltage Bus
A3	D-BU	473	High Speed Cooling Fan Control
A4	L-BU	409	Cooling Fan Motor Supply Voltage
A6	-	-	Cooling Fan Motor Supply Voltage Bus
A8	-	-	Battery Positive Voltage Bus
B1	-	-	Not Used
B3	YE	5358	Cooling Fan Motor Control
B6	D-BU	473	High Speed Cooling Fan Control
B8	-	-	Battery Positive Voltage Bus
C1	-	-	Not Used
C7	-	-	Battery Positive Voltage Bus
C8	-	-	Battery Positive Voltage Bus
D1	-	-	Battery Positive Voltage Bus
D2	-	-	Battery Positive Voltage Bus
E1-E2	-	-	Not Used
E3	GY	532	Cooling Fan Motor Supply Voltage
E5	-	-	Battery Positive Voltage Bus
F1-F2	-	-	Not Used
F3	D-GN	335	Low Speed Cooling Fan Control
F5	-	-	Battery Positive Voltage Bus
G5	-	-	Battery Positive Voltage Bus
G6	-	-	Battery Positive Voltage Bus
G7	-	-	Not Used
G8	-	-	Battery Positive Voltage Bus
H7-H8	-	-	Not Used

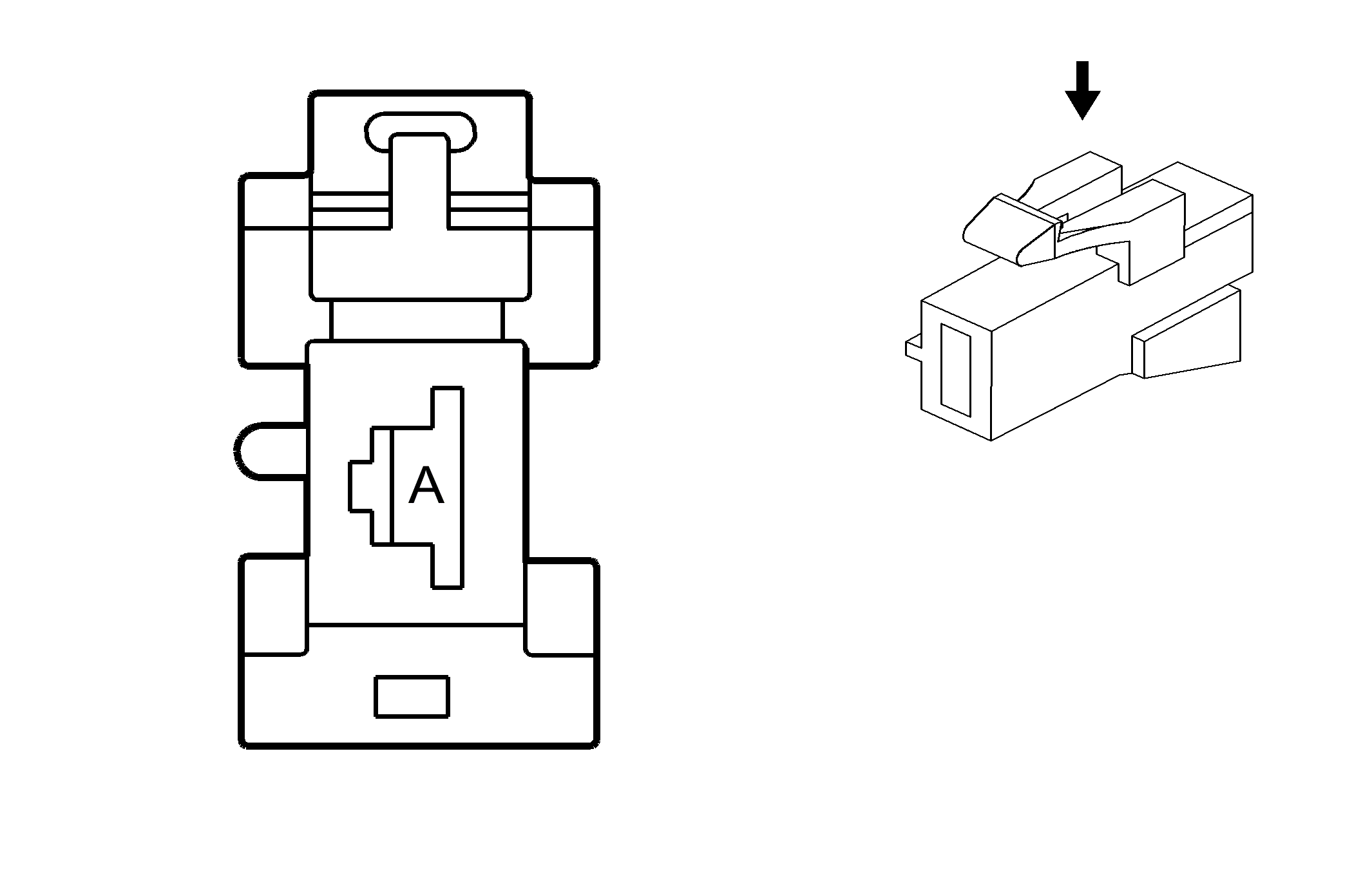

Fuse Block - Underhood - Cooling Fan (10 Series) Connector

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12160893 1-Way F Metri-Pack 800 Series Flxlck Maxi (BK)
Pin	Wire Color	Circuit No.	Function
A	RD	1	Battery Positive Voltage
