Power Seat Control Module: Diagrams

Rear Seat Module C1 (With RPO Code AM0):

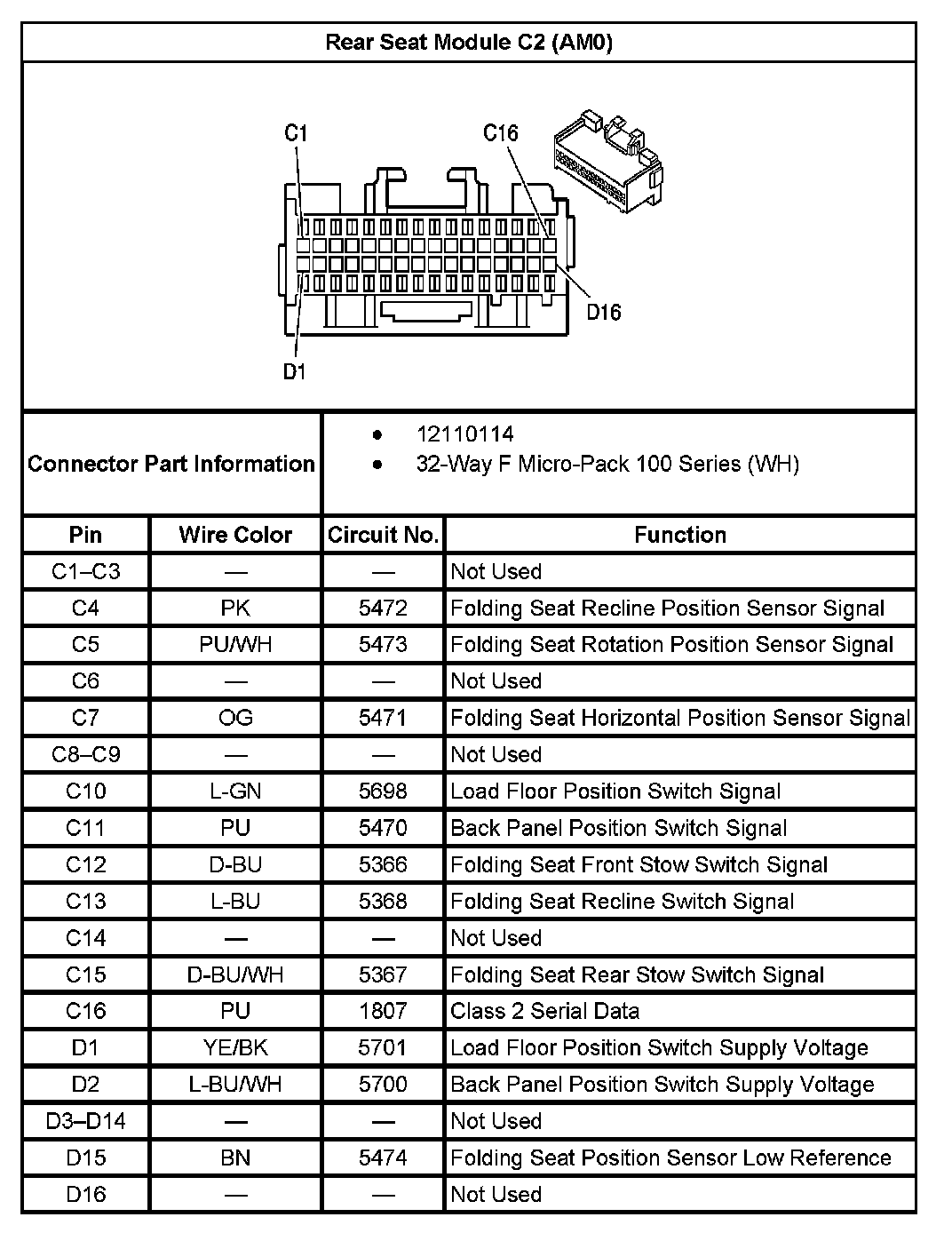

Rear Seat Module C2 (With RPO Code AM0):



Rear Seat Module C3 (With RPO Code AM0):
