Home
>>
Cadillac
>>
2006
>>
STS AWD V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Control Module, A/T
>>
6L80-E - Automatic Transmission
>>
Input and Output Speed Sensor (Iss/OSS)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

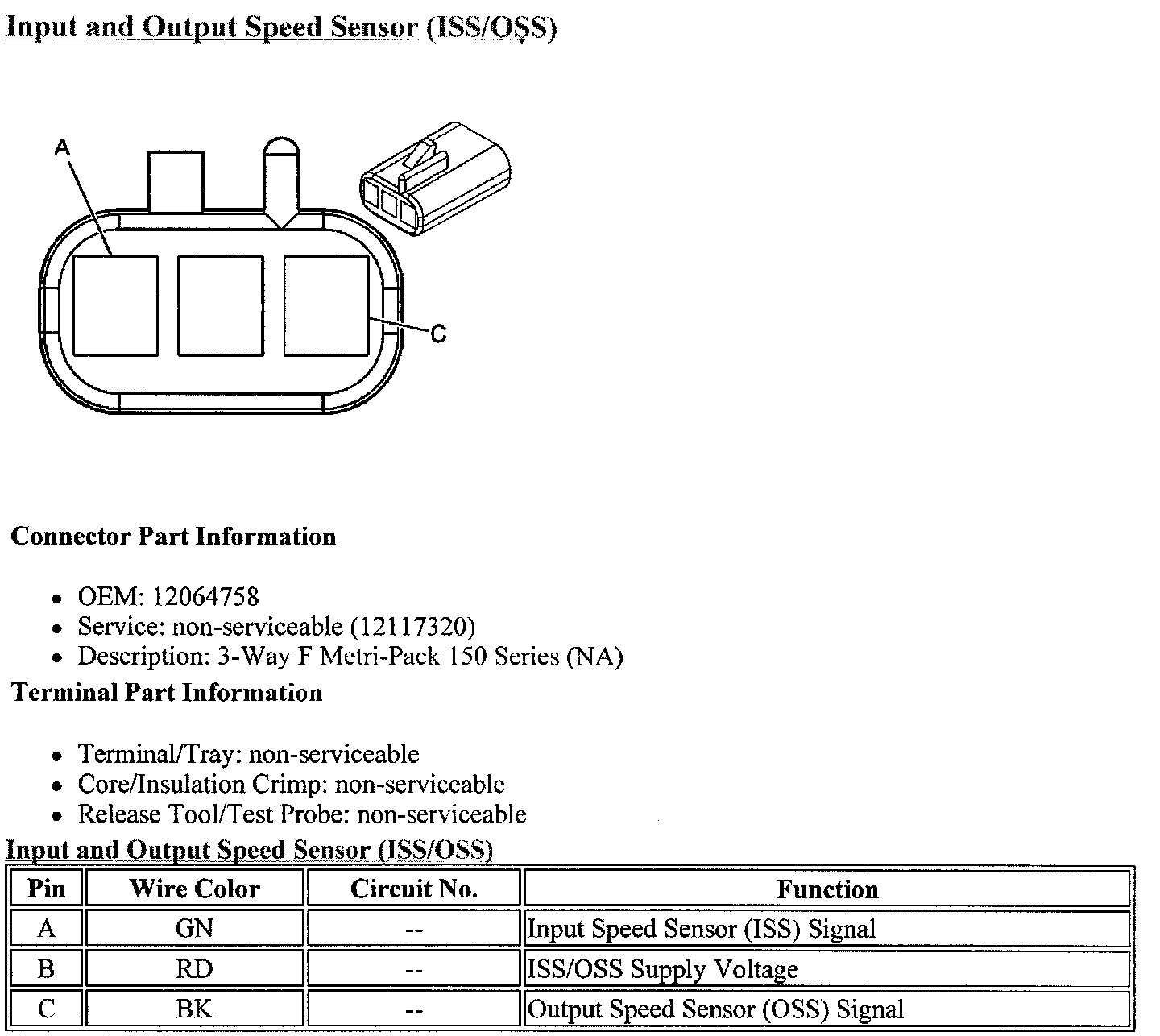

Input and Output Speed Sensor (Iss/OSS)
