Driver Door Module (DDM)

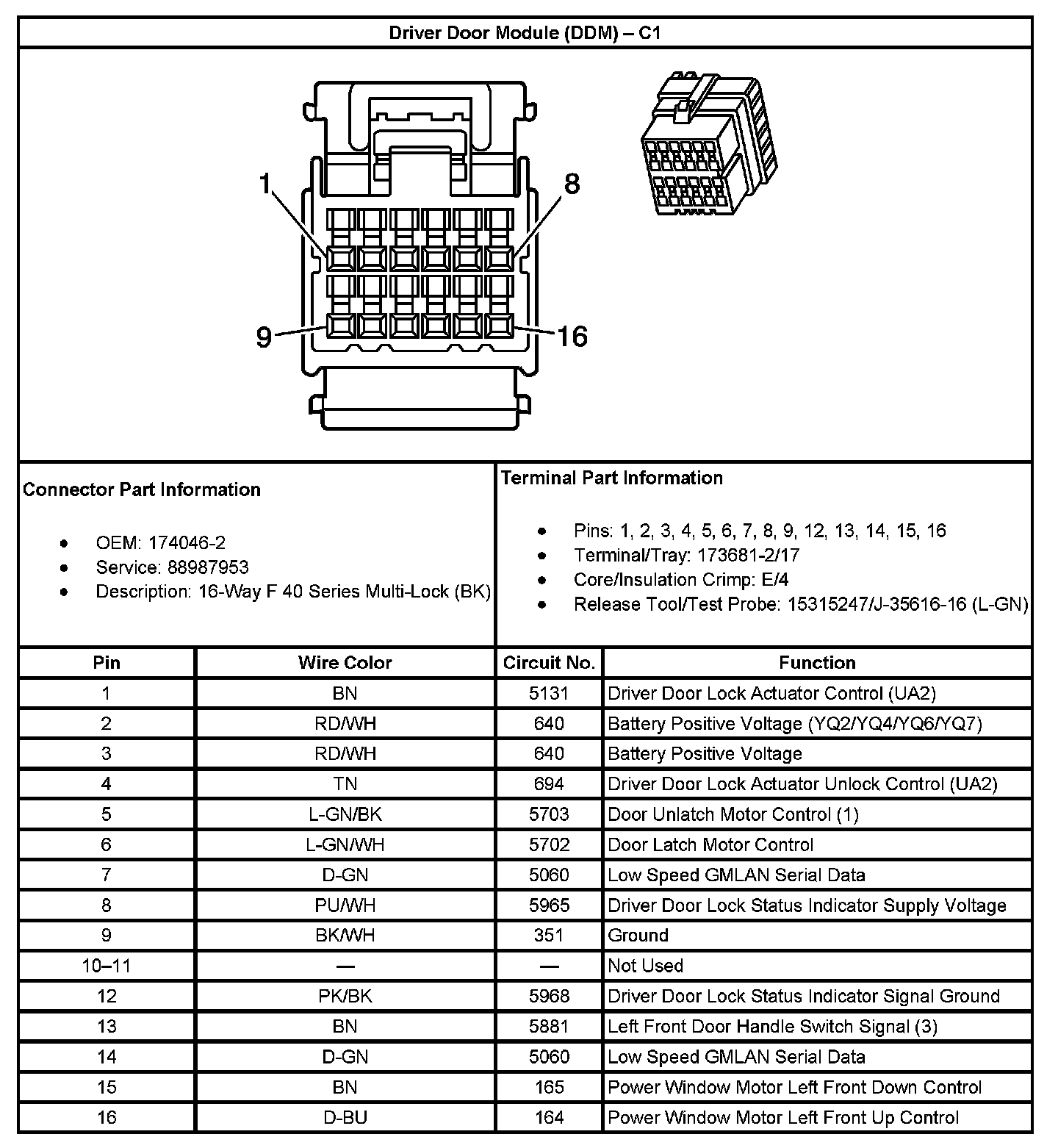

Driver Door Module (DDM) - C1:

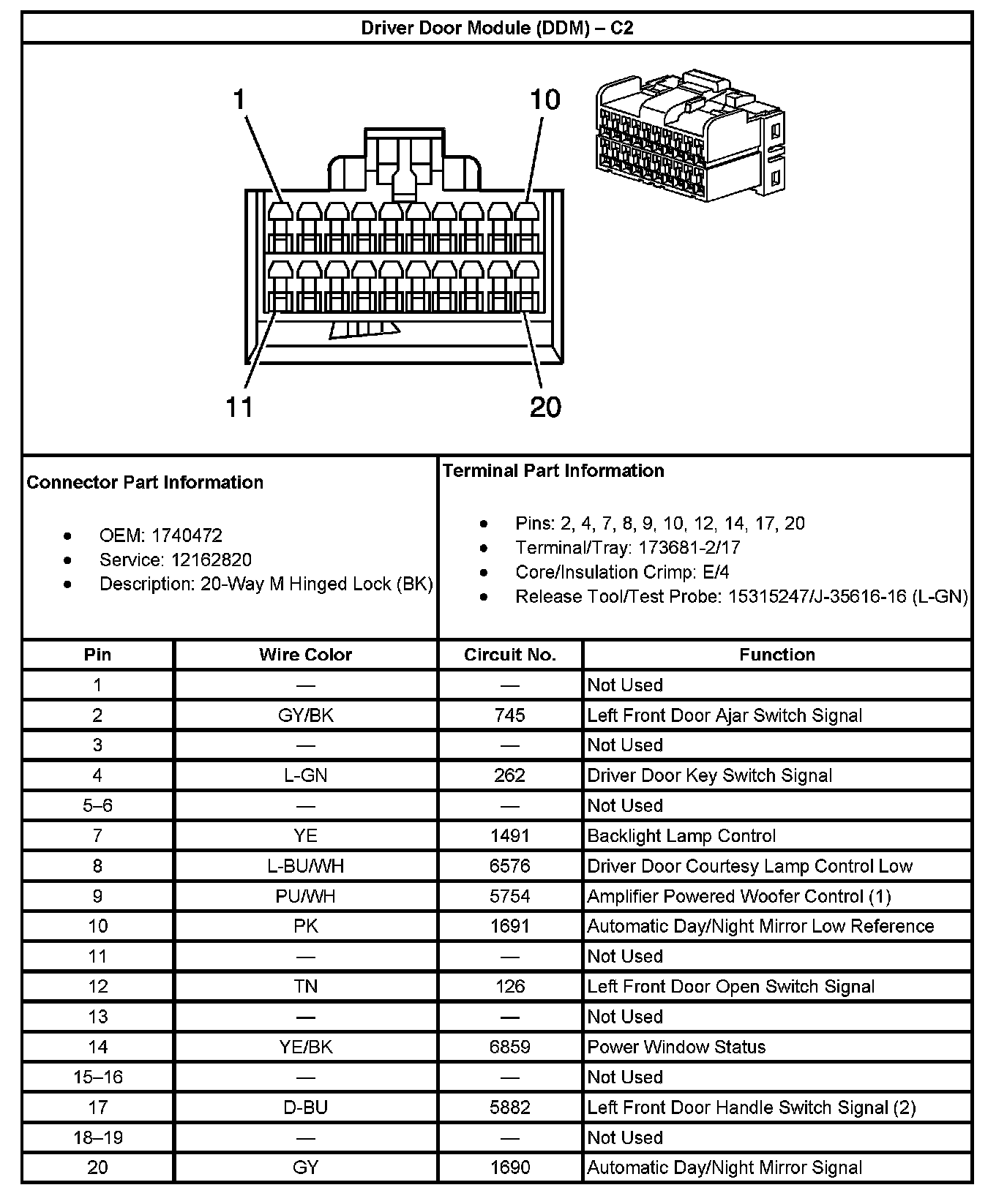

Driver Door Module (DDM) - C2:

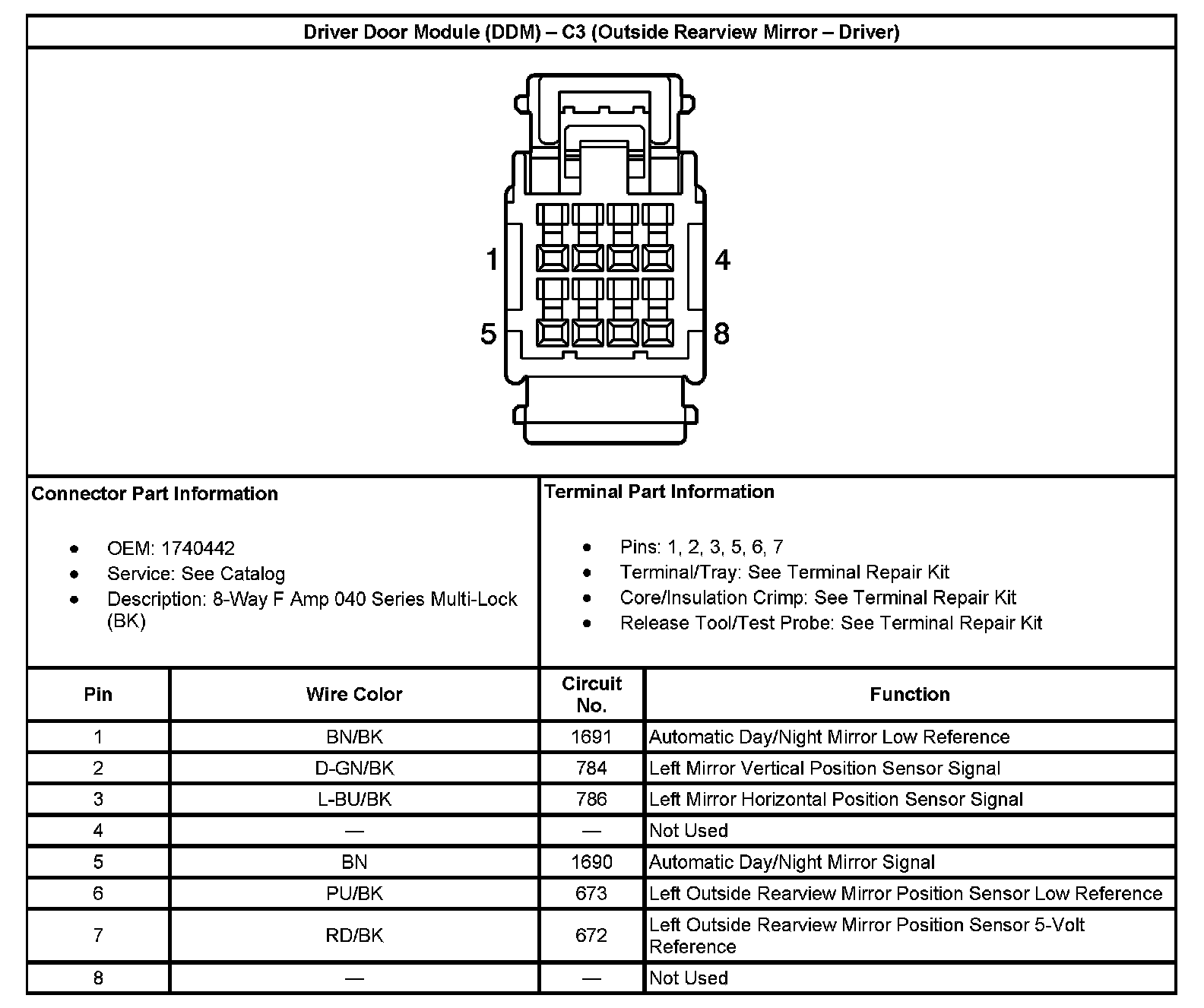

Driver Door Module (DDM) - C3 (Outside Rearview Mirror - Driver):

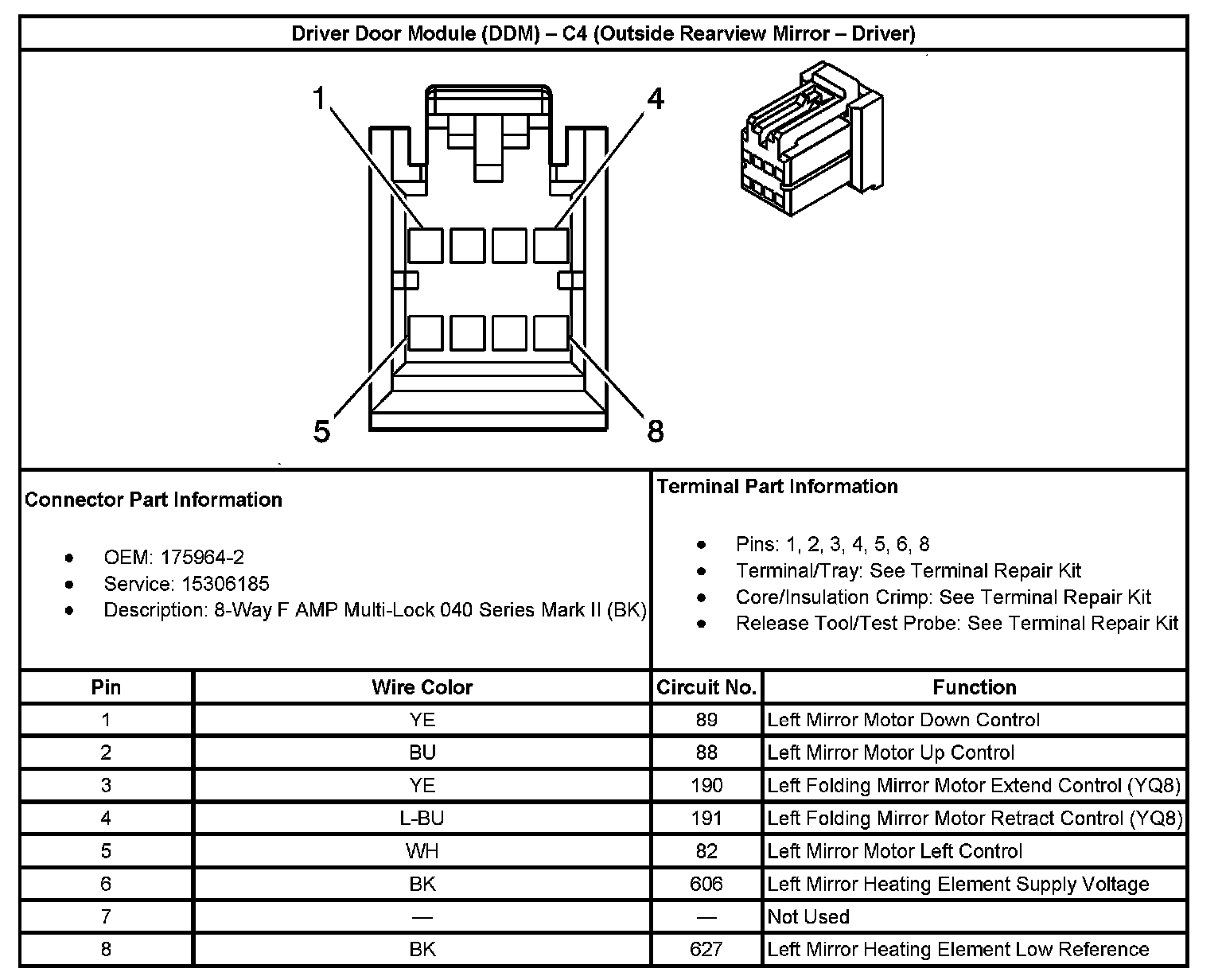

Driver Door Module (DDM) - C4 (Outside Rearview Mirror - Driver):
