Control Module HVAC: Locations

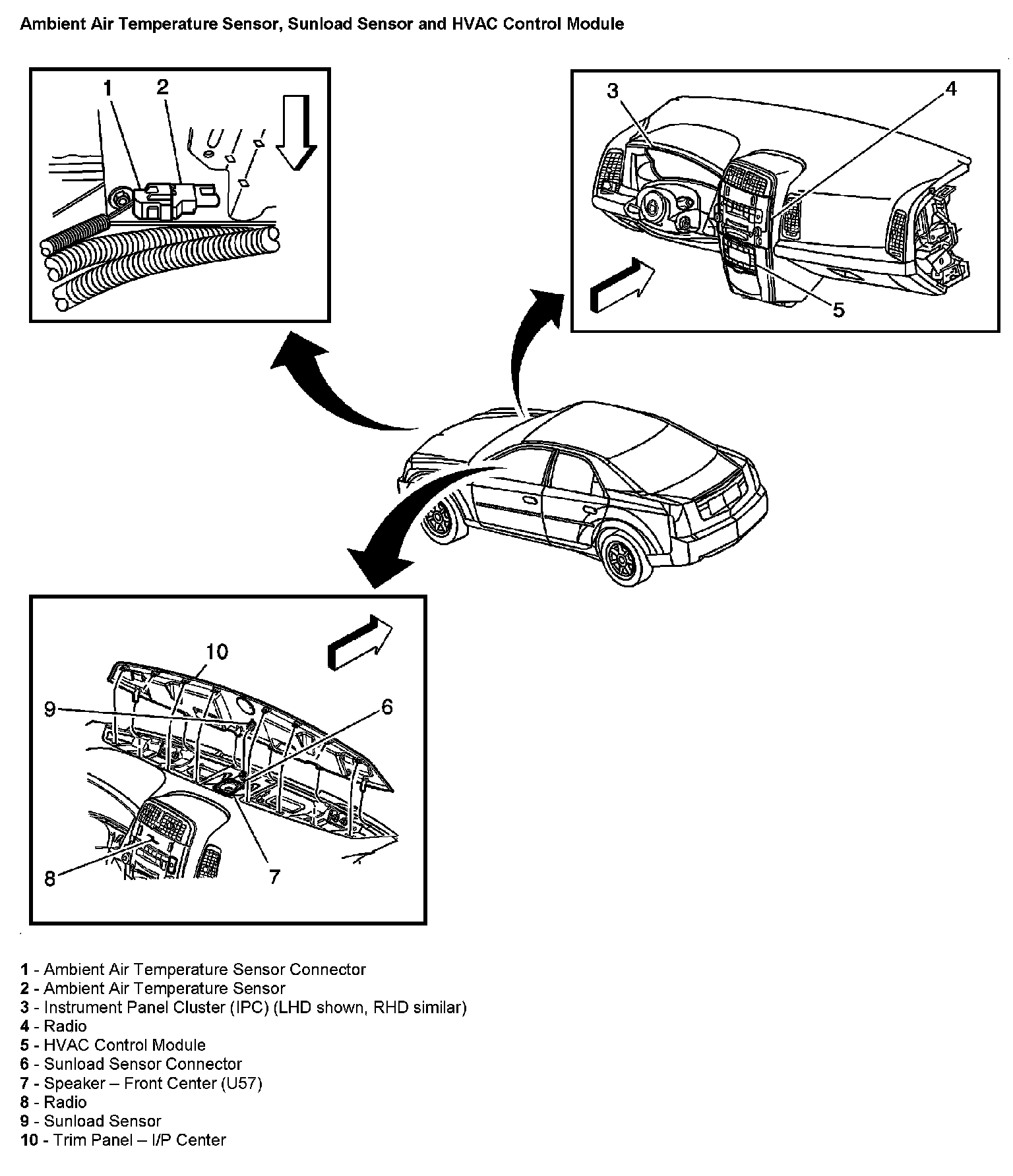

Ambient Air Temperature Sensor, Sunload Sensor And HVAC Control Module:
