Door Lock Switch Replacement

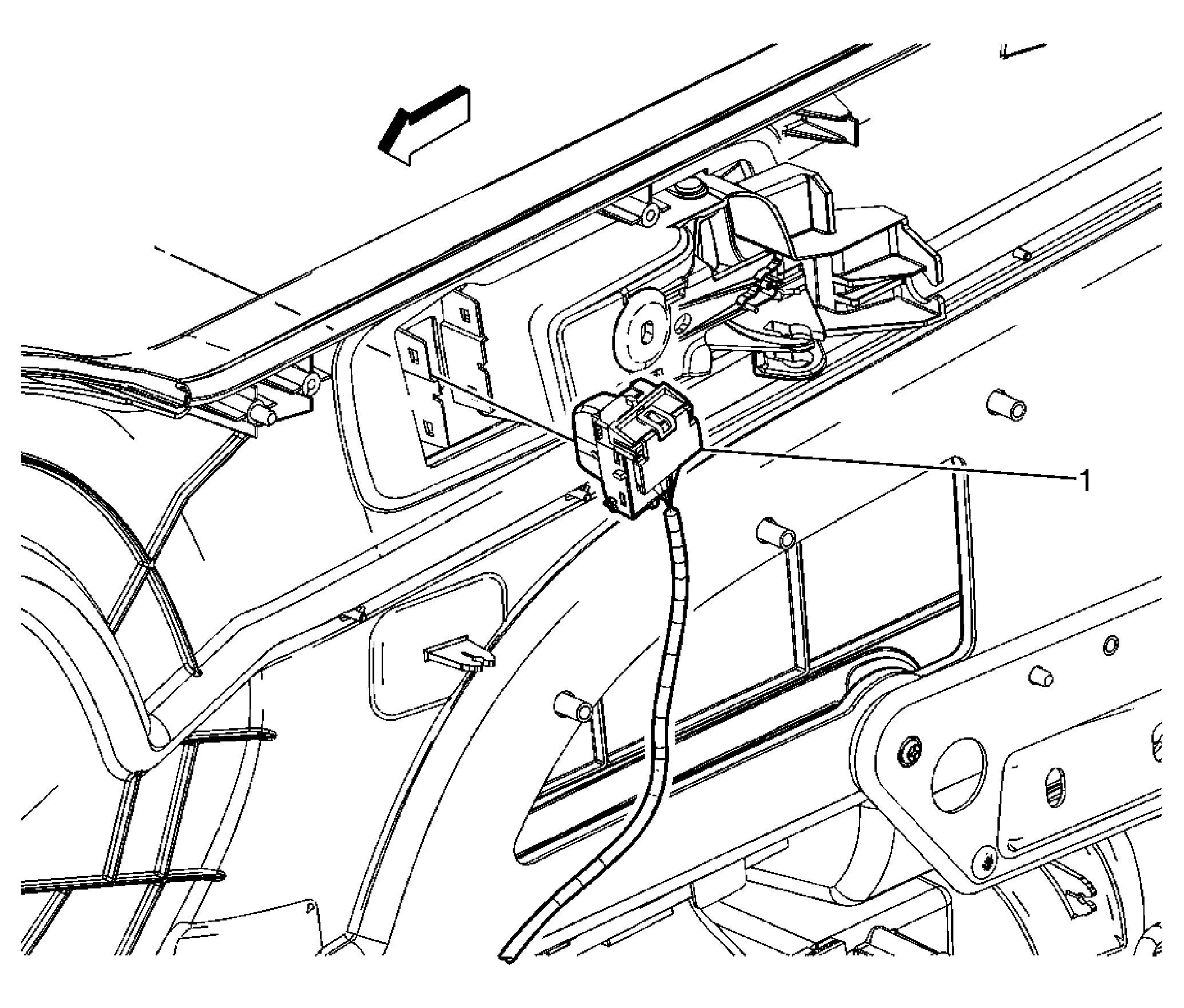

Fig 1: Door Lock Switch Replacement
GM1797857Courtesy of GENERAL MOTORS CORP.
Door Lock Switch Replacement

Callout Component Name
Preliminary Procedure:
Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Front Side Door Locking System Switch Assembly
Tip:
  1. Disconnect electrical connector.
  2. Use a flat-bladed tool to pry switch from door handle assembly.
