Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

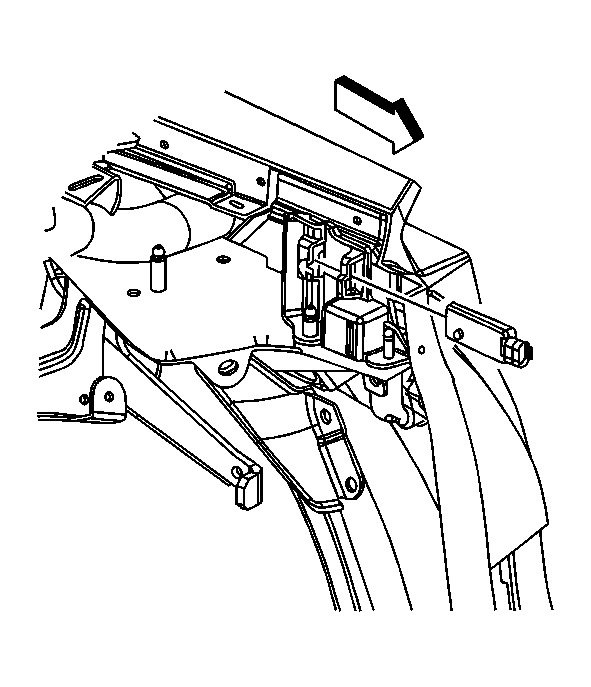

    Fig 1: View Of Ignition Lock Antenna & Bracket
    GM1231045Courtesy of GENERAL MOTORS CORP.
  1. Push on the antenna to engage the antenna to the retaining bracket.
  2. Connect the antenna wire lead to the antenna.
  3. Install the rear window trim panel. Refer to Rear Window Panel Trim Replacement .
  4. Install the left lock pillar trim. Refer to Body Lock Pillar Trim Panel Replacement .
