Window Switch Connector End View - Left Rear

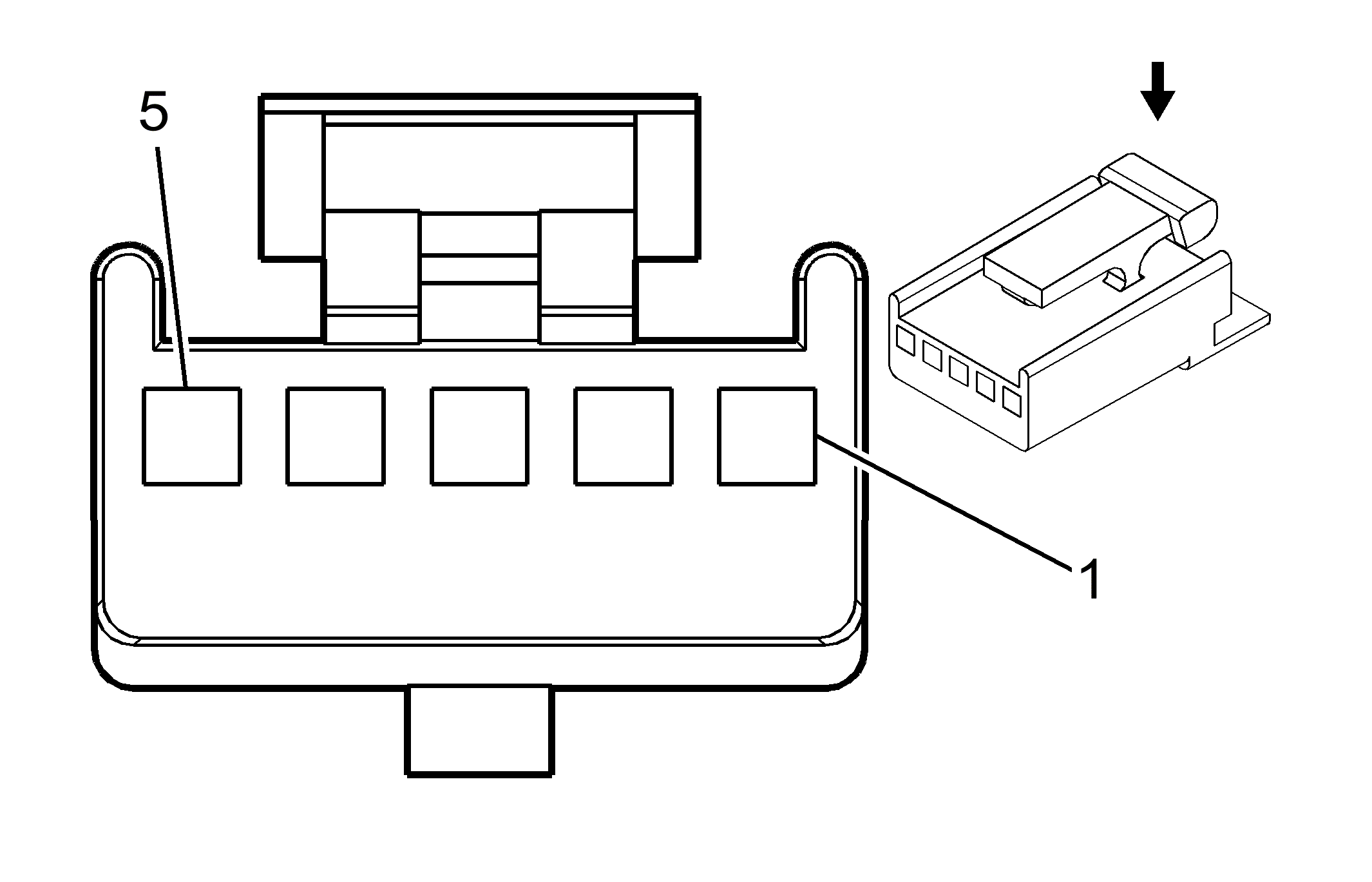

Fig 1: Window Switch - Left Rear Connector
GM258172Courtesy of GENERAL MOTORS CORP.
Power Door Systems Connector End Views

Connector Part Information
  • OEM: 12064982
  • Service: 12102633
  • Description: 5-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Pins: 1, 2, 3, 4
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 5
  • Terminal/Tray: 12146447/3
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)
Window Switch - Left Rear

Pin Wire Color Circuit No. Function
1 YE 1187 Power Window Switch Left Rear Down Signal
2 D-GN 1184 Power Window Switch Right Front Up Signal
3 D-GN 5048 Power Window Switch Left Rear Express Signal
4 BK/WH 351 Ground
5 YE 1491 Backlight Lamp Control
