Power Door Systems Component Views

Fig 1: Driver Door Components View

GM1488581

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Door Switch Assembly (DDSA)
2	Door Lock Switch - Driver
3	Mirror Switches
4	Outside Rearview Mirror - Driver
5	Window Motor - Driver
6	Driver Door Module (DDM)
7	Courtesy Lamp - Left Front Door
8	Rear Compartment Lid Release Switch - Interior
9	Door Latch Assembly - Driver
10	Door Status Indicator - Driver

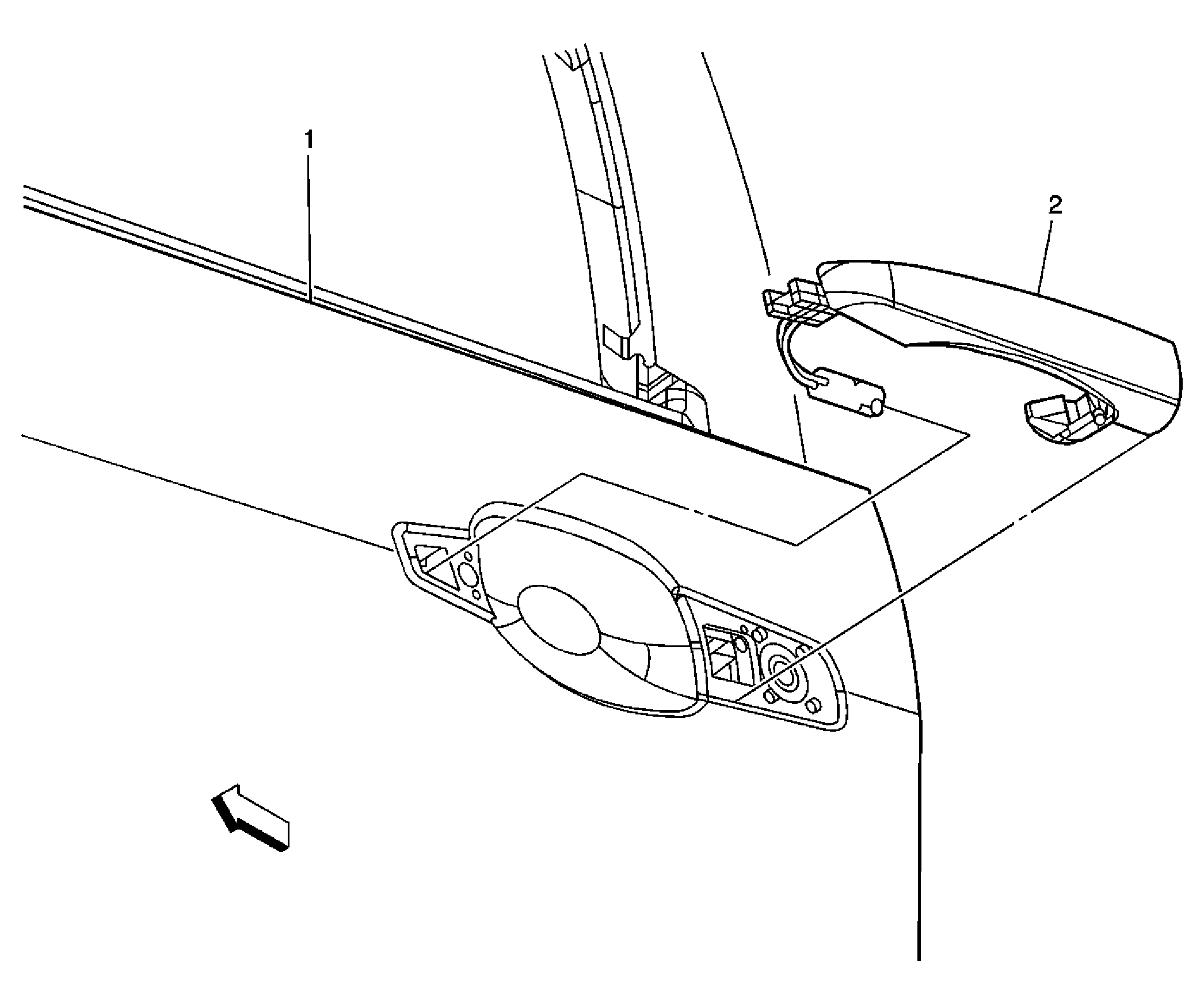

Fig 2: Door Handle Switch Assembly

GM1530206

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outer Door Panel
2	Door Handle Switch Assembly - LF, RF Similar

Fig 3: Front Passenger Door Components View

GM1488582

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror - Passenger
2	Window Switch - Front Passenger
3	Door Status Indicator - Passenger
4	Door Latch Assembly - Passenger
5	Courtesy Lamp - Right Front Door
6	Front Passenger Door Module (FPDM)
7	Speaker - LF Door (UXP/UY5)
8	Window Motor - Front Passenger
9	Door Lock Switch - Passenger

Fig 4: LR Door Components View

GM1488580

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - Left Rear
2	Window Switch - Left Rear
3	Speaker - LR Door
4	Courtesy Lamp - Left Rear Door
5	Left Rear Door Module
6	Window Motor - Left Rear

Fig 5: RR Door Components View

GM1488575

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Right Rear
2	Door Latch Assembly - Right Rear
3	Right Rear Door Module (RRDM)
4	Courtesy Lamp - Right Rear Door
5	Speaker - RR Door
6	Window Motor - Right Rear
