Installation Procedure

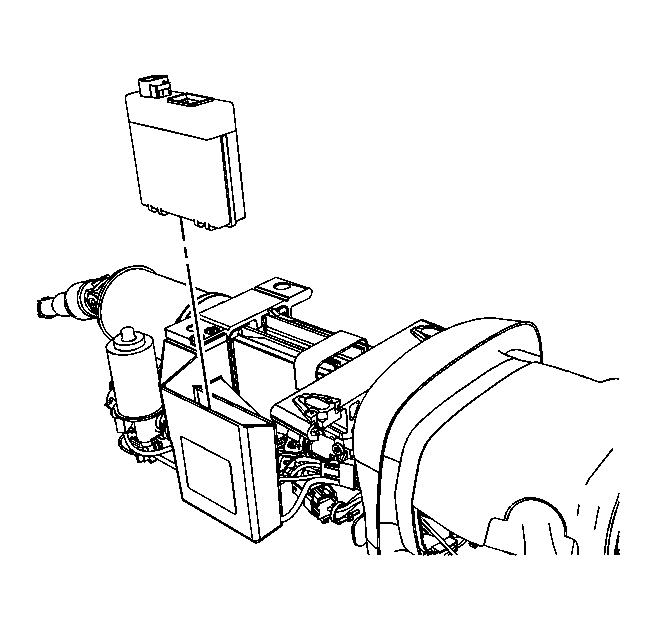

    Fig 1: Steering Column Lock Control Module
    GM1824755Courtesy of GENERAL MOTORS CORP.
  1. Install the steering column lock control module to the support bracket.

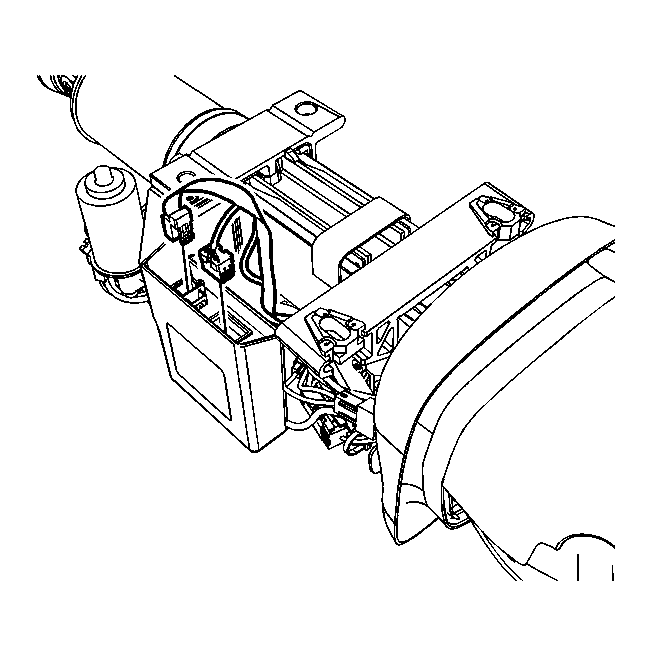

    2. Fig 2: Steering Column Lock Control Module
    GM1824744Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the steering column lock control module.
  3. Install the steering column. Refer to Steering Column Replacement .
  4. Program the steering column control module. Refer to Steering Column Lock Control Module Programming and Setup .
