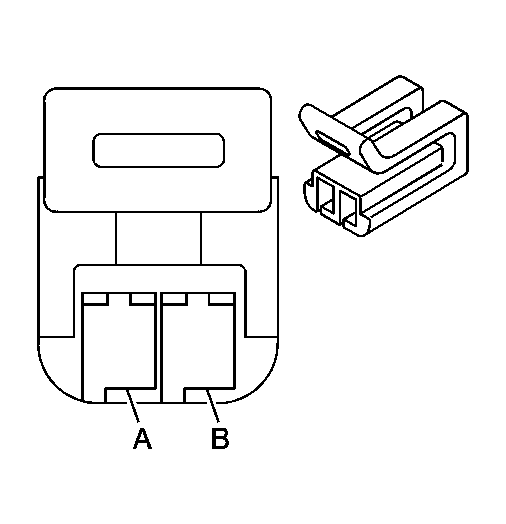

Output Speed Sensor Connector End View, Wiring Harness Side

Fig 1: Output Speed Sensor, Wiring Harness Side Connector

Courtesy of GENERAL MOTORS CORP.

Automatic Transmission Internal Connector End Views

Connector Part Information  OEM: 12162201 Service: See Catalog Description: 2-Way F Metri-Pack 150.2 Series P2S (NA)

Output Speed Sensor, Wiring Harness Side

Pin	Wire Color	Circuit No.	Function
A	OG	400	Output Speed Sensor (OSS) High Signal
B	WH	401	OSS Low Signal
