Vehicle Communication Interface Module (VCIM) Connector End View C3

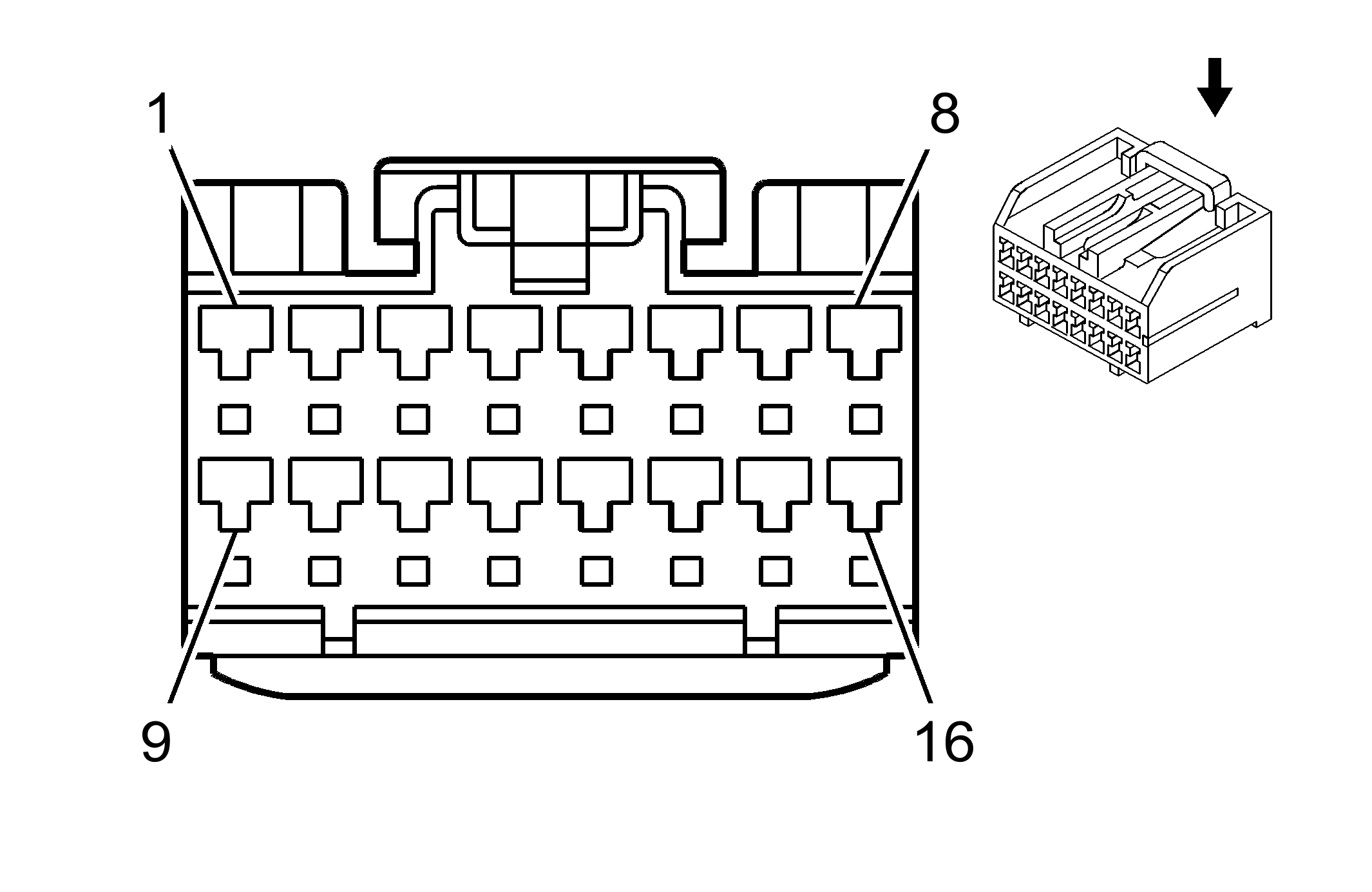

Fig 1: VCIM C3 Connector

Courtesy of GENERAL MOTORS CORP.

Cellular Communication Connector End Views

Connector Part Information  OEM: 917983-2 Service: 88986322 Description: 16-Way M MKII Hybrid (BK)

Terminal Part Information  Pins: 2, 4, 5 Terminal/Tray: 175266-5/15 Core/Insulation Crimp: Pins 2, 4 - J/J Core/Insulation Crimp: Pins 5 - K/K Release Tool/Test Probe: 15315247/J-35616-16 (L-GN)

Vehicle Communication Interface Module (VCIM) C3

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	PK	5149	Voice Recognition Audio Signal (UE1)
3	-	-	Not Used
4	PK/BK	5152	Voice Recognition Audio Low Reference (UE1)
5	BARE	1792	Drain Wire (UE1)
6-16	-	-	Not Used
