Generator Connector End View

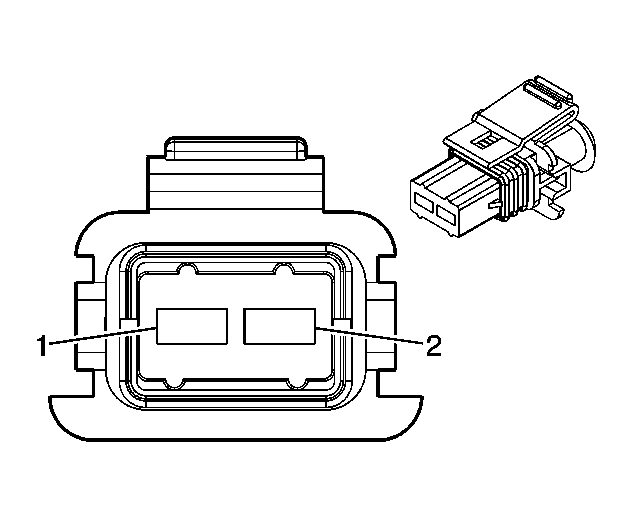

Fig 1: Generator Connector
GM1283861Courtesy of GENERAL MOTORS CORP.
Engine Electrical Connector End Views

Connector Part Information
  • OEM: 1928403137
  • Service: 89046837
  • Description: 2-Way F Bosch (BK)
Terminal Part Information
  • Terminal/Tray: 4-964286-1/16
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12093647/J-35616-4A (PU)
Generator

Pin Wire Color Circuit No. Function
1 OG 225 Generator Turn On Signal
2 GY 23 Generator Field Duty Cycle Signal
