Data Communication Component Views (LHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

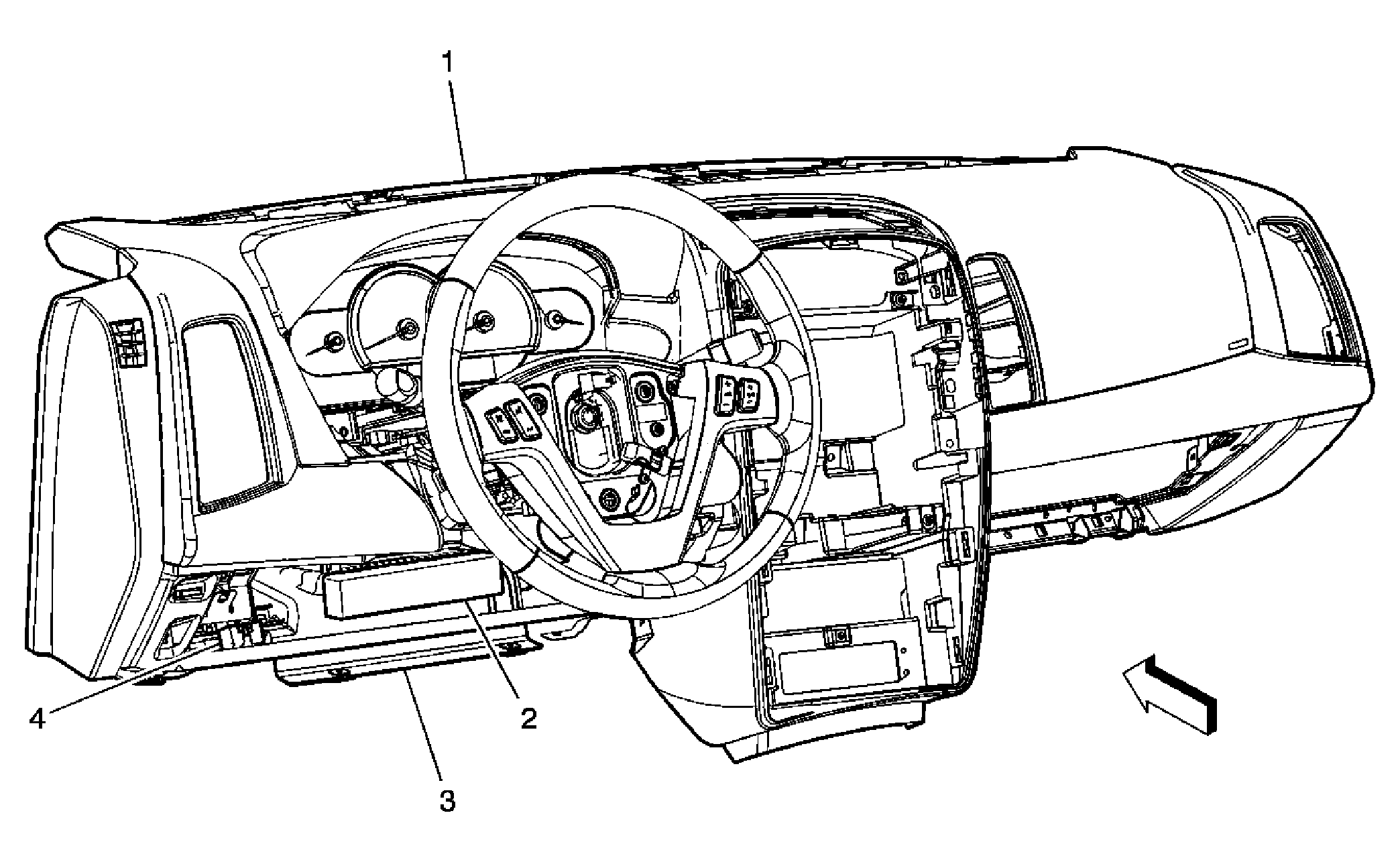

Fig 1: Lower Left Side Of I/P Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	Body Control Module (BCM)
3	Insulator
4	Data Link Connector (DLC)

Fig 2: Right Rear of Cargo Compartment (Export) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna Module-Right
2	Rear Window Antenna Assembly-Right
3	Digital Radio Receiver (U2K)
4	Rear Body Control Module (RBCM)
5	Theft Deterrent Alarm Siren (UA6)

Fig 3: Body Harness Routing - Right Rear Cargo Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C308
2	C401
3	C310
4	Terminator Resistor
5	G401
6	Digital Radio Receiver (U2K)
7	Vehicle Communication Interface Module (VCIM) - (UE1)
8	Speaker - Rear Subwoofer
9	C311
10	Electronic Suspension Control (ESC) Module (F55)
11	Splice Pack SP304
12	C314
13	C316
