Data Communication Component Views (RHD)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Instrument Panel And Floor Console Component Views
GM1860841Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inflatable Restraint I/P Module
2 Analog Clock
3 Sunload/Ambient Light Sensor
4 Speaker - Front Midrange (UQS)
5 Turn Signal/Multifunction Switch
6 Instrument Panel Cluster (IPC)
7 Inflatable Restraint Steering Wheel Module
8 Windshield Wiper/Washer Switch
9 Dimmer Switch
10 Driver Information Center (DIC) Switch
11 Data Link Connector (DLC)
12 Courtesy Lamp - Right Footwell
13 HVAC Control Module
14 Inside Air Temperature Sensor
15 Traction Control Switch
16 Cigar Lighter
17 Inflatable Restraint I/P Module Indicator
18 Auxiliary Power Outlet - Center Console 1
19 Auxiliary Power Outlet - Center Console 2 (UQS)
20 Speaker - Center Console (UQS)
21 Rear Video Display (U42)
22 Tow/Haul Switch
23 Hazard Switch
24 Rear Window Defogger Switch
25 Courtesy Lamp - Right Footwell
26 Radio/CD/DVD/Navigation Unit

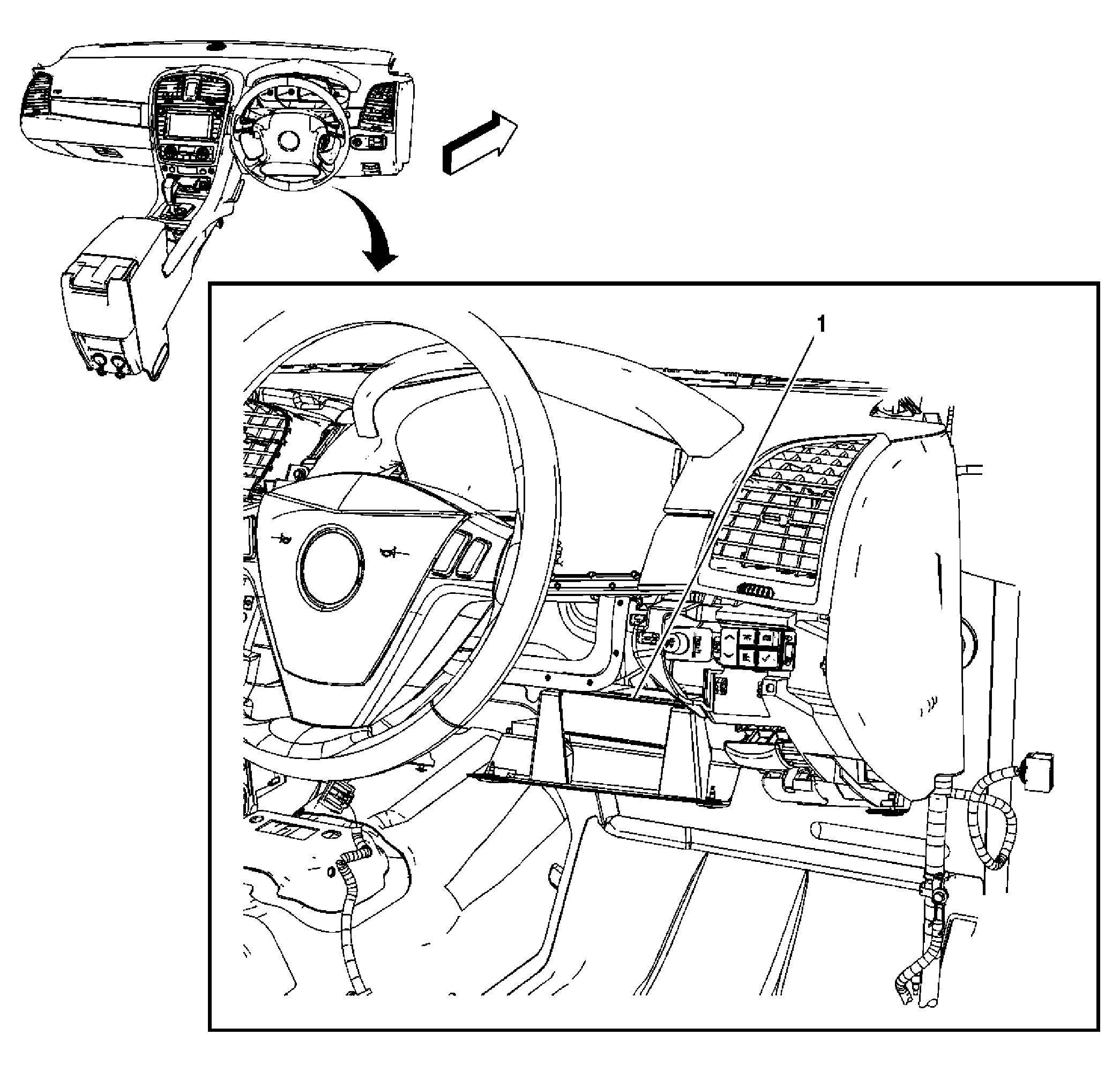

Fig 2: Body Control Module (BCM) Component Views
GM1856012Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)

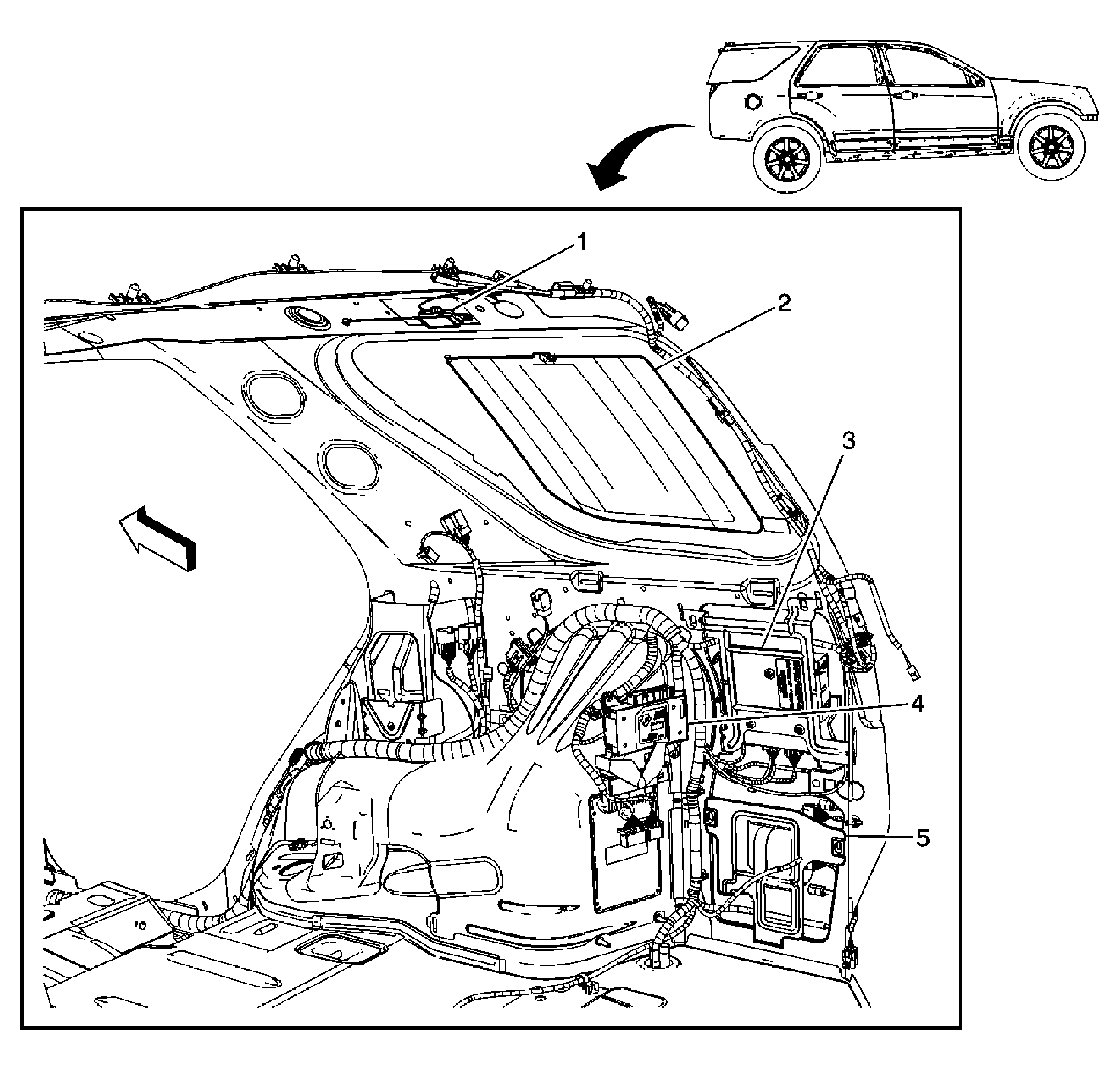

Fig 3: Right Rear of Cargo Compartment (Export) Component Views
GM1842137Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Antenna Module-Right
2 Rear Window Antenna Assembly-Right
3 Digital Radio Receiver (U2K)
4 Rear Body Control Module (RBCM)
5 Theft Deterrent Alarm Siren (UA6)

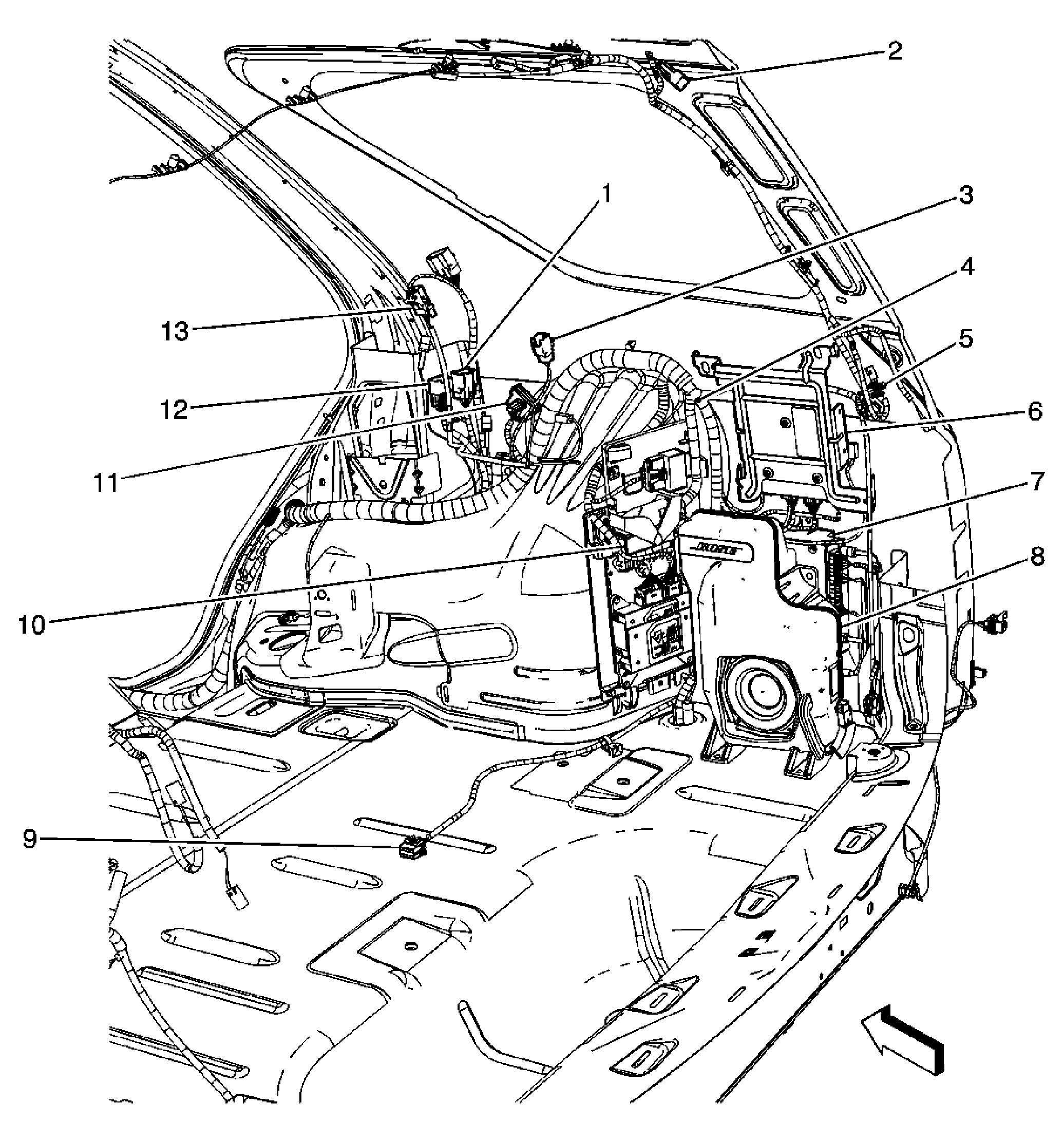

Fig 4: Body Harness Routing - Right Rear Cargo Area Component Views
GM1827955Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C308
2 C401
3 C310
4 Terminator Resistor
5 G401
6 Digital Radio Receiver (U2K)
7 Vehicle Communication Interface Module (VCIM) - (UE1)
8 Speaker - Rear Subwoofer
9 C311
10 Electronic Suspension Control (ESC) Module (F55)
11 Splice Pack SP304
12 C314
13 C316
