Rear Integration Module (RIM) C1

WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

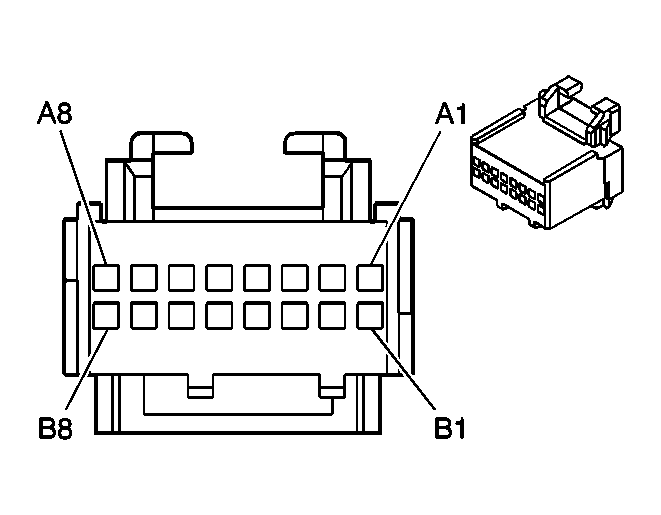

Fig 1: Rear Integration Module (RIM) C1 Connector End Views

Courtesy of GENERAL MOTORS CORP.

Rear Integration Module (RIM) C1 Connector & Terminal Parts Information

Connector Part Information

OEM: 12092632
Service: 88988811
Description: 16-Way F Micro-Pack 100 Series (RD)

Terminal Part Information

Pins: B5
Terminal/Tray: 12146448/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Pins: B5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Pins: A1, A2, A3, A4, A5, A6, A7, A8, B1, B2, B3, B5, B8
Terminal/Tray: 12146447/3
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)

Rear Integration Module (RIM) C1 Terminal Identification

Pin	Wire Color	Circuit No.	Function
A1	L-BU	5362	Inclination Sensor Signal (Export w/UA2)
A2	BN/WH	1571	Traction Control Switch Signal
A3	D-BU	2181	Passenger Heated Seat Control Module Status Signal (KA1)
A4	PK	1339	Ignition 1 Voltage
A5	D-BU/WH	149	Courtesy Lamp Supply Voltage
A6	WH	111	Theft Deterrent Alarm Enable Signal (Export w/UA2)
A7	L-BU/WH	181	Heated Seat Control Module Status Signal (KA1)
A8	BK/WH	1051	Ground
B1	PU	5059	Intrusion Sensor Alarm On Signal (Export w/UA2/UA6)
B2	GY	5054	Sport Mode Switch Signal (M82)
B3	OG/BK	744	Rear Compartment Lid Ajar Switch Signal
B4	-	-	Not Used
B5	L-GN	5007	Backup Lamp Switch Signal (MV1)
B5	L-GN	5053	Winter Mode Switch Signal (M82)
B6-B7	-	-	Not Used
B8	BK/WH	1051	Ground
