Removal Procedure
WARNING: This page is about a different car, the 2007 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

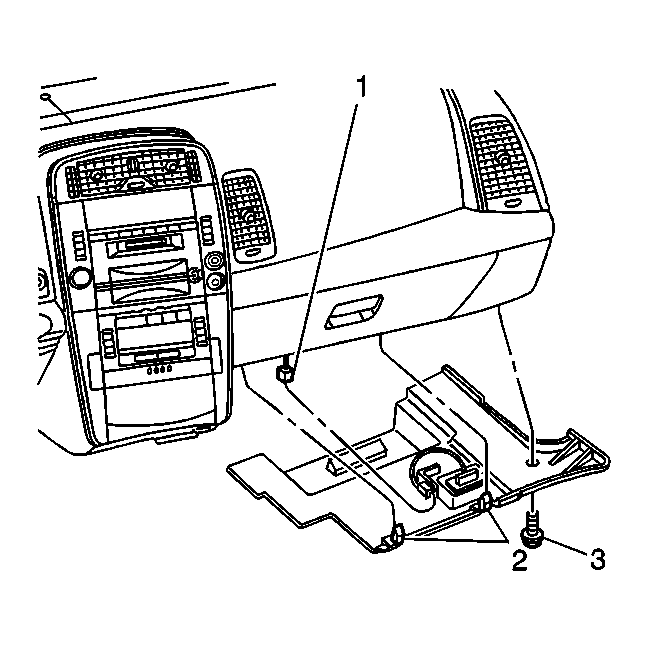

- Remove the instrument panel (I/P) closeout panel. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
- Disconnect the closeout panel light electrical connector (1).
- Remove the screws securing the body control module (BCM) to the I/P.
- Disconnect the electrical connectors.
