Immobilizer Component Views

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

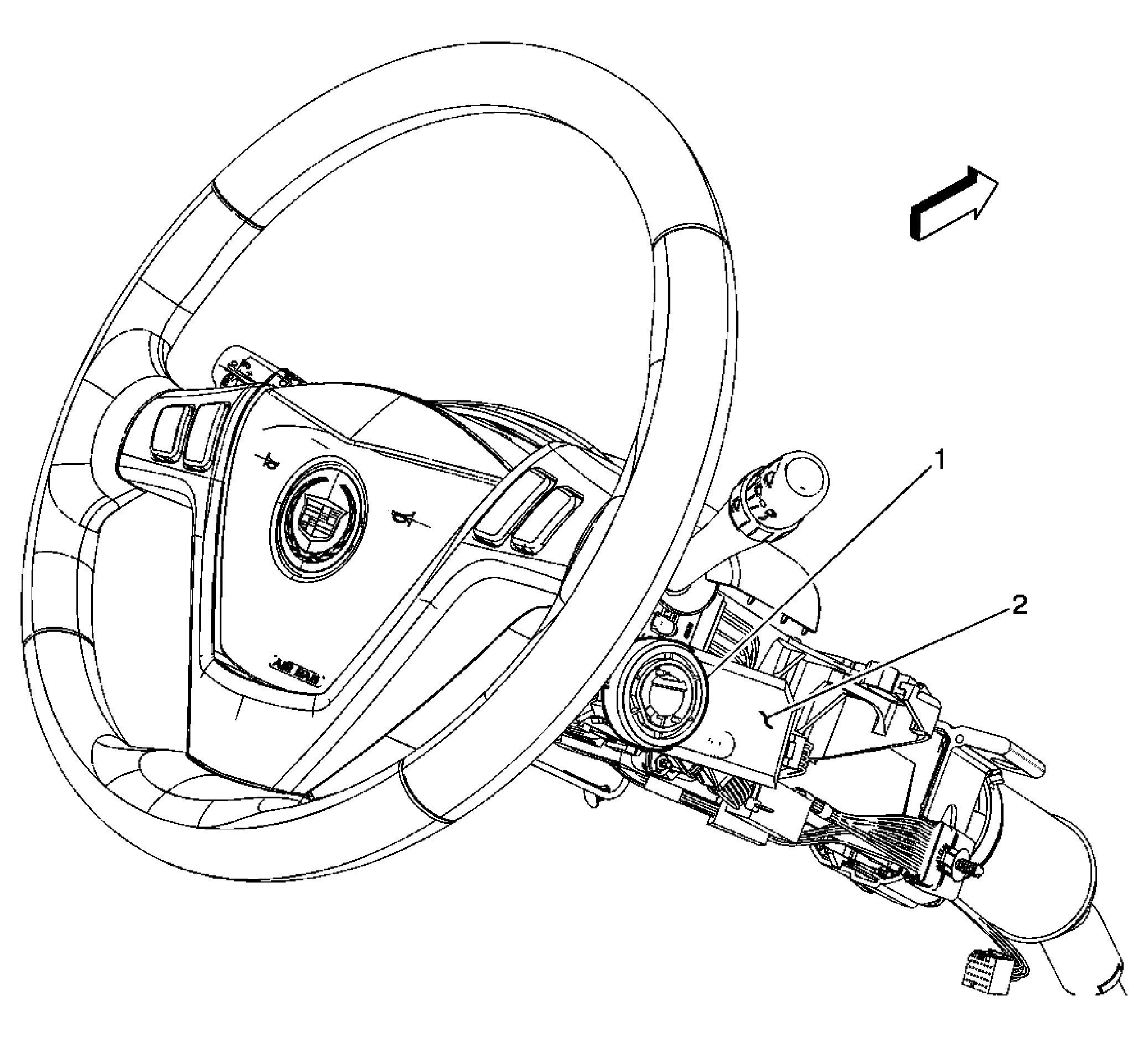

Fig 1: Steering Column Component Views
GM1842210Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Switch
2 Theft Deterrent Module (TDM)
