Easy Keyless Entry (ATH)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

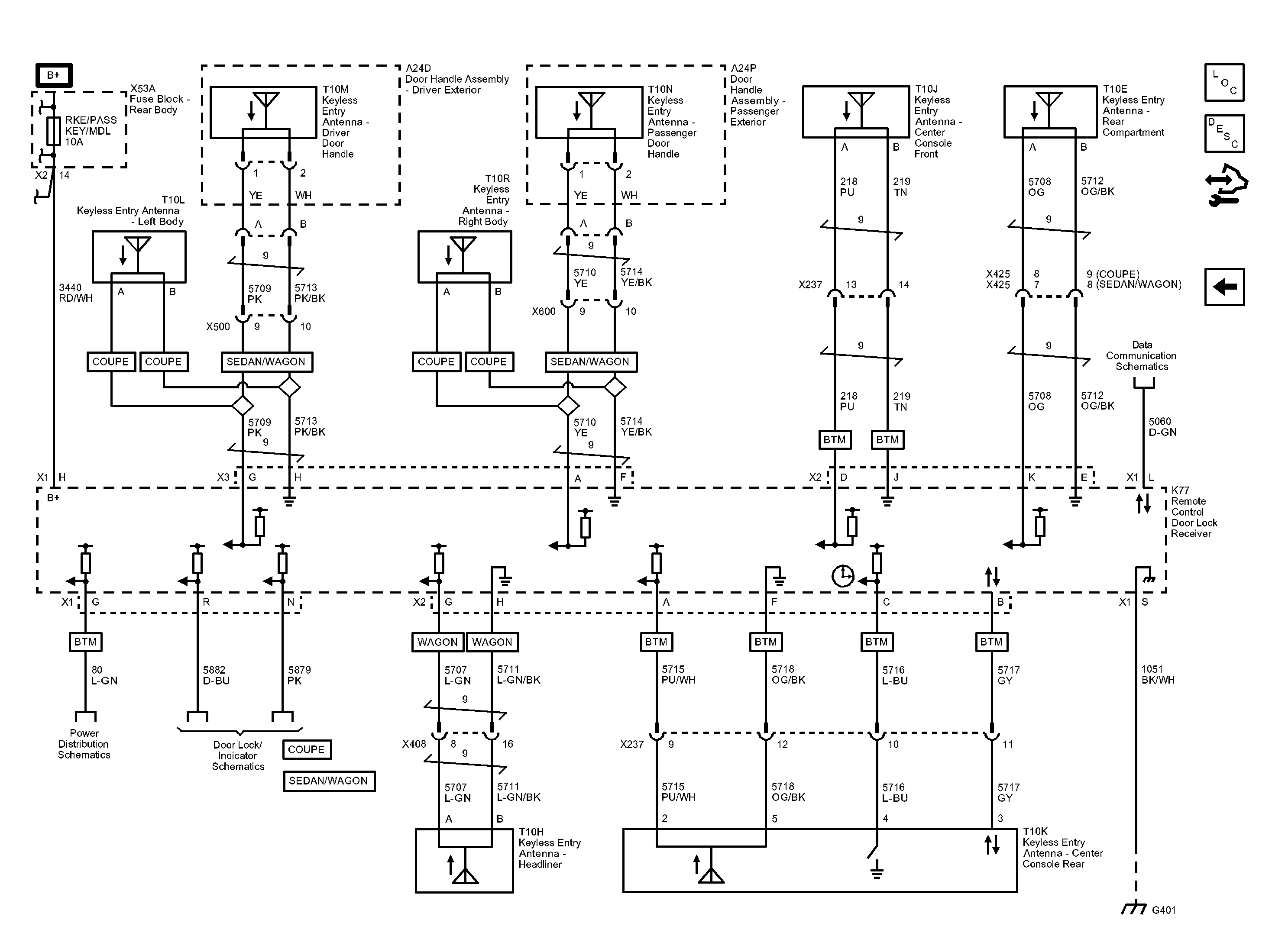

Fig 1: Easy Keyless Entry Wiring Schematic (ATH)
GM2779212Courtesy of GENERAL MOTORS COMPANY
