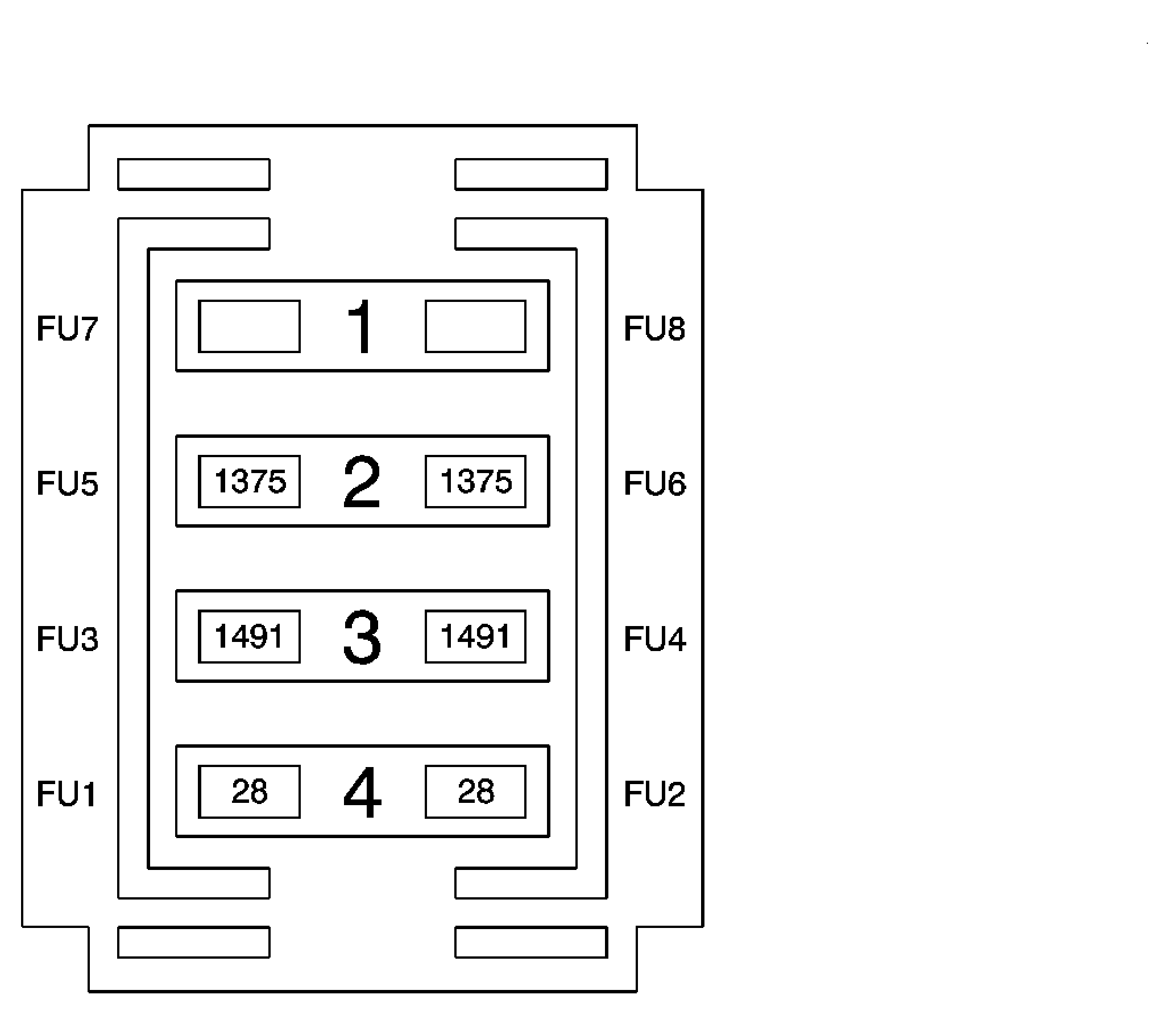

Fuse Block - Steering Column Fuse Box or Holder
Courtesy of GENERAL MOTORS CORP. Fuse Block - Inline Steering Column Usage
| No. |
Device |
Rating |
Description |
| 1 |
- |
- |
Not Used |
| 2 |
Instrument Panel Module |
2A |
Remote Radio Control Supply Voltage |
| 3 |
Backlight Lamps |
2A |
Backlight Lamps Control |
| 4 |
Horn |
2A |
Horn Relay Control |
