Ignition Control Module: Diagrams

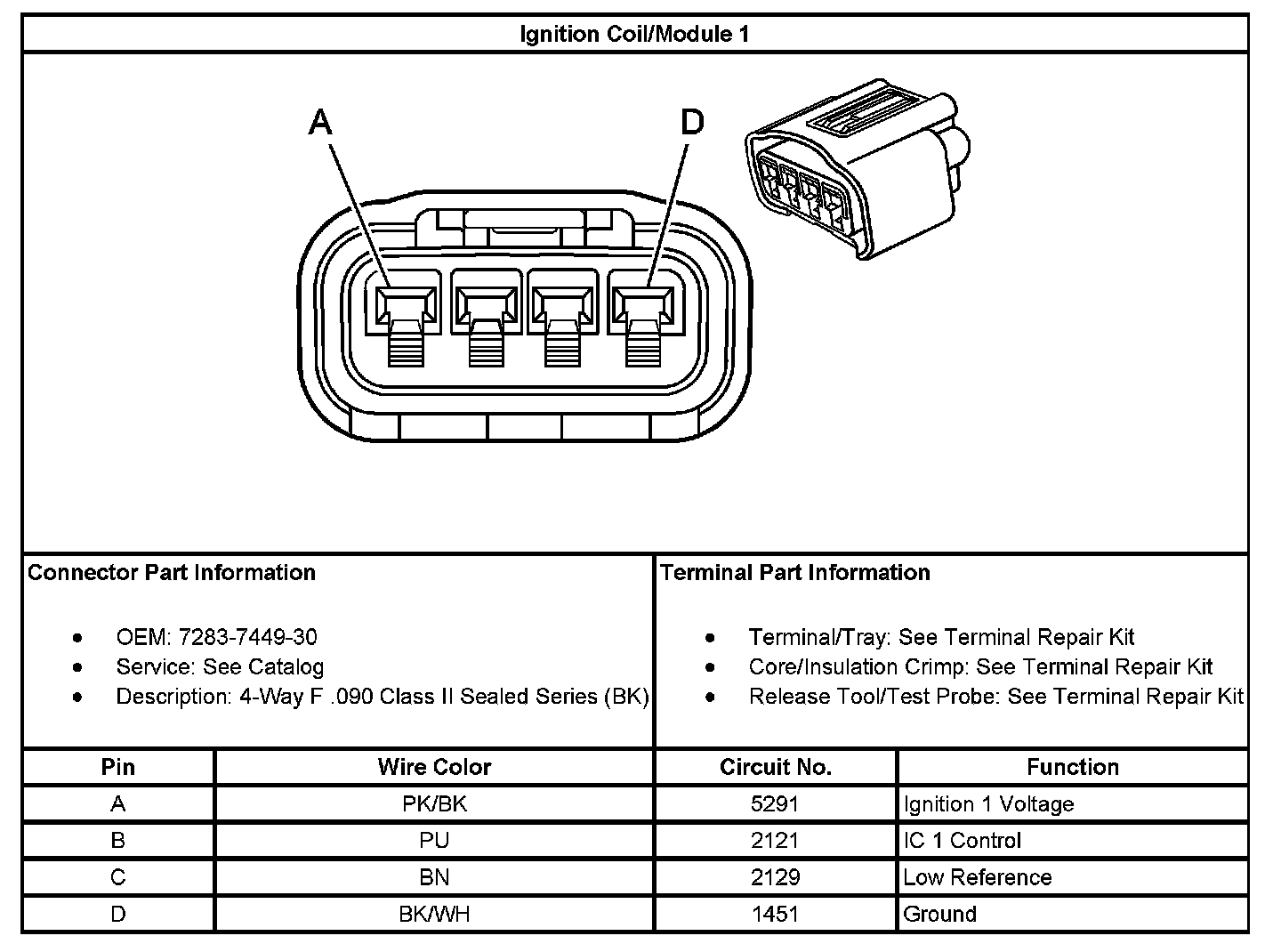

Ignition Coil/Module 1:

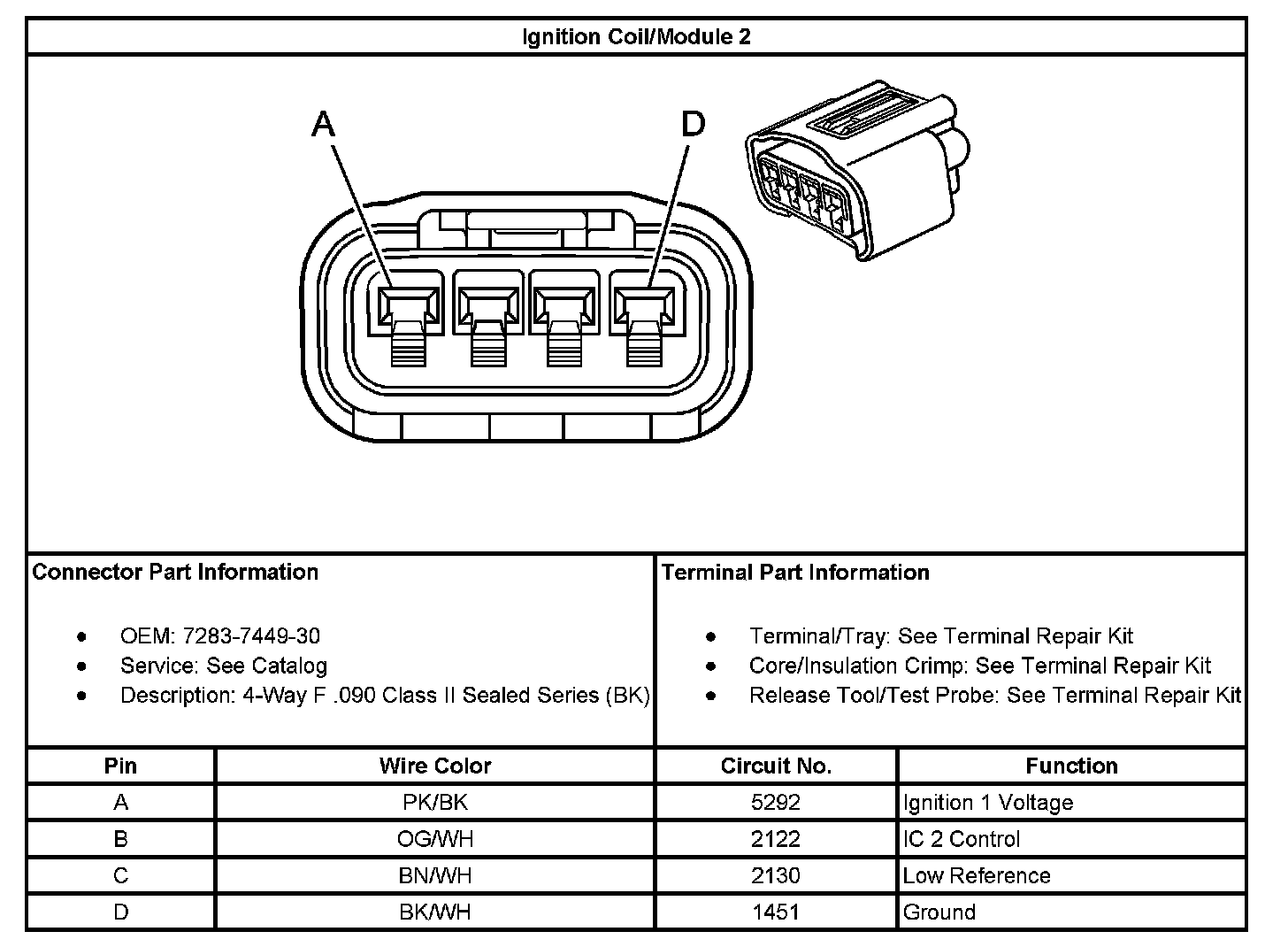

Ignition Coil/Module 2:




Ignition Coil/Module 3:

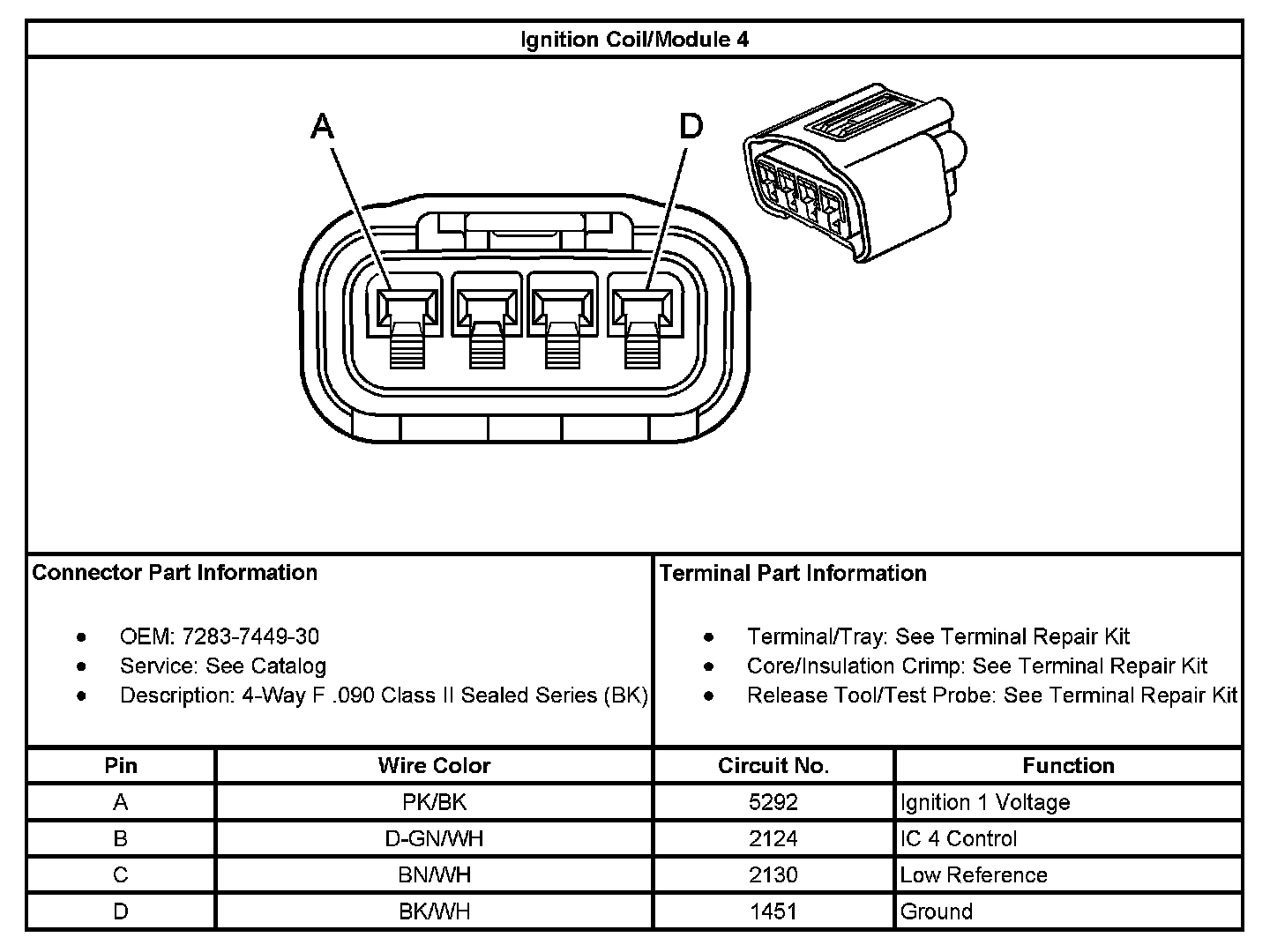

Ignition Coil/Module 4:




Ignition Coil/Module 5:




Ignition Coil/Module 6:




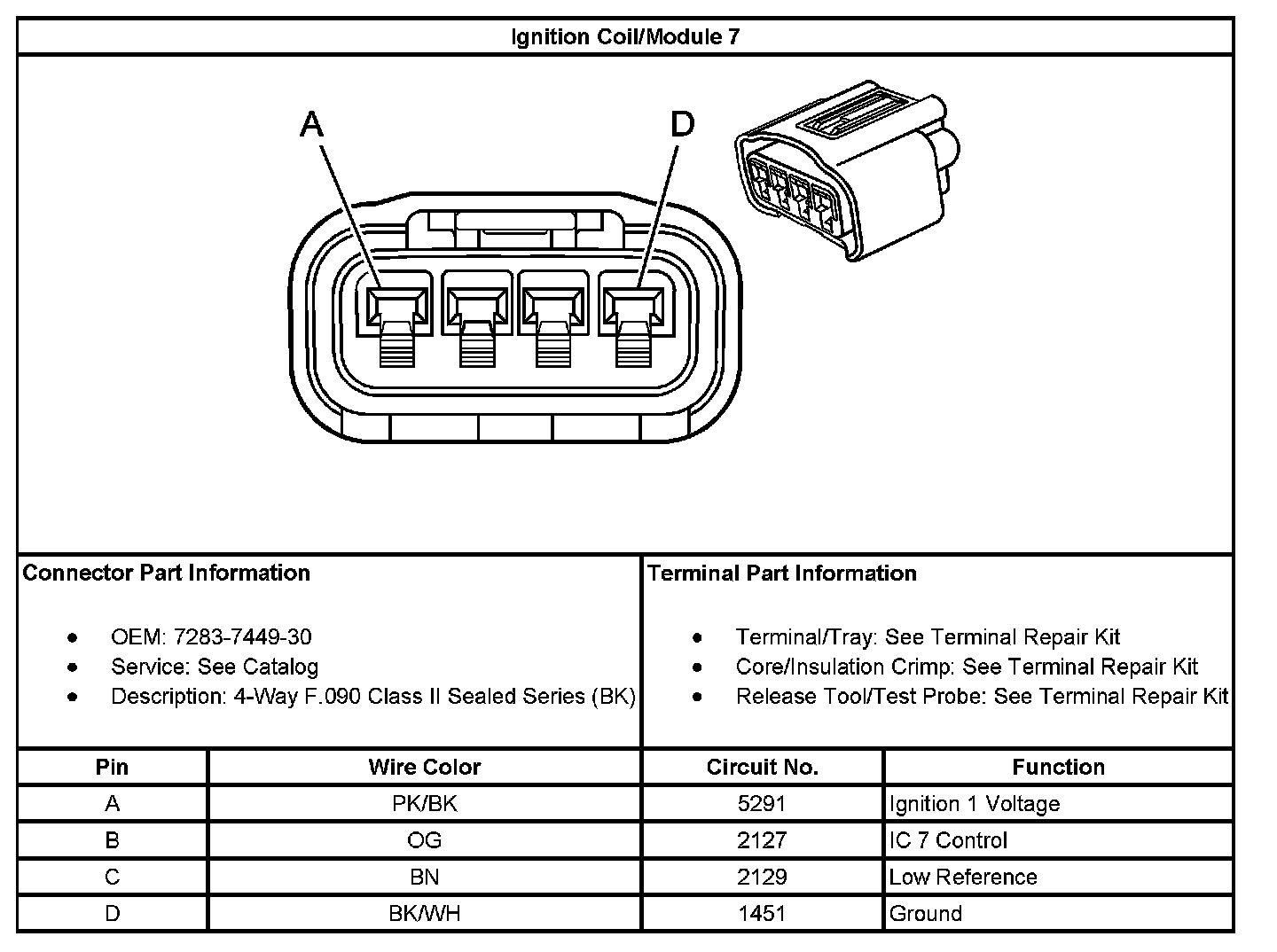

Ignition Coil/Module 6:

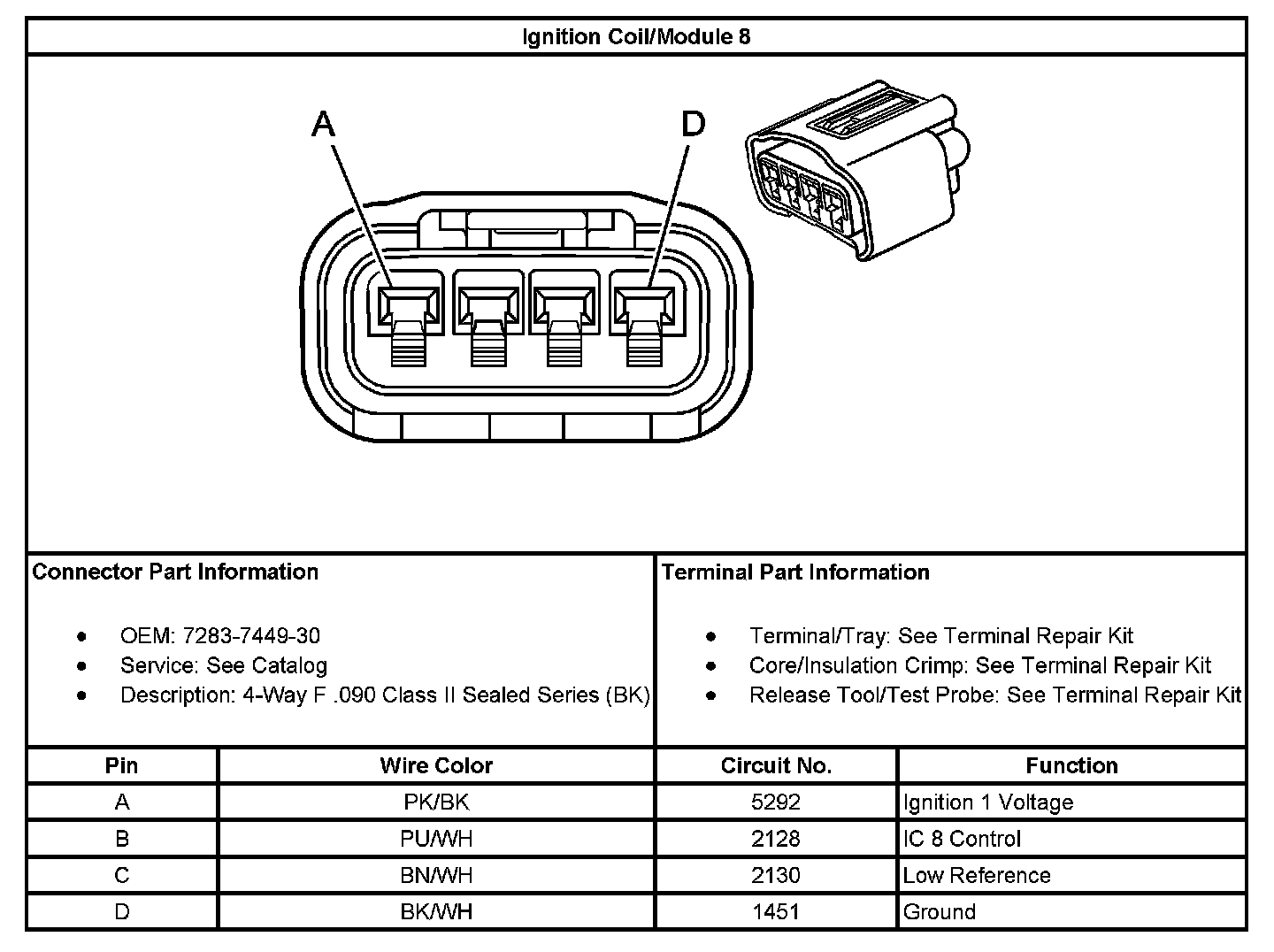

Ignition Coil/Module 8:
