Oil Pump, Engine

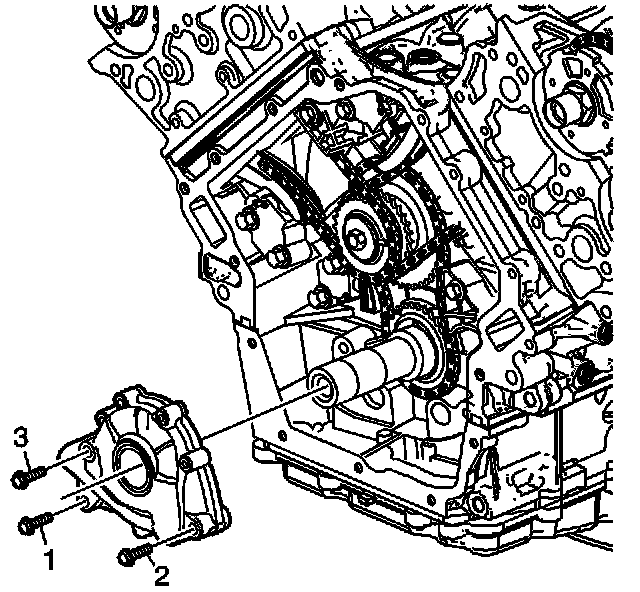

Oil Pump
Cover Bolt 12 Nm (106 inch lbs.)
Mounting Bolt
First Pass 10 Nm (89 inch lbs.)
Final Pass 35 degrees
