Body Control System Schematics

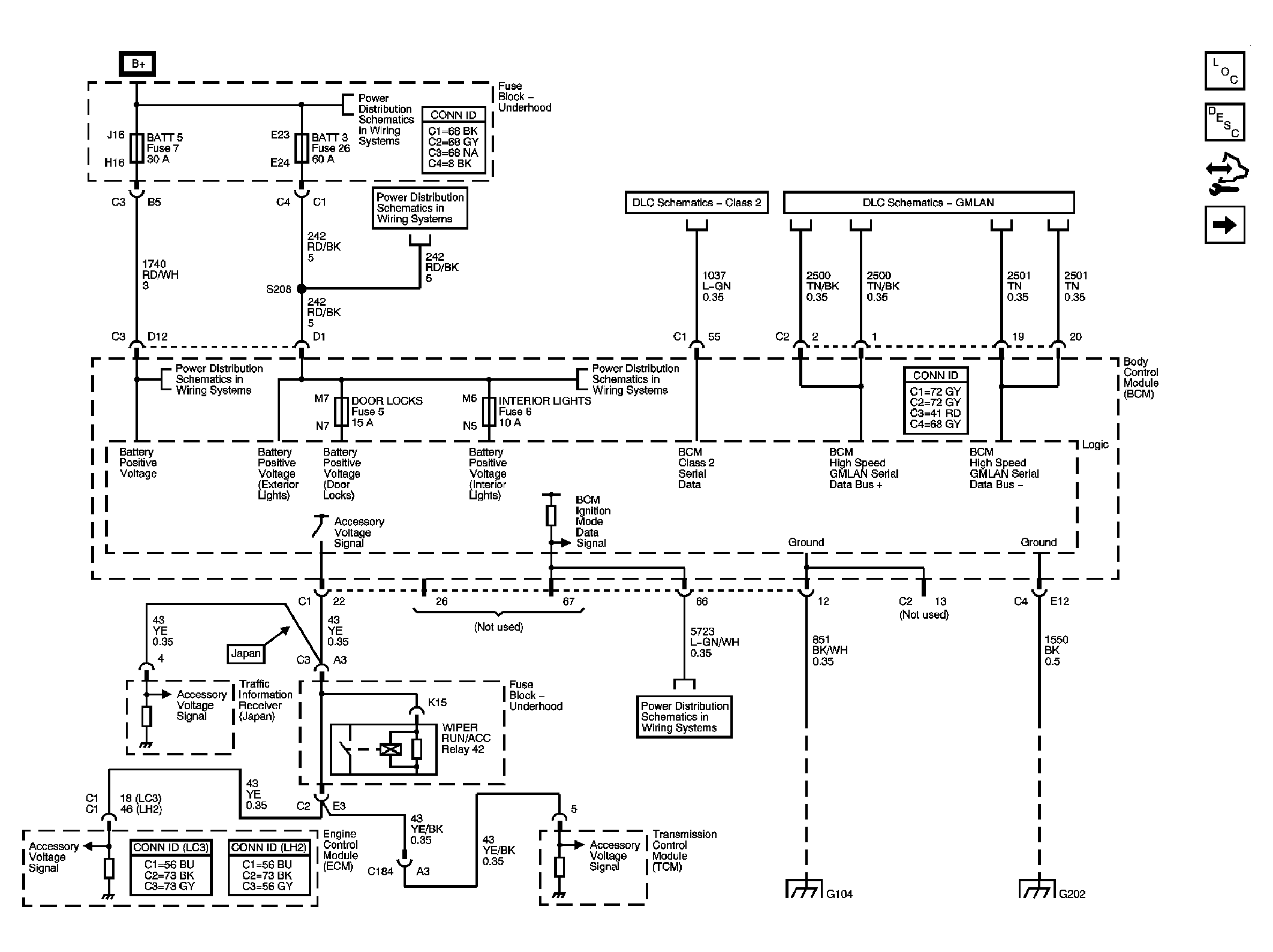

Fig 1: DLC, Ground and Power

Courtesy of GENERAL MOTORS CORP.

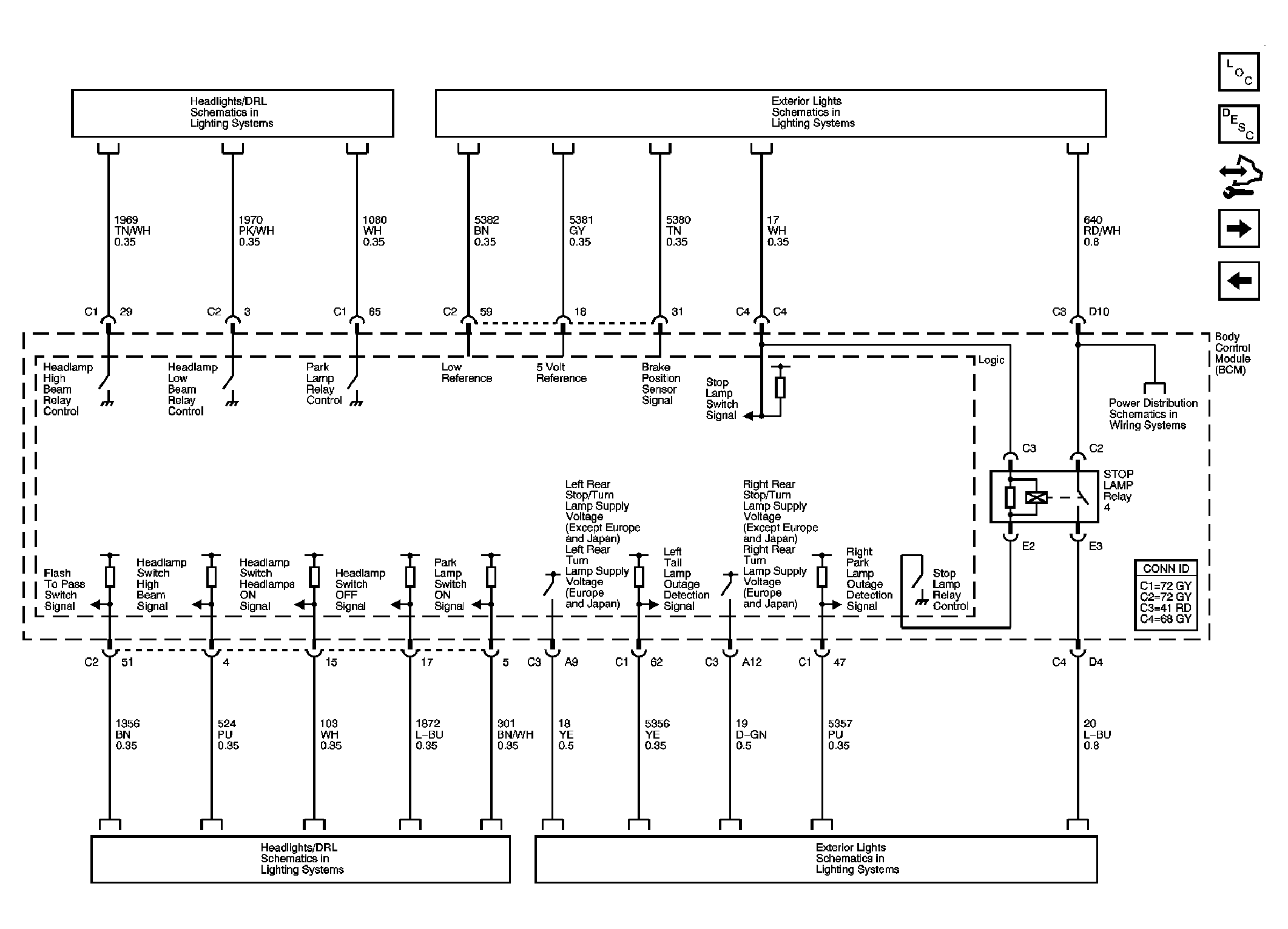

Fig 2: Lighting References 1 of 2

Courtesy of GENERAL MOTORS CORP.

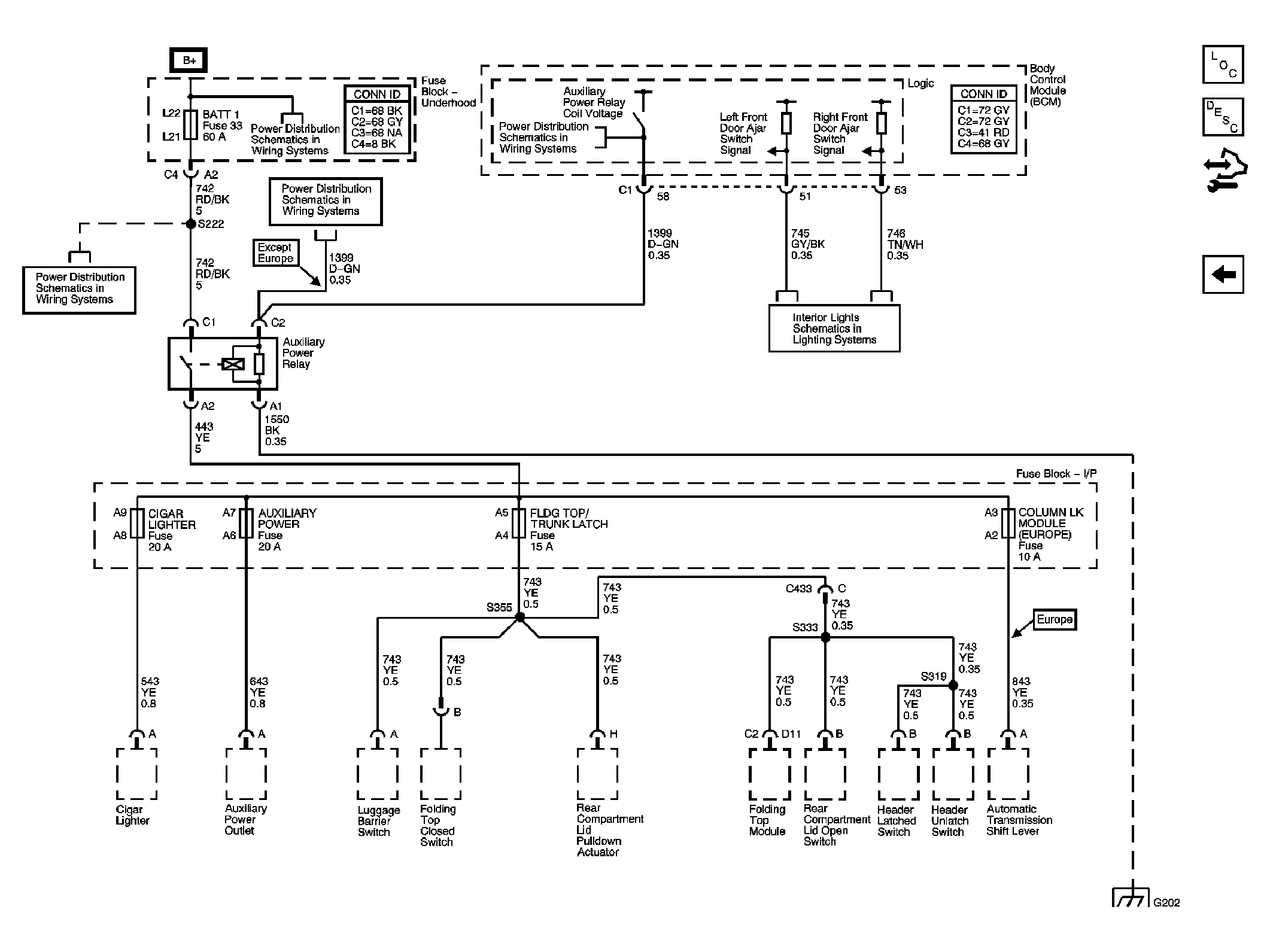

Fig 3: Lighting References 2 of 2

Courtesy of GENERAL MOTORS CORP.

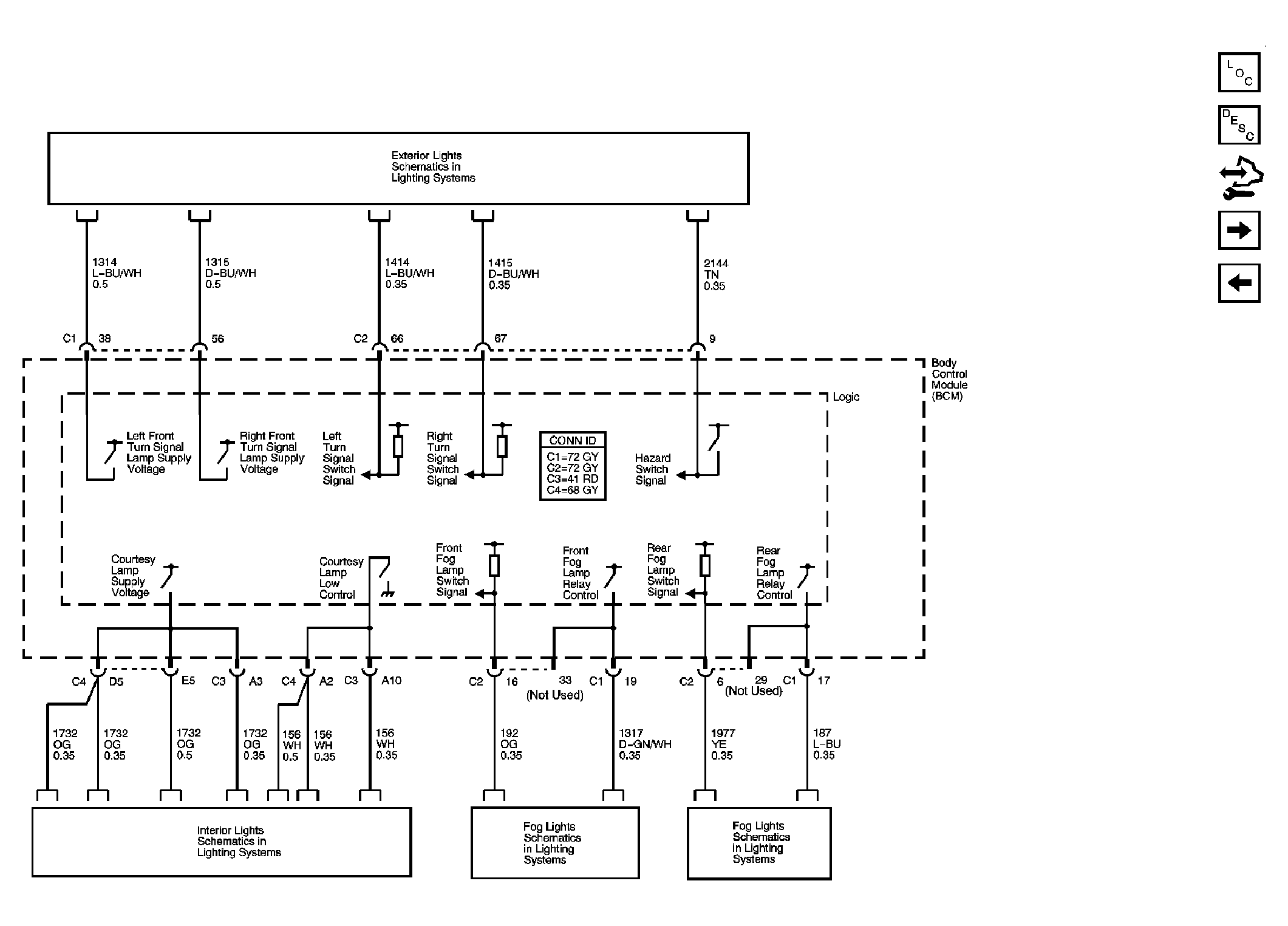

Fig 4: Subsystems References

Courtesy of GENERAL MOTORS CORP.

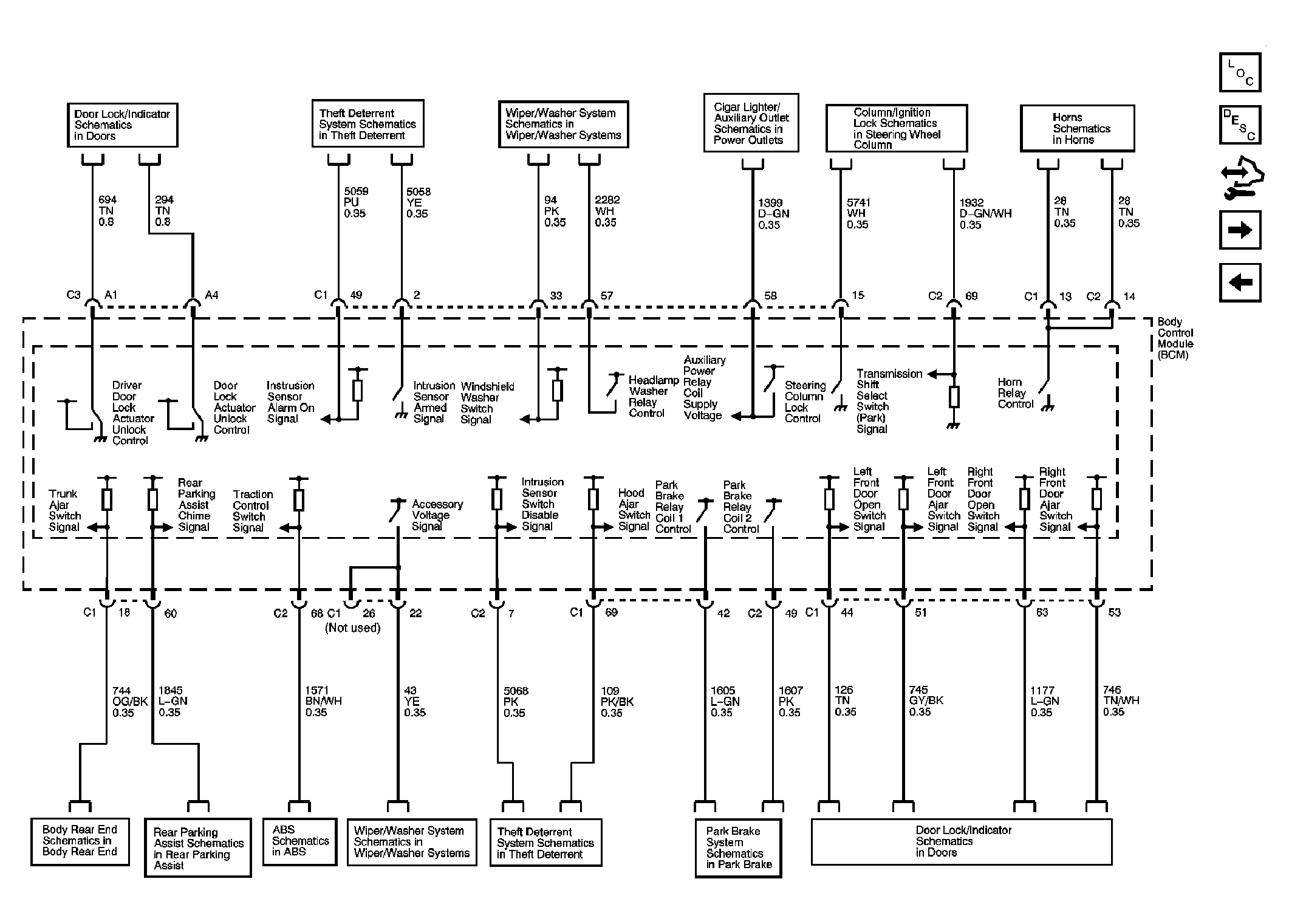

Fig 5: Auxiliary Power

Courtesy of GENERAL MOTORS CORP.
