Adjustable Pedals Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Adjustable Brake Pedal Position Sensor Connector |
| 2 |
Adjustable Pedal Motor |
| 3 |
Adjustable Accelerator Pedal Position Sensor |
| 4 |
Accelerator Pedal Position (APP) Sensor |
| 5 |
Adjustable Brake Pedal Position Sensor |
| 6 |
Emergency Brake Warning Light Switch |
Courtesy of GENERAL MOTORS CORP.

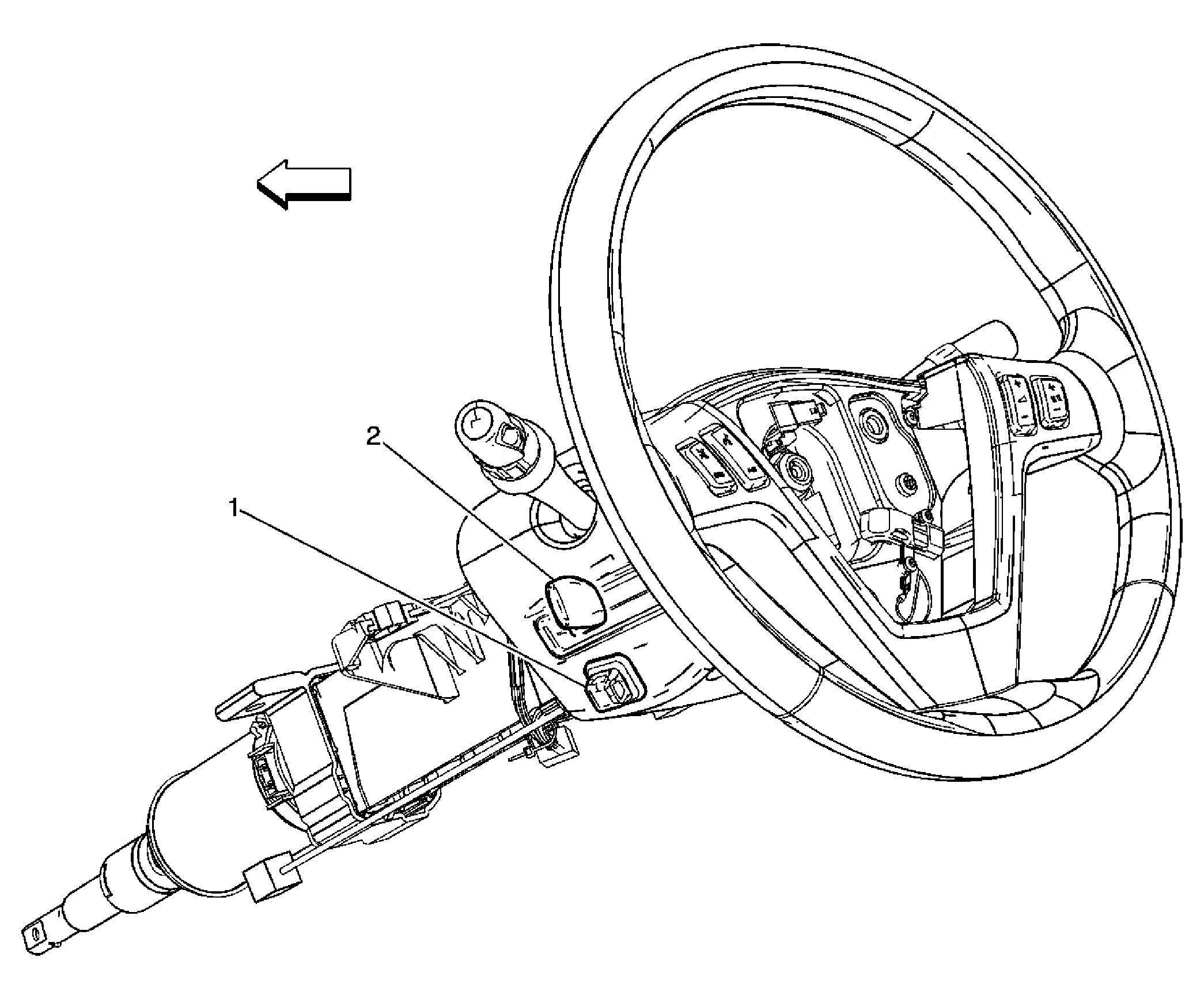

| Callout |
Component Name |
| 1 |
Adjustable Pedal Switch |
| 2 |
Tilt Lever |
