Cellular Communication Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

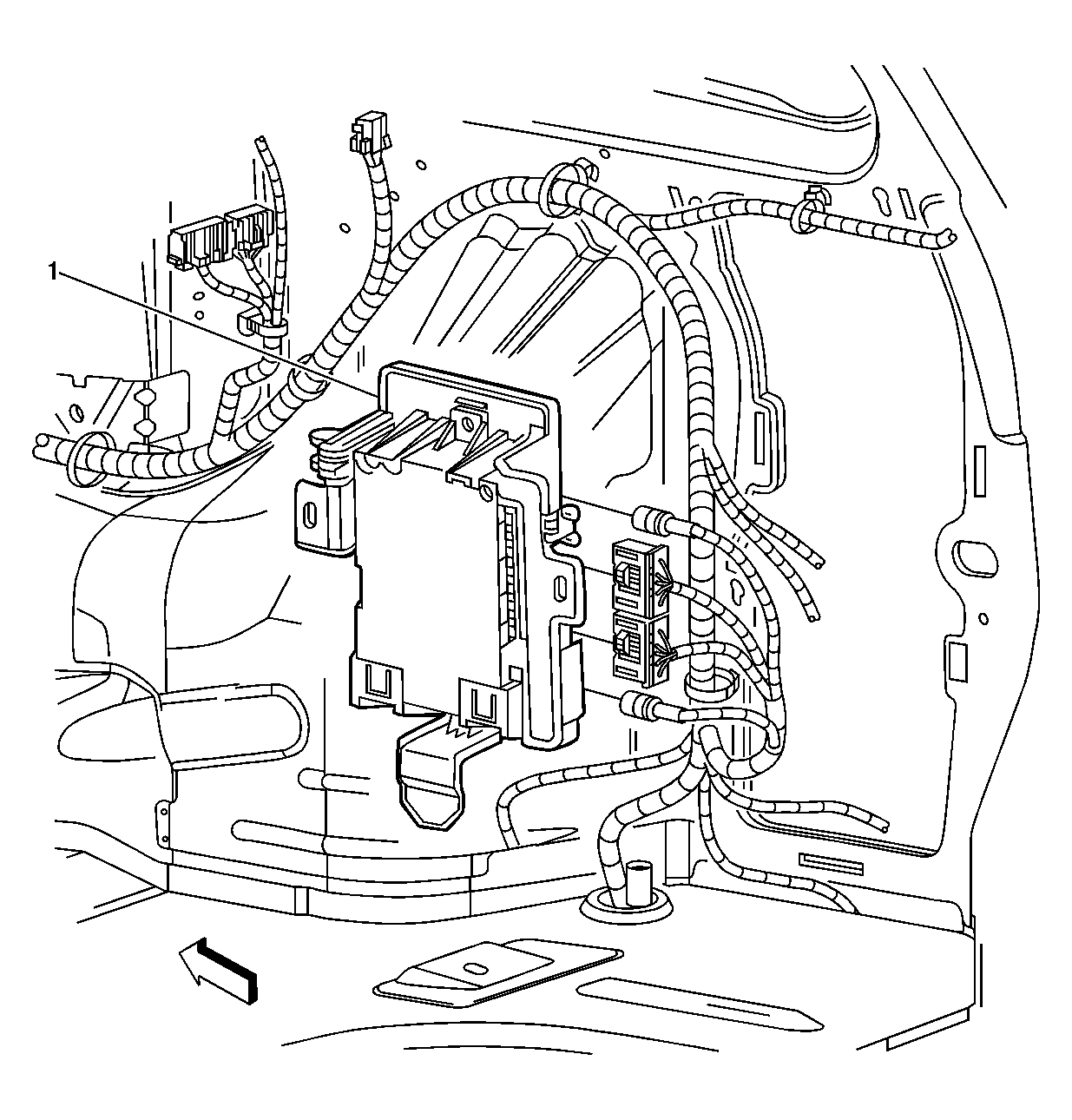

| Callout | Component Name |
|---|---|
| 1 | Vehicle Communications Interface Module (VCIM) |
| Callout | Component Name |
|---|---|
| 1 | Headlight Sensor |
| 2 | Emergency Button (UE1) |
| 3 | OnStar® Call Center Button (UE1) |
| 4 | Answer/End Call Button (UE1) |
| 5 | Cellular Microphone (UE1) |
| 6 | ISRVM On/Off Button |
| 7 | ISRVM |
| 8 | Rear Window Defogger Grid |
| 9 | Rear Window Wiper Motor |

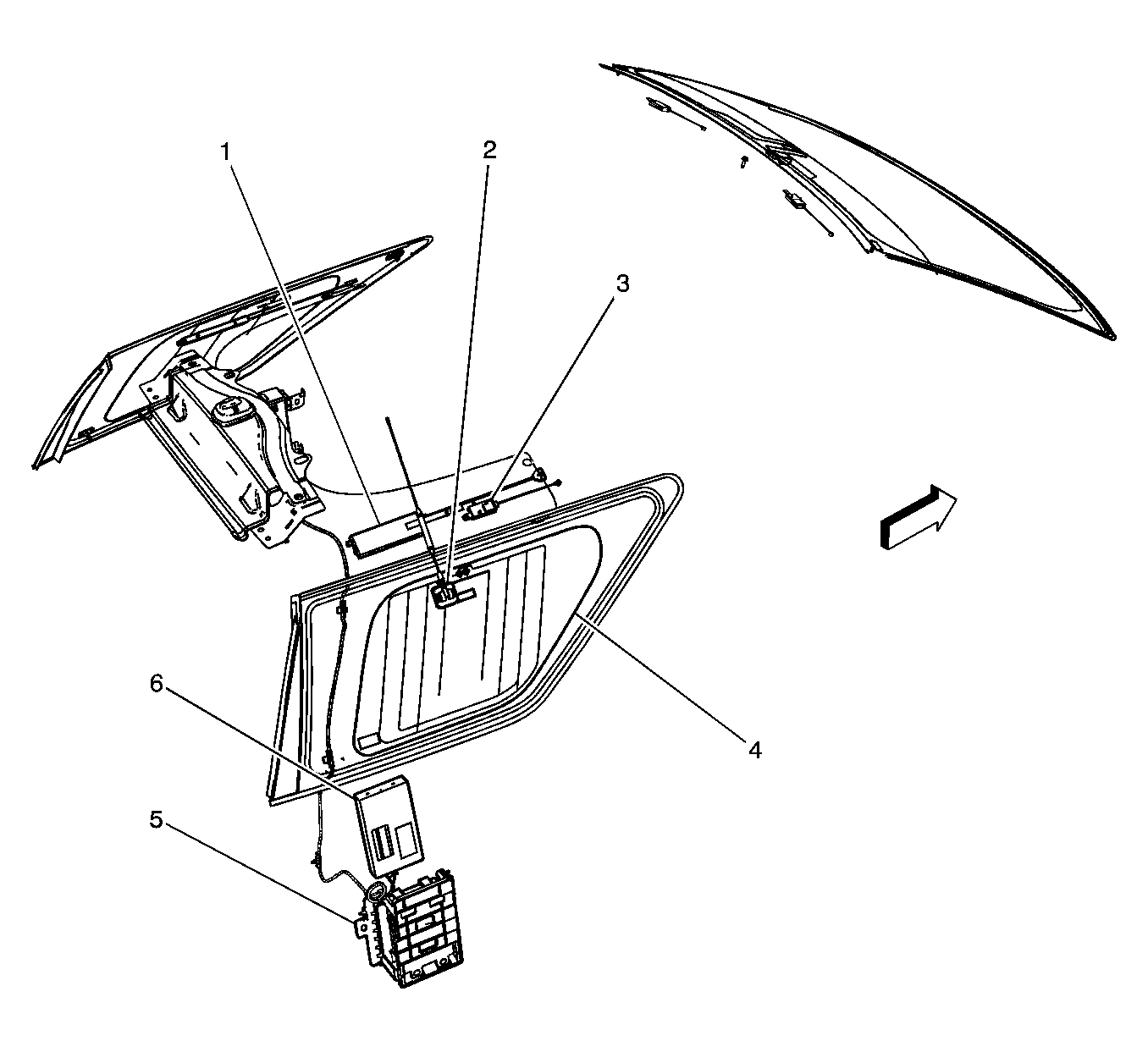

| Callout | Component Name |
|---|---|
| 1 | Rear Window Antenna Module - Right |
| 2 | Cellular Antenna (UE1) |
| 3 | RR Antenna Amplifier (U2X/U2Y) |
| 4 | Rear Window Antenna Assembly - Right |
| 5 | Vehicle Communication Interface Module (VCIM) (UE1) |
| 6 | Digital Radio Receiver (U2K) |
