Entertainment Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster
4	Windshield Wiper/Washer Switch
5	Inside Air Temperature Sensor
6	Sunload/Ambient Light Sensor
7	Speaker - Front Midrange (U57)
8	Hazard Switch
9	Radio
10	CD Player
11	HVAC Control Module - Climate Control - Right
12	Heated Seat Switch - Passenger (KA1)
13	Cigar Lighter
14	Heated Seat Switch - Driver (KA1)
15	HVAC Control Module - Climate Control - Left
16	Steering Wheel Controls - Left
17	Hood Release Lever

Fig 2: A Pillar Speakers Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Right A Pillar Tweeter
2	A Pillar - Right
3	A Pillar - Left
4	Speaker - Left A Pillar Tweeter

Fig 3: Right Rear Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Rear Subwoofer

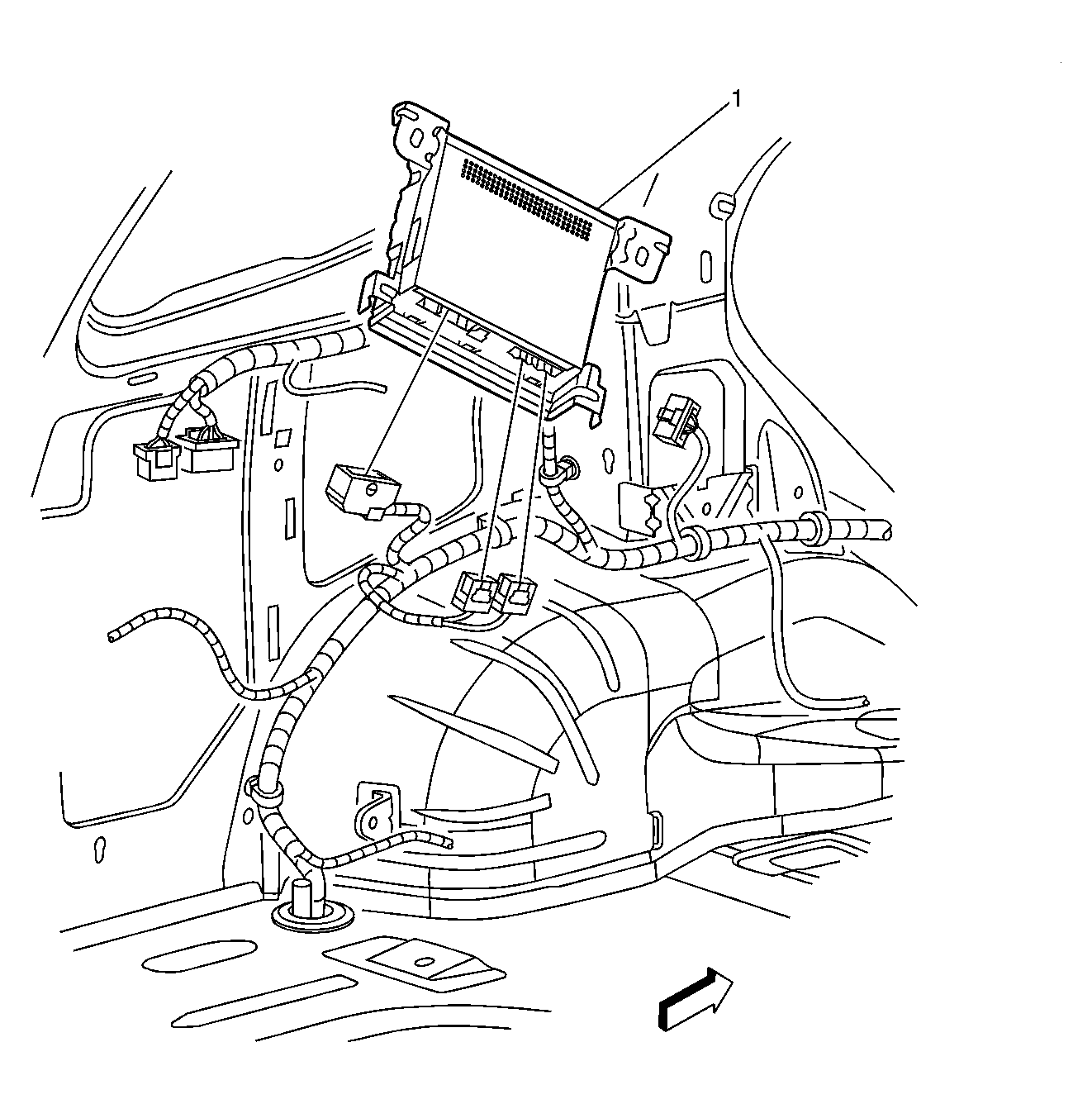

Fig 4: Left Rear Of Vehicle Behind Trim Panel (U2X/U2Y) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	TV Tuner

Fig 5: Right Rear Of Vehicle Behind Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM)
2	Digital Radio Receiver (U2K)
3	Vehicle Communication Interface Module (VCIM) (UE1)
4	Suspension Control Module (F55)
5	Liftgate Lock/Unlock Relay

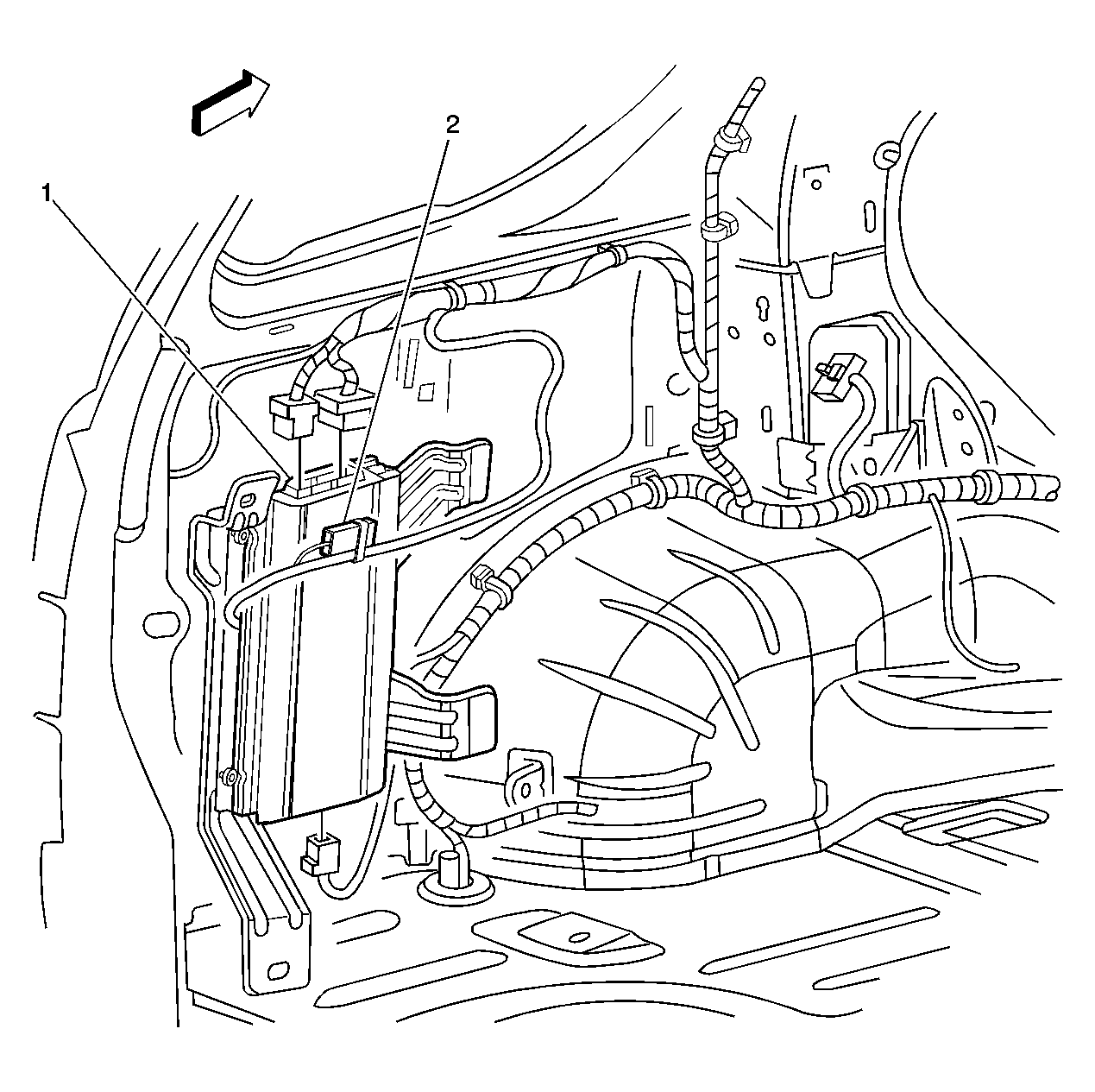

Fig 6: Left Rear Of Vehicle Behind Trim Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Audio Amplifier
2	Rear Parking Assist (RPA) Diagnostic Connector

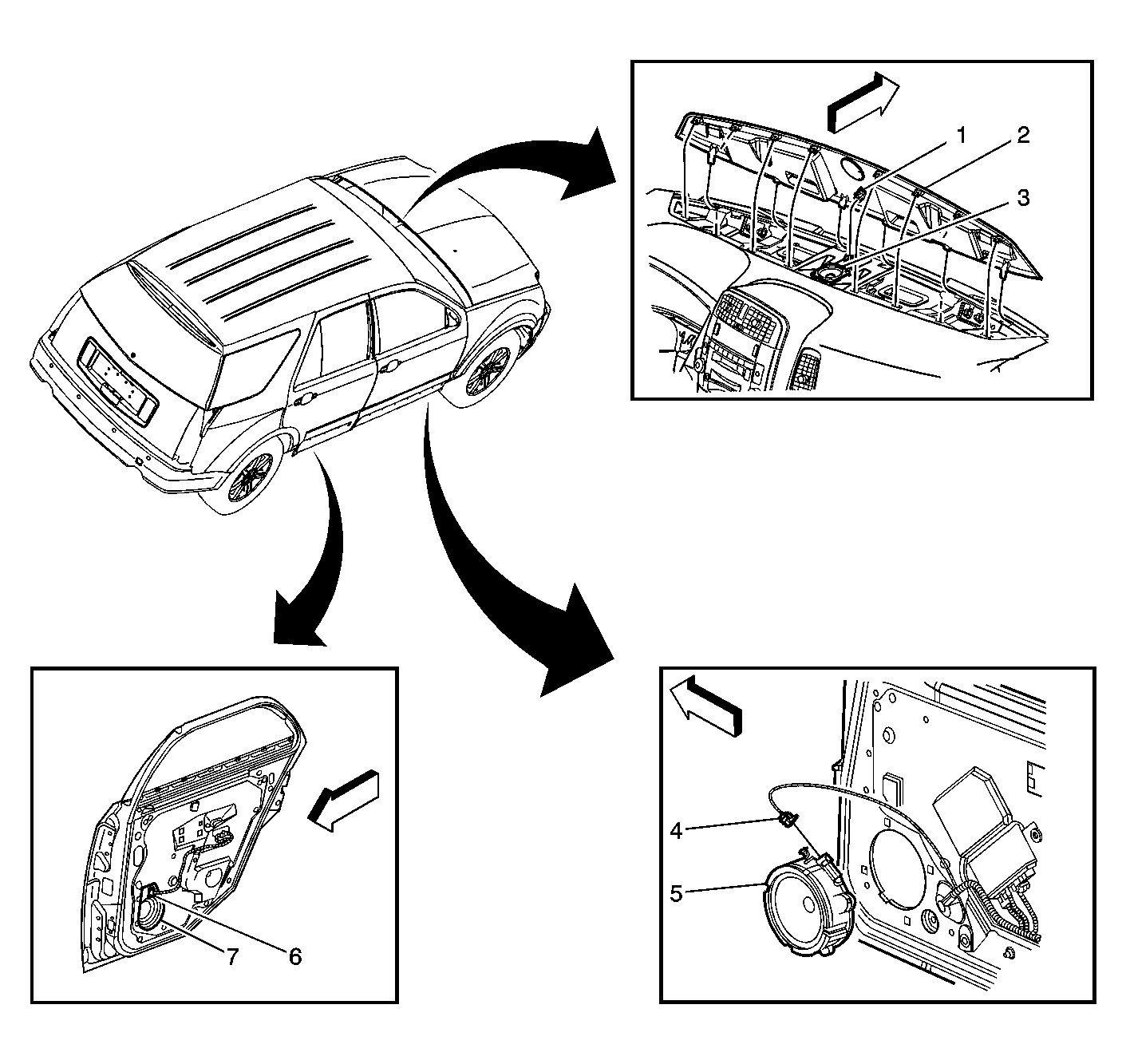

Fig 7: I/P & Right Side Doors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunload/Ambient Light Sensor
2	Defroster Grille
3	Speaker - Front Midrange (U57)
4	Speaker - RF Door Connector
5	Speaker - RF Door, LF Similar
6	Speaker - RR Door Connector
7	Speaker - RR Door, LR Similar

Fig 8: Rear Of Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Video Display (U42)
2	DVD Player (U42)
3	Auxiliary Power Outlet - Center Console 2 (U42)
4	Auxiliary Power Outlet - Center Console 1

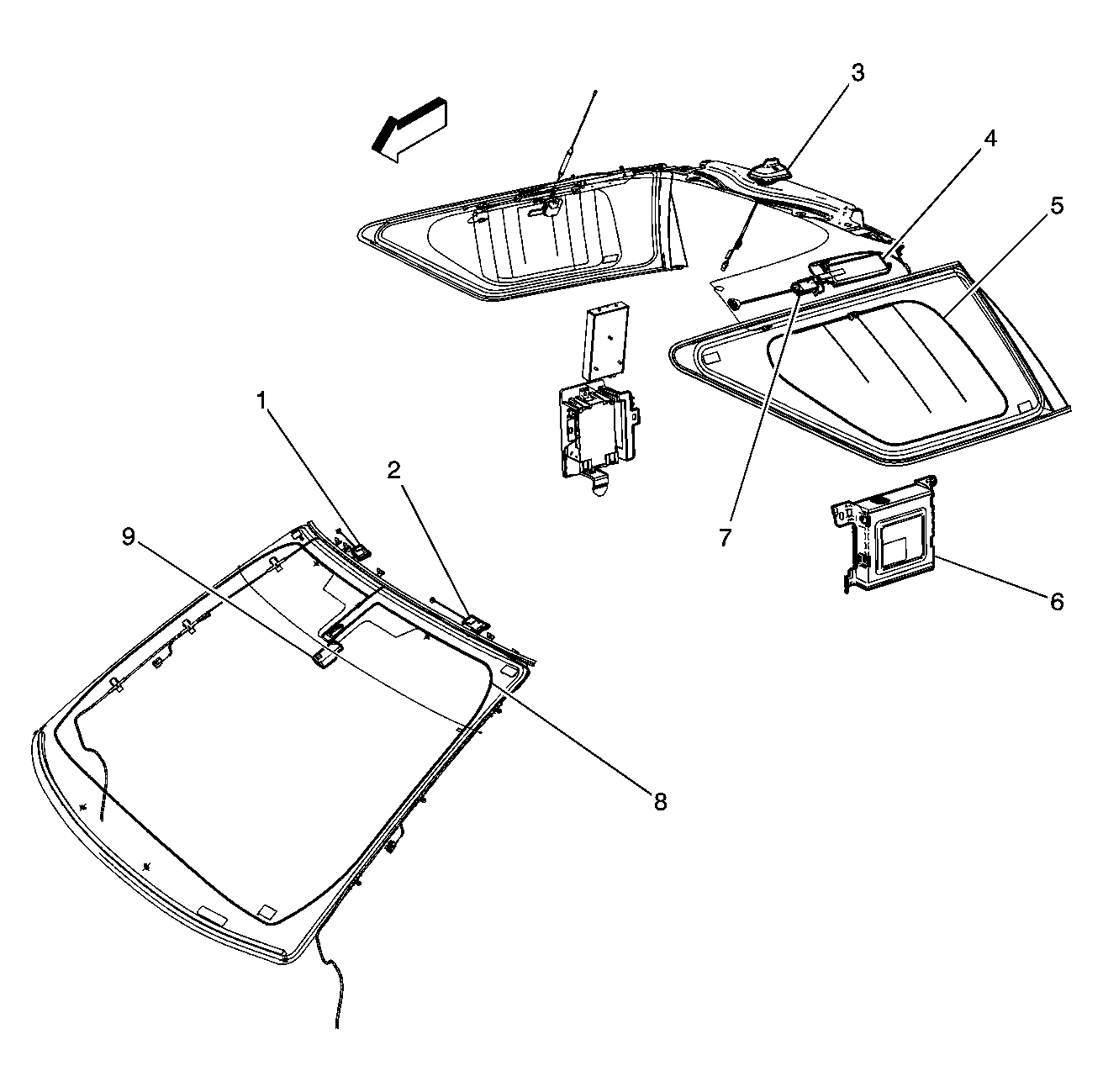

Fig 9: Antenna Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Antenna Amplifier (U2X/U2Y)
2	LF Antenna Amplifier (U2X/U2Y)
3	Digital Radio Antenna (U2K)
4	Rear Window Antenna Module - Left
5	Rear Window Antenna Assembly - Left
6	TV Tuner (U2X/U2Y)
7	LR Antenna Amplifier (U2X/U2Y)
8	Front Glass TV Antenna (U2X/U2Y)
9	Navigation Antenna (U2V/U2X/U2Y)

Fig 10: Antenna Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Antenna Module - Right
2	Cellular Antenna (UE1)
3	RR Antenna Amplifier (U2X/U2Y)
4	Rear Window Antenna Assembly - Right
5	Vehicle Communication Interface Module (VCIM) (UE1)
6	Digital Radio Receiver (U2K)
