Data Link Communications Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

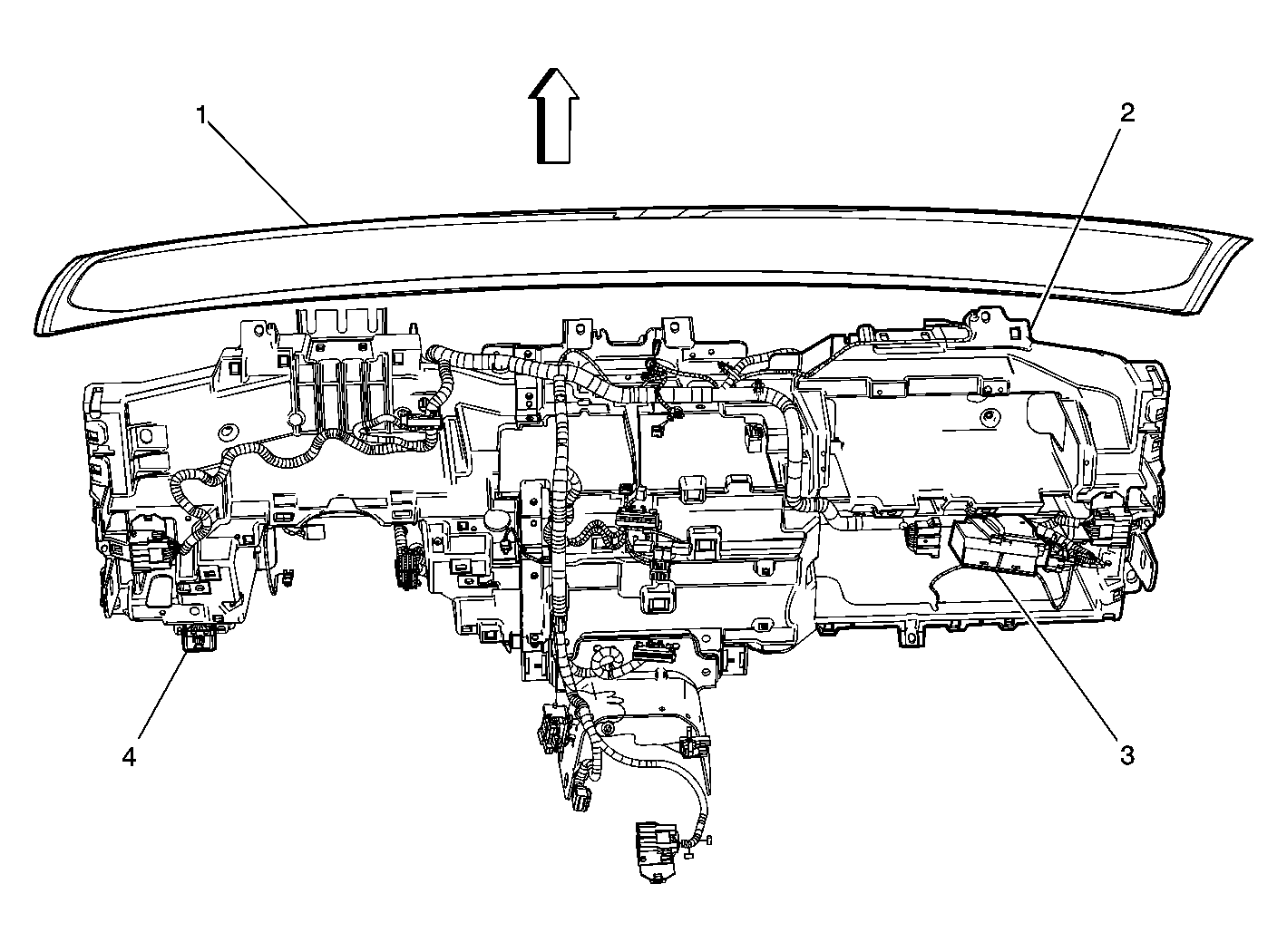

Fig 1: Data Link Connector (DLC) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	RH Side of I/P
3	Dash Integration Module (DIM)
4	Data Link Connector (DLC)
