Cruise Control Component Views
WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

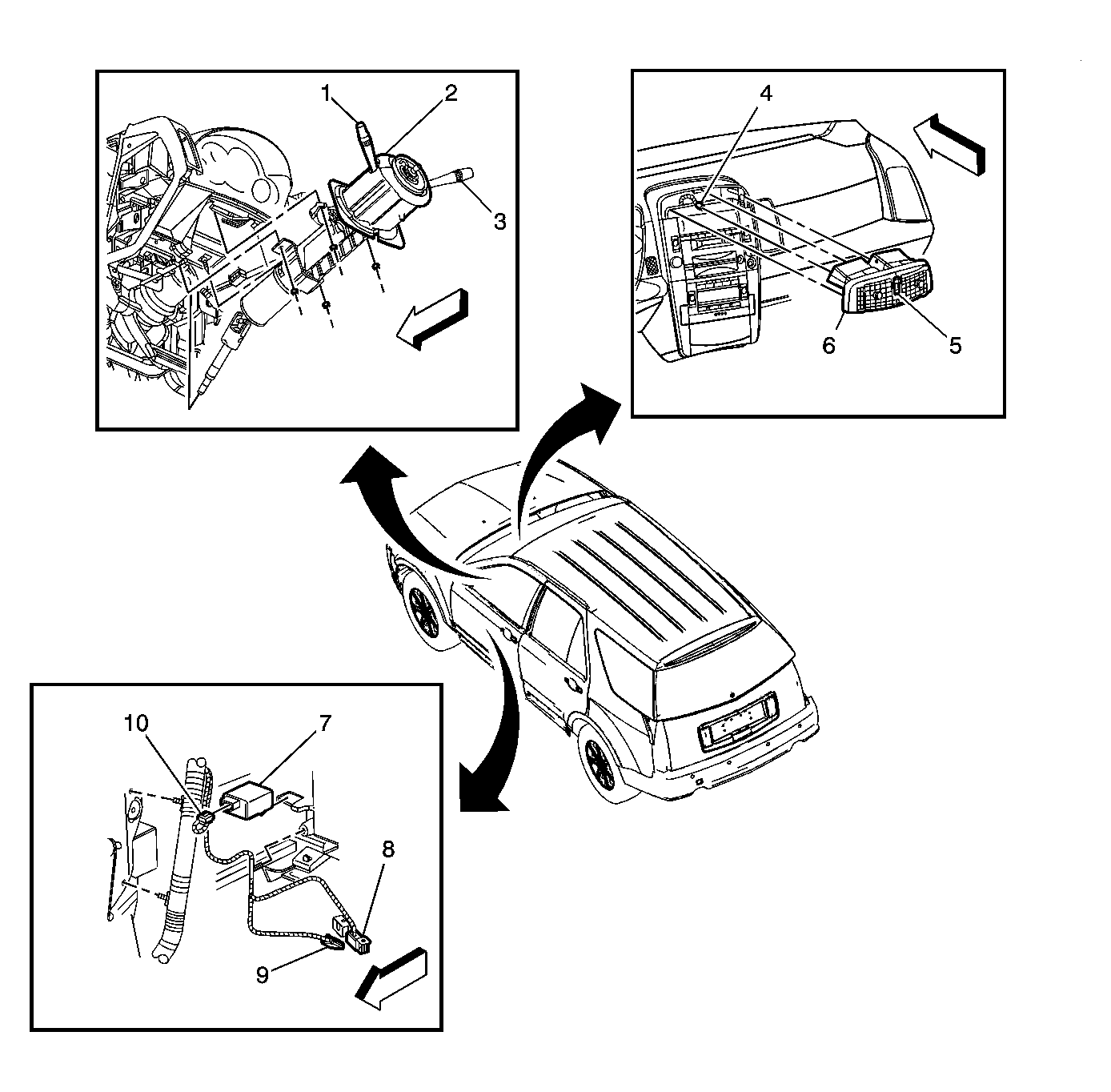

| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch |
| 2 | Steering Column |
| 3 | Windshield Wiper/Washer Switch |
| 4 | Hazard Switch Connector |
| 5 | Hazard Switch |
| 6 | I/P Air Deflector - Center |
| 7 | Turn Signal/Hazard Flasher Module |
| 8 | Data Link Connector (DLC) |
| 9 | Park Brake Switch Connector |
| 10 | Turn Signal/Hazard Flasher Module Connector |
| Callout | Component Name |
|---|---|
| 1 | Park Brake Switch |
| 2 | Brake Pedal Position Sensor |
| 3 | Accelerator Pedal Position (APP) Sensor |
| 4 | Left Front Floor Panel |

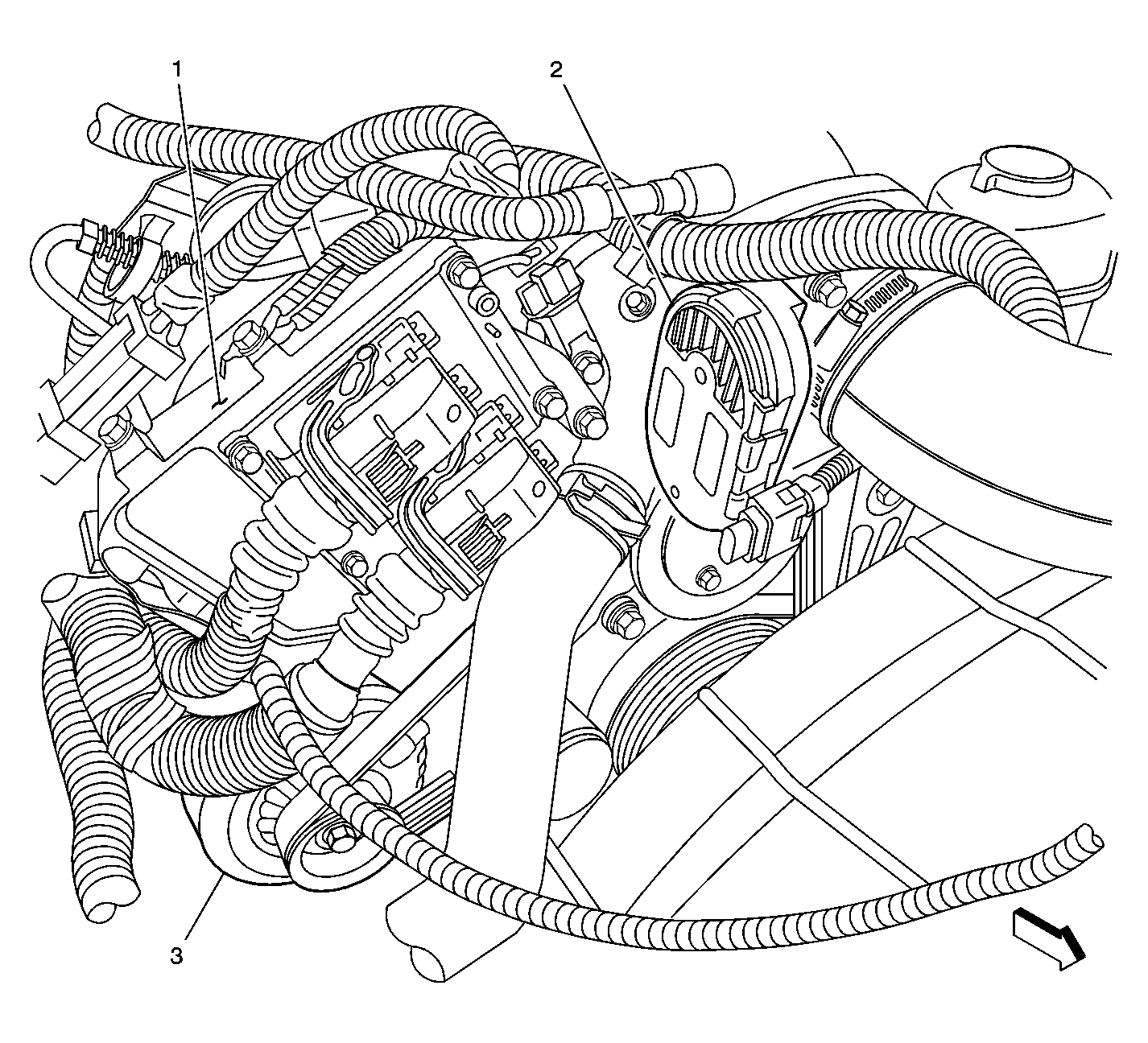

| Callout | Component Name |
|---|---|
| 1 | Engine Control Module (ECM) |
| 2 | Throttle Actuator Control (TAC) Module |
| 3 | Generator |
| Callout | Component Name |
|---|---|
| 1 | Camshaft Position (CMP) Actuator Solenoid Exhaust - Bank 1 |
| 2 | CMP Sensor Exhaust - Bank 1 |
| 3 | CMP Sensor Intake - Bank 1 |
| 4 | CMP Actuator Solenoid Intake - Bank 1 |
| 5 | Manifold Absolute Pressure (MAP) Sensor |
| 6 | C140 |
| 7 | Ignition Coil - Module 1 |
| 8 | Fuel Injector 1 |
| 9 | Ignition Coil - Module 3 |
| 10 | Fuel Injector 3 |
| 11 | Ignition Coil - Module 5 |
| 12 | Fuel Injector 5 |
| 13 | Ignition Coil - Module 7 |
| 14 | Fuel Injector 7 |
| 15 | Fuel Injector 6 |
| 16 | Starter |
| 17 | C102 |
| 18 | Fuel Injector 8 |
| 19 | C139 |
| 20 | Ignition Coil - Module 8 |
| 21 | Ignition Coil - Module 6 |
| 22 | Ignition Coil - Module 4 |
| 23 | Fuel Injector 4 |
| 24 | Ignition Coil - Module 2 |
| 25 | Fuel Injector 2 |
| 26 | CMP Actuator Solenoid Exhaust - Bank 2 |
| 27 | CMP Sensor Exhaust - Bank 2 |
| 28 | CMP Sensor Intake - Bank 2 |
| 29 | CMP Actuator Solenoid Intake - Bank 2 |
| 30 | Evaporative Emission (EVAP) Canister Purge Valve |
| 31 | Throttle Actuator Control (TAC) Module |
