ABS Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pedal Switches & Sensors Component View
GM1488592Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park Brake Switch
2 Brake Pedal Position Sensor
3 Accelerator Pedal Position (APP) Sensor
4 Left Front Floor Panel
Fig 2: Right Front Of Vehicle Near Right Front Wheel Component View
GM1276483Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 EBCM Connector Lock
2 Electronic Brake Control Module (EBCM)
3 EBCM Connector Position Assurance Retainer
4 EBCM Connector
5 Brake Pressure Modulator Valve (BPMV)
6 Brake Fluid Pressure Sensor
7 Brake Fluid Pressure Sensor Connector
Fig 3: Steering Wheel Position Sensor Component View
GM1381386Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Steering Angle Sensor
2 Steering Column

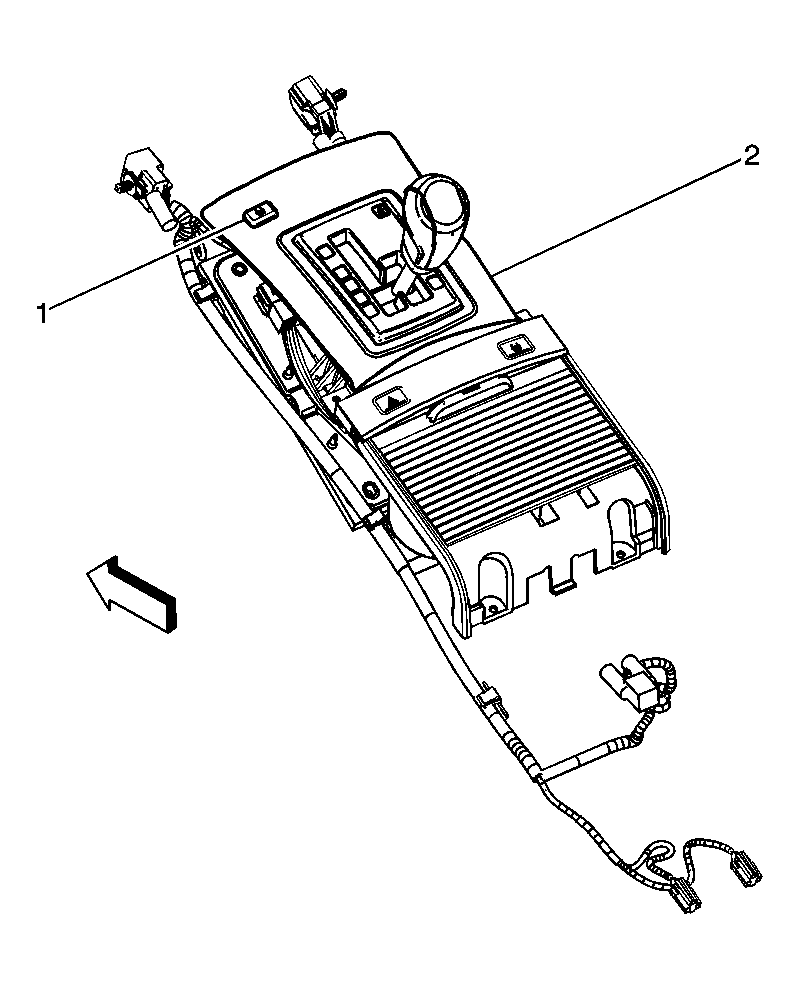

Fig 4: Traction Control Switch Component View
GM1384714Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Traction Control Switch
2 Console
Fig 5: Wheel Speed Sensors Component View
GM1384464Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Suspension Damper - LR
2 Suspension Position Sensor Extension Harness Connector - LR
3 Suspension Position Sensor - LR
4 Wheel Speed Sensor (WSS) - LR
5 Suspension Damper - LF
6 Suspension Position Sensor - LF
7 Wheel Speed Sensor (WSS) - LF (RF Similar)
8 Suspension Damper - RR
9 Wheel Speed Sensor (WSS) - RR
10 Suspension Position Sensor - RR
Fig 6: Left Front Of Vehicle Near Wheel Component View
GM1276484Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Wheel Speed Sensor - Left Front (Right Front Side Similar)

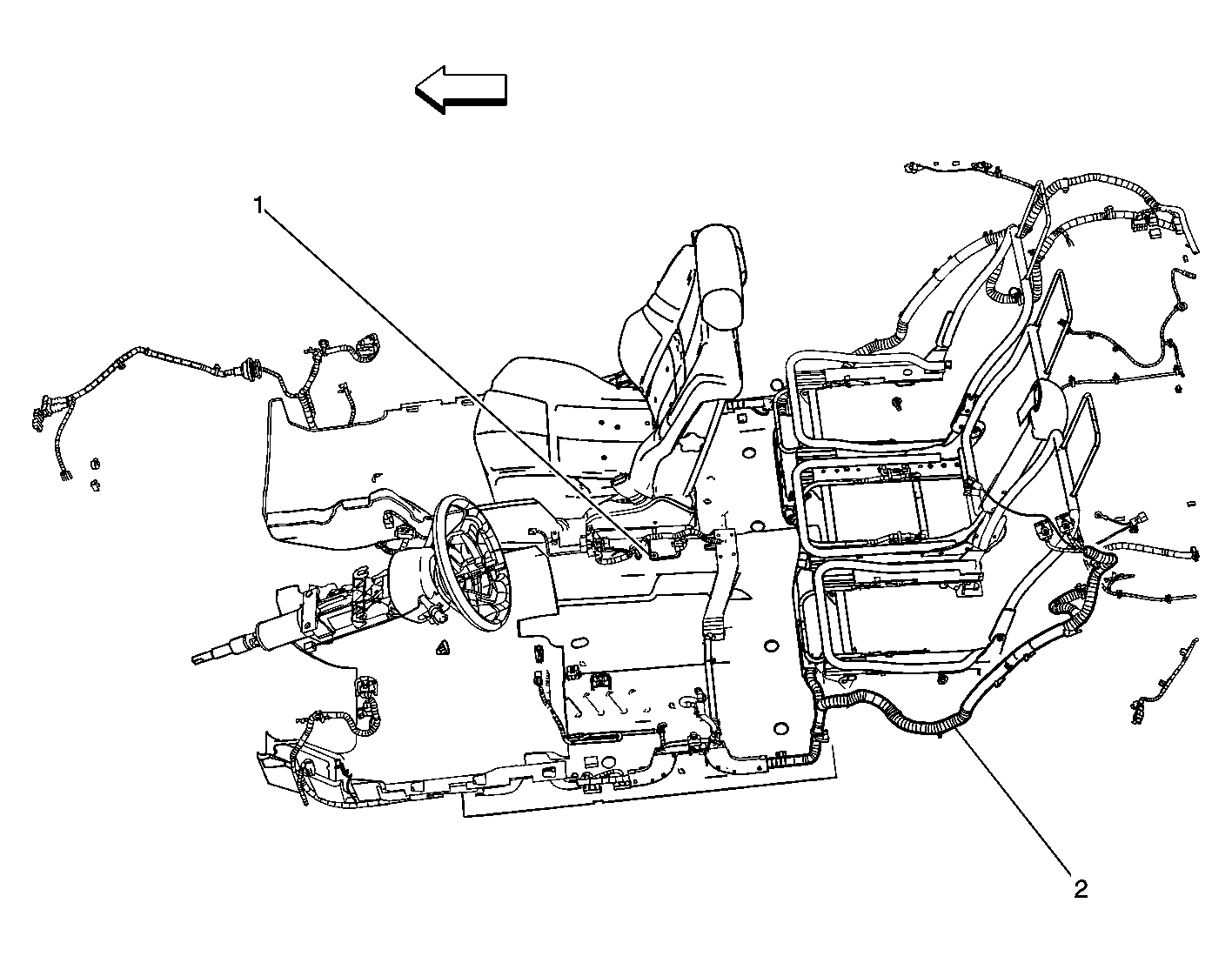

Fig 7: Yaw & Lateral/Longitudinal Acceleration Sensor Component View
GM1380390Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Yaw and Lateral/Longitudinal Acceleration Sensor
2 Body Harness
