ABS Connector End Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Brake Fluid Pressure Sensor Terminal Identification

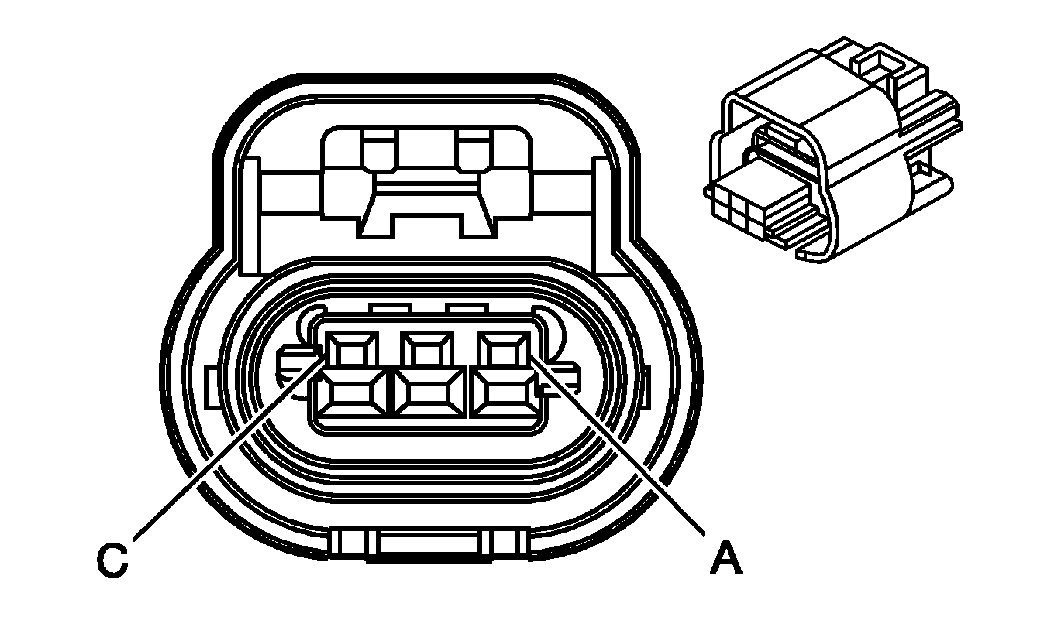

GM1283872Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15393906
  • 3-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A GY/BK 1337 5-Volt Reference
B PU 5002 Brake Fluid Pressure Sensor Signal
C L-GN/BK 1338 Low Reference
Brake Pedal Position Sensor Terminal Identification

GM1243663Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332132
  • 3-Way F GT 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 5360 Low Reference
B YE 5361 Brake Pedal Position Sensor Signal
C WH 5359 5-Volt Reference
Electronic Brake Control Module (EBCM) Terminal Identification

GM1283867Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15411019
  • 50-Way F Mixed Series (BK)
Pin Wire Color Circuit No. Function
A RD/BK 342 Battery Positive Voltage
B RD/BK 342 Battery Positive Voltage
C PK 39 Ignition 1 Voltage
D - - Not Used
E BK 1150 Ground
F BK 1150 Ground
G GY 1787 Variable Effort Steering Actuator High Effort Control
H WH 345 Variable Effort Steering Actuator Low Effort Control
A1 L-BU 830 Left Front Wheel Speed Sensor Signal
A2 YE 873 Left Front Wheel Speed Sensor Low Reference
A3 D-GN 872 Right Front Wheel Speed Sensor Signal
A4 TN 833 Right Front Wheel Speed Sensor Low Reference
A5 TN 884 Left Rear Wheel Speed Sensor Signal
A6 OG 885 Left Rear Wheel Speed Sensor Low Reference
A7 BN 882 Right Rear Wheel Speed Sensor Signal
A8 WH 883 Right Rear Wheel Speed Sensor Low Reference
A9 - - Not Used
A10 D-BU 1537 ABS Indicator Signal
A11 - - Not Used
A12 YE/BK 5270 Traction Control Data Signal
A13 PU 1807 Class 2 Serial Data
A14 PU 1807 Class 2 Serial Data
B1 D-BU 5370 Long Accelerometer Signal
B2 - - Not Used
B3 YE 5361 5-Volt Reference
B4-B5 - - Not Used
B6 TN/BK 464 Delivered Torque Signal
B7 - - Not Used
B8 OG/BK 463 Requested Torque Signal
B9 - - Not Used
B10 GY 791 PWM Serial Data (F55)
B11 WH 790 PWM Serial Data (F55)
B12 - - Not Used
B13 L-GN/BK 1338 Yaw Rate Sensor Signal
B14 GY/BK 1337 5-Volt Reference
C1 - - Not Used
C2 YE/BK 2085 PWM Serial Data (F55)
C3 OG 5371 Stop Lamp Switch Signal
C4 - - Not Used
C5 GY 847 Extended Travel Brake Switch Signal
C6 L-BU 1764 Steering Wheel Position Signal B
C7 L-GN 1763 Steering Wheel Position Signal A
C8 D-BU 716 Yaw Rate Sensor Signal
C9 L-BU 715 Lateral Accelerometer Signal
C10 PU 5002 Brake Fluid Pressure Sensor Signal
C11 - - Not Used
C12 BN 5360 Low Reference
C13 WH 5359 Brake Pedal Position Sensor Signal
C14 - - Not Used
Steering Angle Sensor Terminal Identification

GM40427Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12064978
  • 6-Way F Micro-Pack 100 Series (GY)
Pin Wire Color Circuit No. Function
1 GY/BK 1337 5-Volt reference
2 L-GN/BK 1338 Low Reference
3-4 - - Not Used
5 L-GN 1763 Steering Wheel Position Signal A
6 L-BU 1764 Steering Wheel Position Signal B
Traction Control Switch Terminal Identification

GM130718Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059800
  • 5-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A-B - - Not Used
C BN/WH 1571 Traction Control Switch Signal
D BK 450 Ground
E YE 1491 Backlight Lamps Control
Wheel Speed Sensor (WSS) Terminal Identification - LF

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A L-BU 830 Left Front Wheel Speed Sensor Signal
B YE 873 Left Front Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Terminal Identification - LR

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A TN 884 Left Rear Wheel Speed Sensor Signal
B OG 885 Left Rear Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Terminal Identification - RF

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-GN 872 Right Front Wheel Speed Sensor Signal
B TN 833 Right Front Wheel Speed Sensor Low Reference
Wheel Speed Sensor (WSS) Terminal Identification - RR

GM537107Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052644
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A BN 882 Right Rear Wheel Speed Sensor Signal
B WH 883 Right Rear Wheel Speed Sensor Low Reference
Yaw and Lateral/Long Acceleration Sensor Terminal Identification

GM647974Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326822
  • 5-Way F GT 150 Series, Sealed (BK)
Pin Wire Color Circuit No. Function
A D-BU 5370 Long Accelerometer Signal
B GY/BK 1337 5-Volt Reference
C D-BU 716 Yaw Rate Sensor Signal
D L-GN/BK 1338 Low Reference
E L-BU 715 Lateral Accelerometer Signal
