Navigation System Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

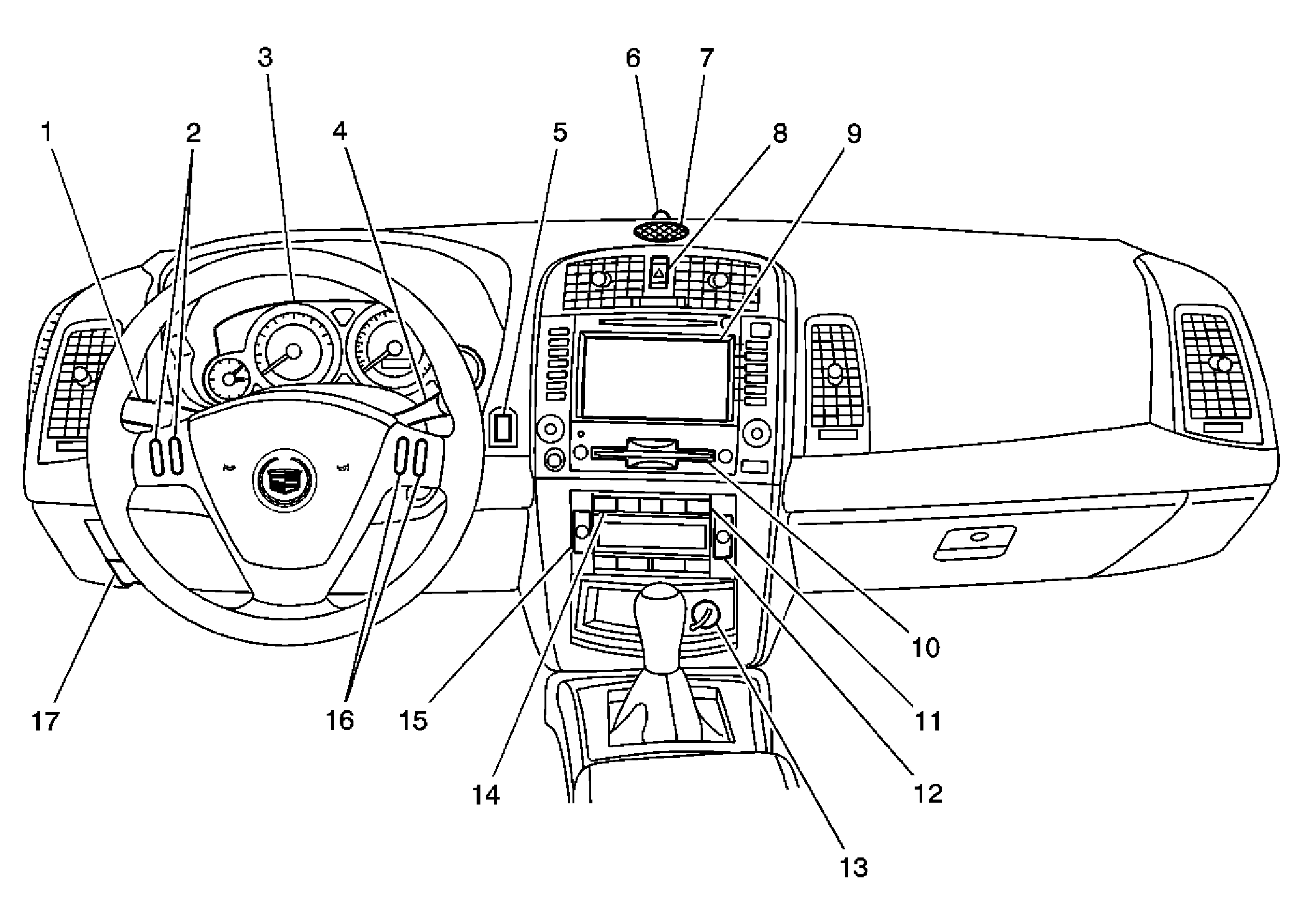

Fig 1: Instrument Panel Component View
GM1276442Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multifunction Switch
2 Steering Wheel Controls - Left
3 Instrument Panel Cluster
4 Windshield Wiper/Washer Switch
5 Inside Air Temperature Sensor
6 Sunload/Ambient Light Sensor
7 Speaker - Front Midrange (U57)
8 Hazard Switch
9 Radio
10 CD Player
11 HVAC Control Module - Climate Control - Right
12 Heated Seat Switch - Passenger (KA1)
13 Cigar Lighter
14 Heated Seat Switch - Driver (KA1)
15 HVAC Control Module - Climate Control - Left
16 Steering Wheel Controls - Left
17 Hood Release Lever

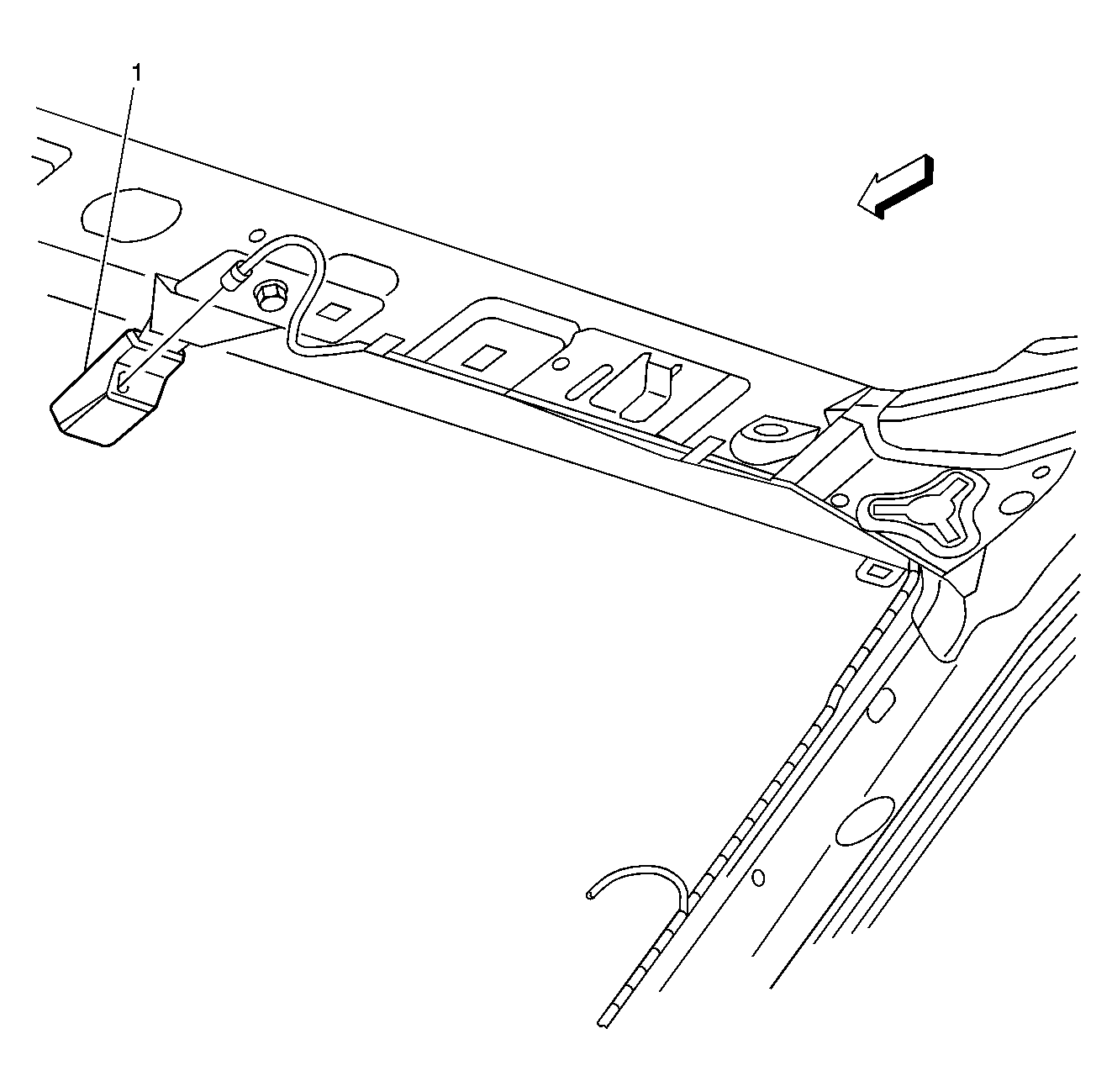

Fig 2: Upper Center Of Windshield Component View
GM1276934Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Navigation Antenna

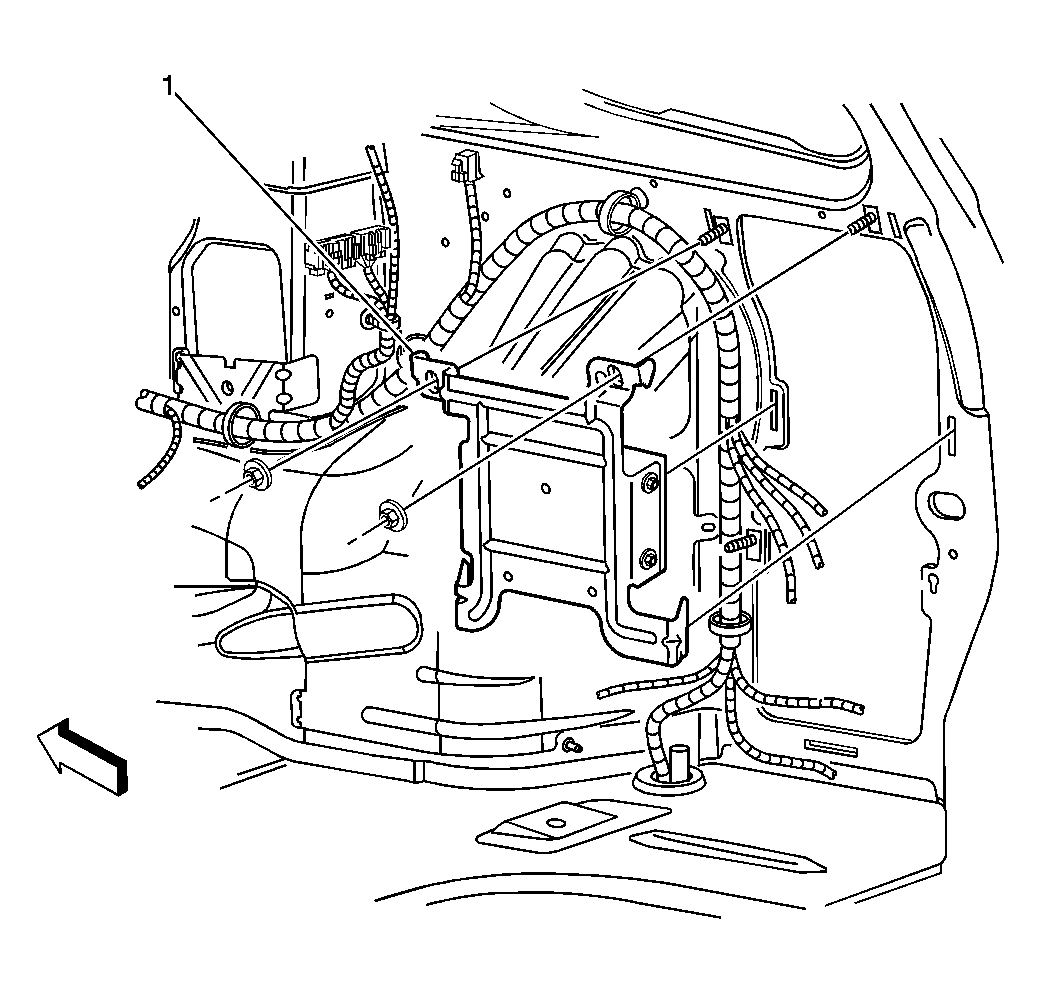

Fig 3: Right Rear Of Vehicle Behind Trim Panel (U2X) Component View
GM1545515Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Traffic Information Receiver
