Power Seat Systems Component Views

WARNING: This page is about a different car, the 2004 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Driver Seat Switches & Inlines Component View
GM1372946Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Seat Cushion
2 Seat Lumbar Switch - Driver, Passenger Similar (AL2)
3 Seat Adjuster Switch - Driver, Passenger Similar
4 C300, C307 Similar
5 C301, C306 Similar
Fig 2: Driver Door Switches Component View
GM1276972Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Driver, Passenger Similar
2 Memory Seat Switch (A45)
3 Driver Door Switch Assembly (DDSA)
Fig 3: Seat Motors & MSM Component View
GM801195Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Front Vertical Motor - Driver Connector (Passenger Similar)
2 Seat Front Vertical Motor - Driver (Passenger Similar)
3 Seat Horizontal Motor - Driver, Passenger Similar
4 Seat Rear Vertical Motor - Driver, Passenger Similar
5 Seat Rear Vertical Motor - Driver Connector, Passenger Similar
6 Horizontal Motor Connector - Driver Seat, Passenger Similar
7 C301
8 C300
9 Memory Seat Module (MSM)
10 Seat Recline Motor
11 Seat Recline Motor Connector
Fig 4: Power Seat Position Sensors Component View
GM1348831Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Front Vertical Position Sensor - Driver
2 Seat Horizontal Position Sensor - Driver
3 Seat Rear Vertical Position Sensor - Driver
Fig 5: Seat Recline Motor & Sensor Component View
GM1348830Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Recline Position Sensor - Driver (w/A45) (Passenger Similar)
2 Seat Recline Position Sensor - Driver Connector (Passenger Similar)
3 Seat Recline Motor - Driver (Passenger Similar)
Fig 6: Seat Lumbar Components (AL2) Component View
GM1409558Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Seat Lumbar Position Sensor - Driver, Passenger Similar
2 Seat Lumbar Motor - Driver Connector, Passenger Similar
3 Seat Lumbar Motor - Driver, Passenger Similar
4 Seat Track Trim Panel - Driver, Passenger Similar
5 Seat Lumbar Switch - Driver, Passenger Similar
6 Seat Adjuster Switch - Driver, Passenger Similar
Fig 7: Heated Seat Module & Seat Switch Component View
GM801190Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Module - Driver (KA1) (Front Passenger Similar)
2 Heated Seat Module Connectors
3 Driver Seat
4 Seat Adjuster Switch - Driver (Front Passenger Similar)
Fig 8: Heated Seat Components
GM1347699Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Seat Element - Front Passenger Seat Back (Driver Similar)
2 Heated Seat Element - Front Passenger Seat Cushion Front and Rear and Heated Seat Thermistor - Front Passenger (Under Seat Cover) (Driver Similar)
3 Seat Cover, Partially Removed

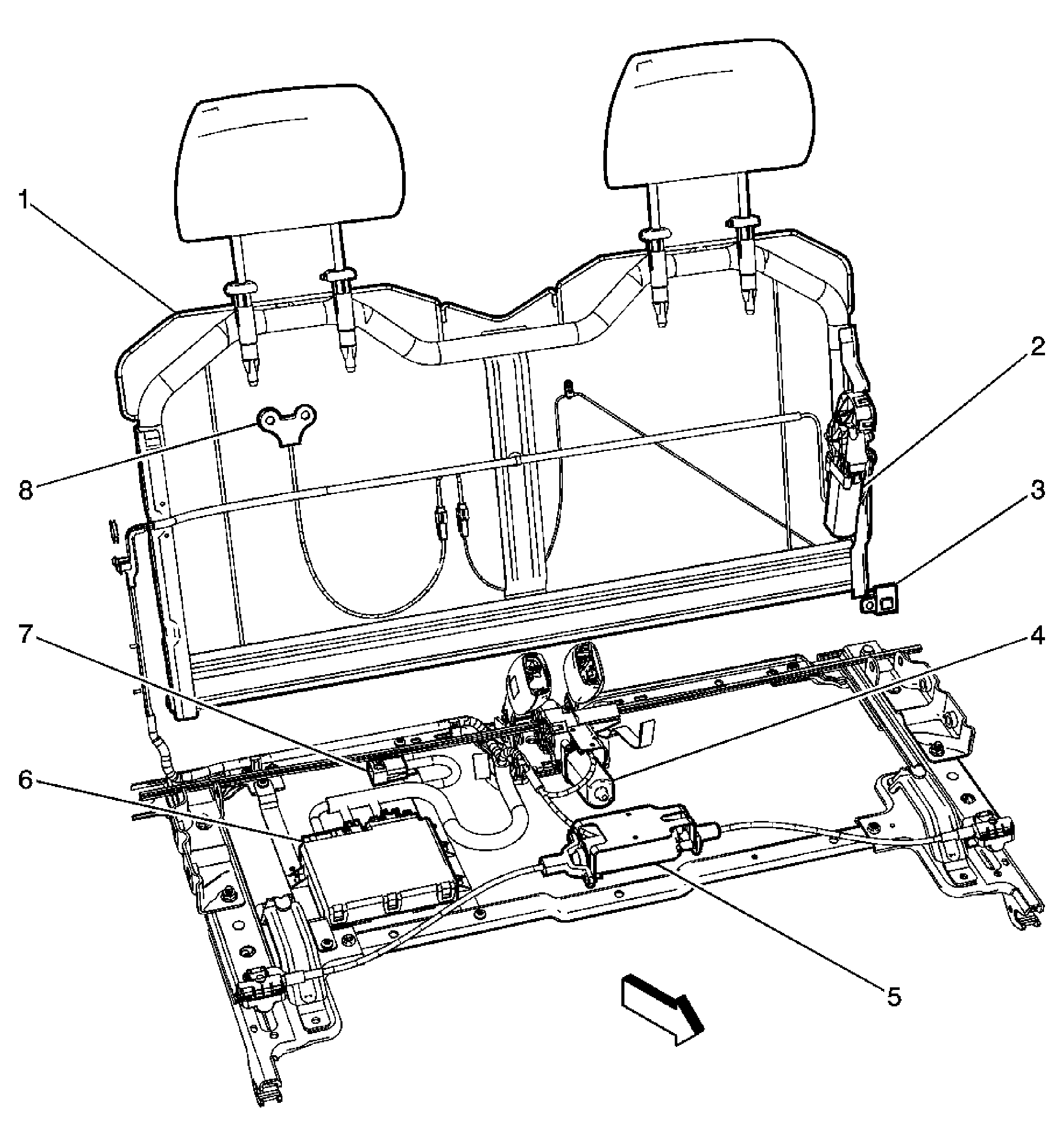

Fig 9: Third Row Folding Seats (AM0) Component View
GM1380958Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Third Row Seats
2 Folding Seat Rotation Motor Assembly
3 Seat Back Load Floor Position Switch
4 Folding Seat Recline Motor Assembly
5 Folding Seat Horizontal Motor Assembly
6 Rear Seat Module
7 C311
8 Seat Back Panel Position Switch

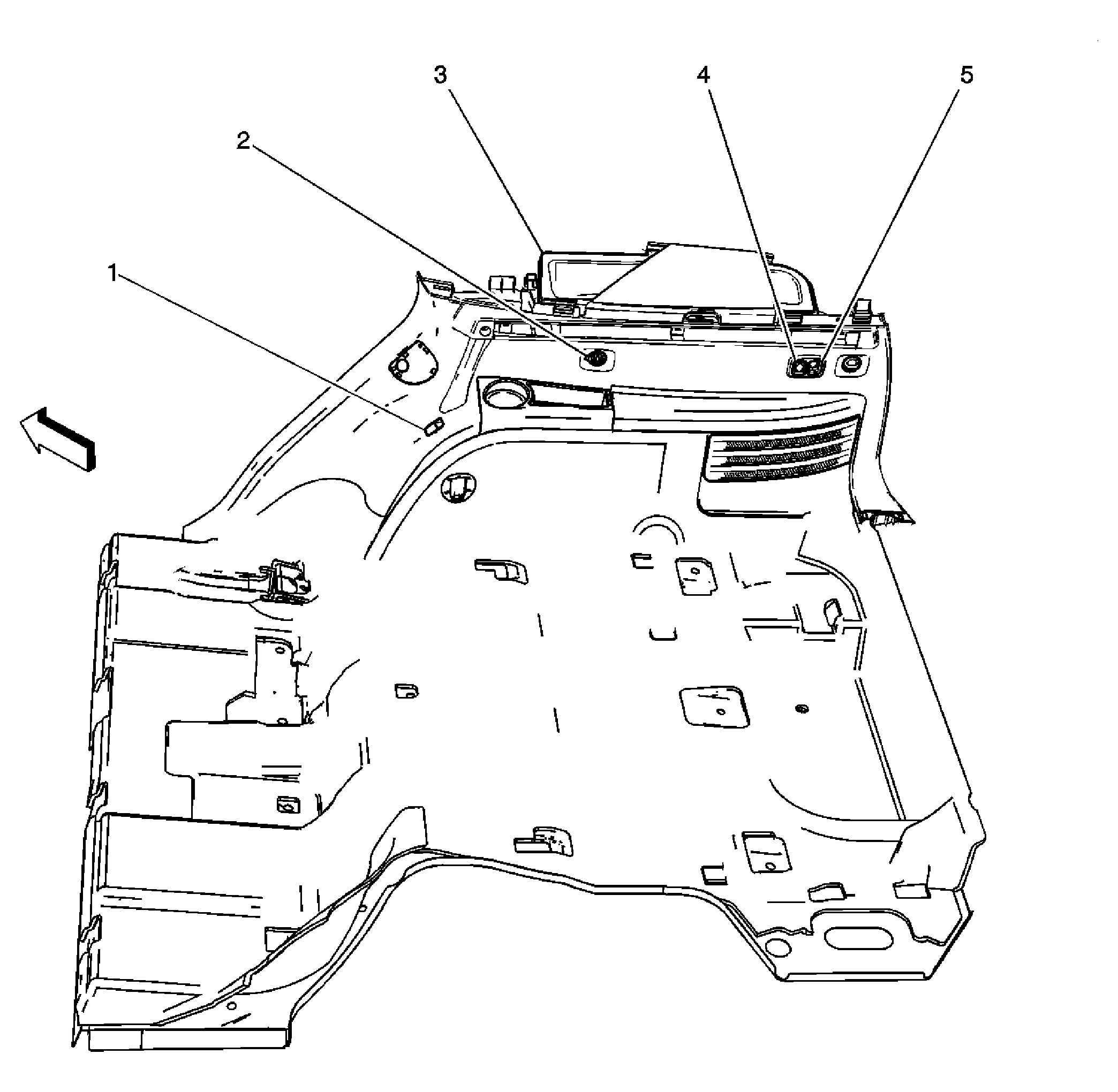

Fig 10: Right Rear Of Cargo Area Component View
GM1373717Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Folding Seat Stow Switch - Front (AM0)
2 Auxiliary Power Outlet - Rear
3 Storage Compartment
4 Folding Seat Recline Switch (AM0)
5 Folding Seat Stow Switch - Rear (AM0)
