Power and Grounding Component Views

Fig 1: RR of the Engine Compartment Component View
GM1258722Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
Fig 2: Identifying Instrument Panel And Passenger Compartment Components
GM1252421Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dimmer/Head Up Display (HUD) Switch
2 Turn Signal/Multifunction Switch
3 Inflatable Restraint Steering Wheel Module
4 Instrument Panel Cluster (IPC)
5 Air Temperature Sensor - Inside
6 Windshield Wiper/Washer Switch
7 Driver Information Center (DIC) Switch
8 Hazard Switch
9 CD Changer
10 Valet Switch
11 Inflatable Restraint I/P Module
12 Inflatable Restraint I/P Module Disable Switch
13 I/P Compartment Lamp
14 Radio
15 HVAC Control Module
16 Cigar Lighter
17 Courtesy Lamp Switch - Console
18 Folding Top Switch
19 Inflatable Restraint I/P Module Disable Switch LED
20 Traction Control Switch
21 Auxiliary Power Outlet
22 Courtesy Lamp - Console
23 Automatic Transmission Shift Lever
24 Ignition Mode Switch
25 Steering Wheel Controls - Right
26 Horn Switch
27 Data Link Connector (DLC)
28 Steering Wheel Controls - Left

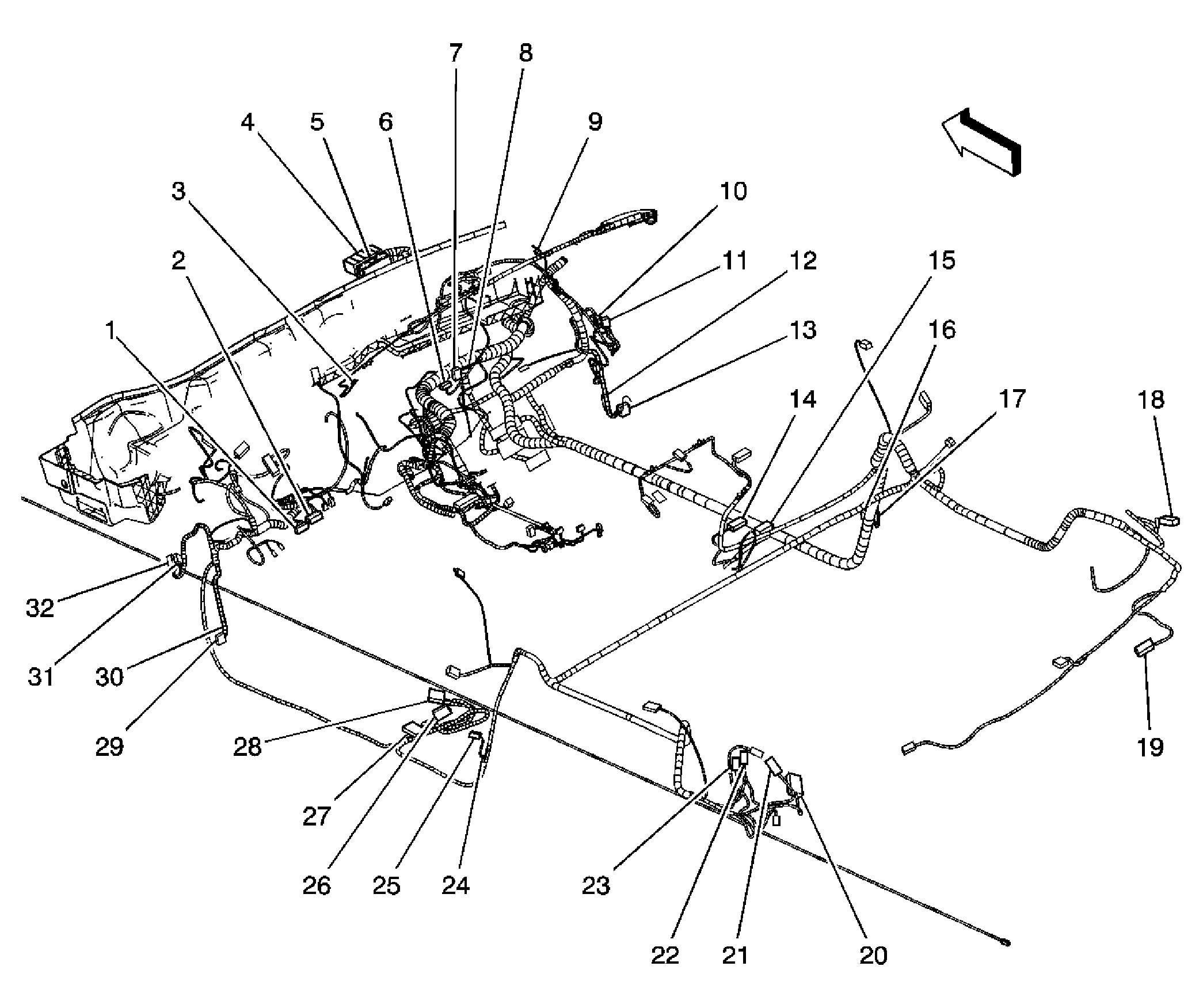

Fig 3: Instrument Panel Harness Component View
GM1361208Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 DLC Connector
2 C231
3 C311
4 Fuse Block - Underhood C3
5 Fuse Block - Underhood C4
6 C220
7 Auxiliary Power Relay
8 Splice Pack, SP208
9 C180
10 C600
11 C602
12 Splice Pack, SP202
13 G202
14 C380
15 C382
16 Splice Pack, SP302
17 G302
18 C482
19 C480
20 C455
21 C437
22 C433
23 C435
24 Splice Pack, SP301
25 G301
26 C377
27 C375
28 C379
29 Splice Pack, SP201
30 G201
31 C501
32 C503
Fig 4: I/P Harness Routing - Engine Compartment and Lower Right Side of I/P Component View
GM1442131Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block Underhood C3
2 Fuse Block Underhood C4
3 C186 I/P to Forward Lamp Harness
4 C180 I/P to Engine Harness
5 C182 I/P to Engine Harness
6 Engine compartment pass-through
7 Body Control Module (BCM) C2
8 Footwell Courtesy Lamp - RH
9 HVAC Blower Control
10 Body Control Module (BCM) C1
11 Relay Block - I/P
12 Fuse Block - I/P
13 Body Control Module (BCM) C4
14 Splice Pack SP208
15 Audio Amplifier C2
16 Audio Amplifier C1
17 G104

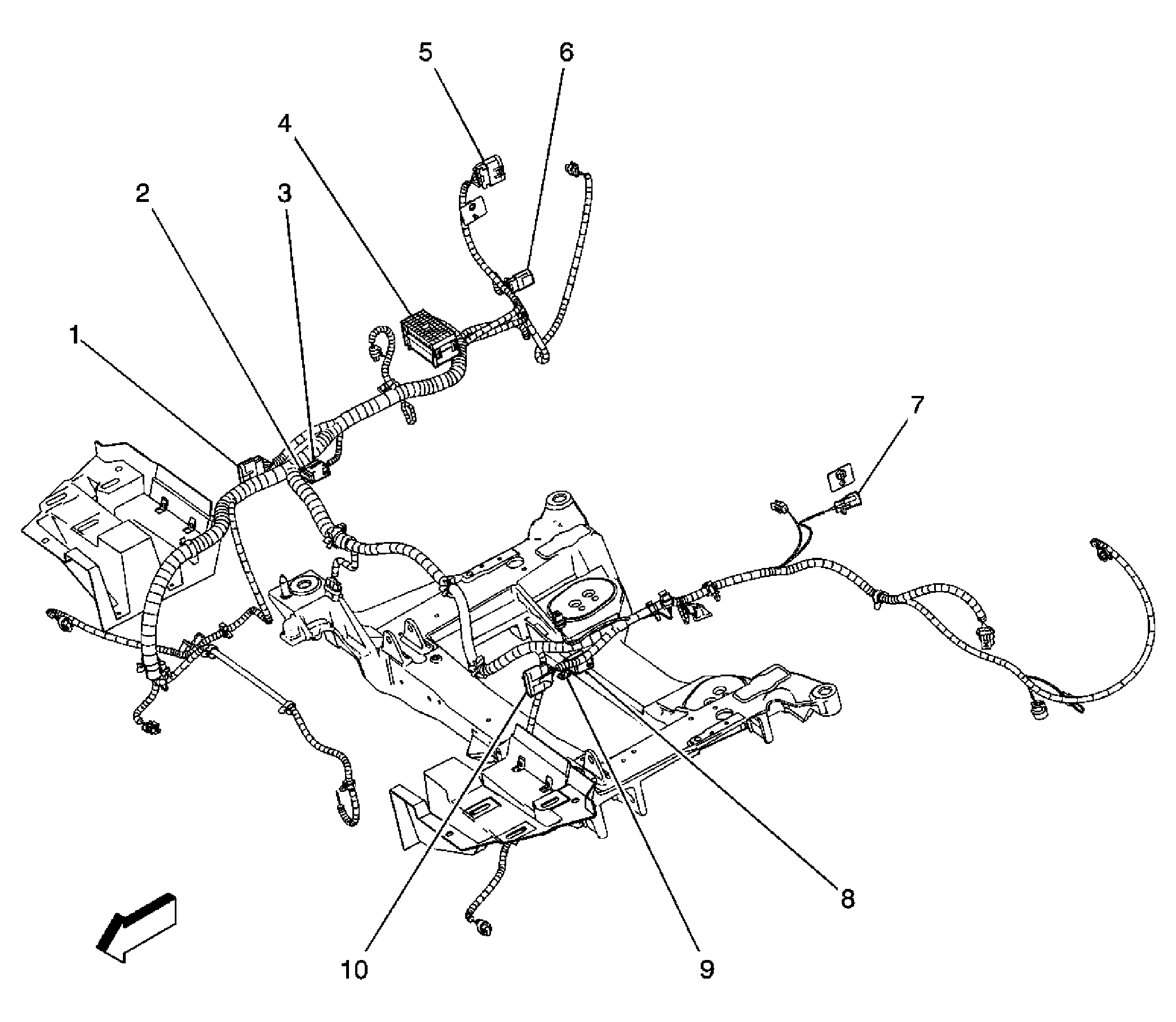

Fig 5: Forward Lamp Harness Routing View
GM1361150Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C120
2 G102
3 Splice Pack, SP102
4 Fuse Block - Underhood C1
5 C186
6 C168
7 C131
8 Splice Pack, SP101
9 G101
10 C119
Fig 6: Identifying Instrument Panel And Passenger Compartment Components
GM1252421Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dimmer/Head Up Display (HUD) Switch
2 Turn Signal/Multifunction Switch
3 Inflatable Restraint Steering Wheel Module
4 Instrument Panel Cluster (IPC)
5 Air Temperature Sensor - Inside
6 Windshield Wiper/Washer Switch
7 Driver Information Center (DIC) Switch
8 Hazard Switch
9 CD Changer
10 Valet Switch
11 Inflatable Restraint I/P Module
12 Inflatable Restraint I/P Module Disable Switch
13 I/P Compartment Lamp
14 Radio
15 HVAC Control Module
16 Cigar Lighter
17 Courtesy Lamp Switch - Console
18 Folding Top Switch
19 Inflatable Restraint I/P Module Disable Switch LED
20 Traction Control Switch
21 Auxiliary Power Outlet
22 Courtesy Lamp - Console
23 Automatic Transmission Shift Lever
24 Ignition Mode Switch
25 Steering Wheel Controls - Right
26 Horn Switch
27 Data Link Connector (DLC)
28 Steering Wheel Controls - Left
Fig 7: RR of the Engine Compartment Component View
GM1258722Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Battery
