Audio Amplifier C1 (UQS)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

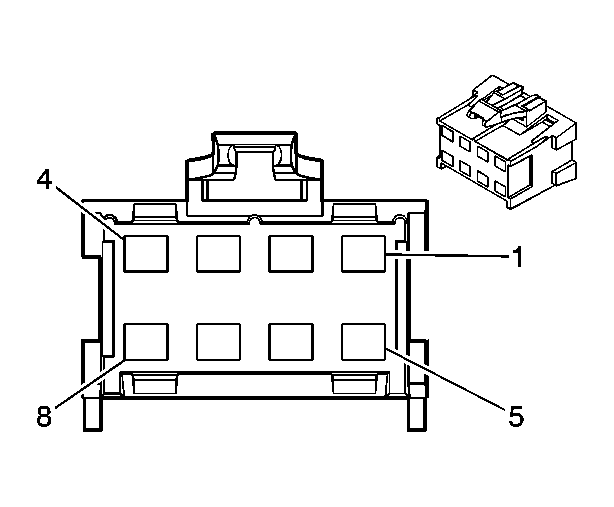

Fig 1: Audio Amplifier C1 (UQS) Connector End View

Courtesy of GENERAL MOTORS CORP.

Audio Amplifier C1 (UQS) Connector Part Information

Connector Part Information

OEM: 15134093
Service: 88988652
Description: 8-Way F Receptacle 2.8 (BK)

Terminal Part Information

Pins: 1-3, 5-7
Terminal/Tray: 8100-4444/22
Core/Insulation Crimp: 2/A
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Pins: 4, 8
Terminal/Tray: 8100-4445/22
Core/Insulation Crimp: F/D
Release Tool/Test Probe: 15315247/J-35616-35 (VT)

Audio Amplifier C1 (UQS) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	D-BU/WH	346	Rear Subwoofer Speaker Output (+)
2	L-GN/BK	1794	Rear Subwoofer Speaker Output (-)
3	L-BU/BK	315	Right Subwoofer Speaker Output (-)
4	RD/BK	1042	Battery Positive Voltage
5	OG	5756	Center Console Speaker (+)
6	OG/BK	5766	Console Center Speaker (-)
7	D-GN	1795	Rear Subwoofer Speaker Output (+)
8	BK	850	Ground
