Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

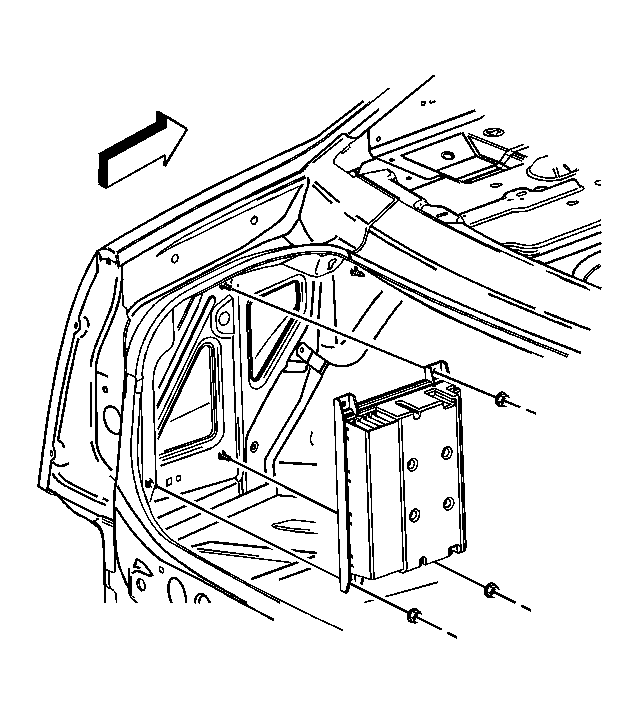

Fig 1: View Of Amplifier

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts securing the amplifier to the vehicle.
Tighten: Tighten the bolts (1) to 9 N.m (80 lb in).
Install the rear compartment trim. Refer to Rear Compartment Trim Panel Replacement in Body Rear End.
Refer to Control Module References for programming and setup information.
