Radio Antenna Module Replacement (Wagon)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

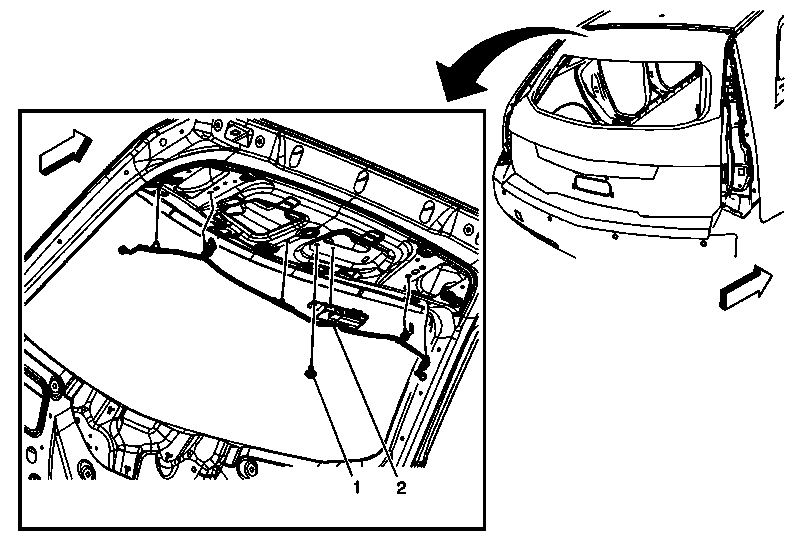

Fig 1: Radio Antenna Module (Wagon)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement (Wagon) .
1	Radio Antenna Module Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Radio Antenna Module Assembly Procedure Disconnect the electrical connections. Disconnect the four integral retainers and the two integral bolt screws.

Callout

Component Name

Preliminary Procedure
Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement (Wagon) .

Radio Antenna Module Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Radio Antenna Module Assembly

Procedure

Disconnect the electrical connections.
Disconnect the four integral retainers and the two integral bolt screws.
