Accessory and Liftgate Control Module Replacement (Wagon)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

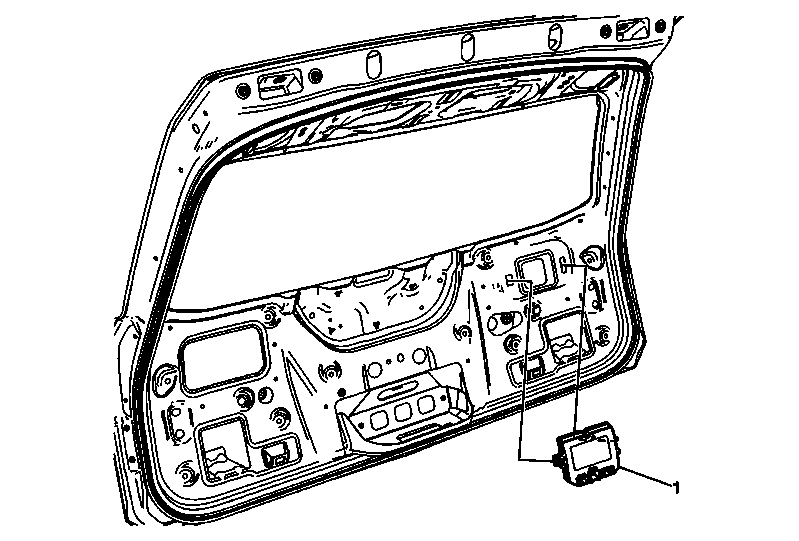

Fig 1: Accessory And Liftgate Control Module (Wagon)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement (Wagon) .
1	Accessory and Liftgate Control Module Procedure Disconnect the electrical connectors. Push in tabs to release module. Reprogram the control module if replaced. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement (Wagon) .

Accessory and Liftgate Control Module

Procedure

Disconnect the electrical connectors.
Push in tabs to release module.
Reprogram the control module if replaced. Refer to Control Module References .
