M51D Seat Horizontal Motor - Driver
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

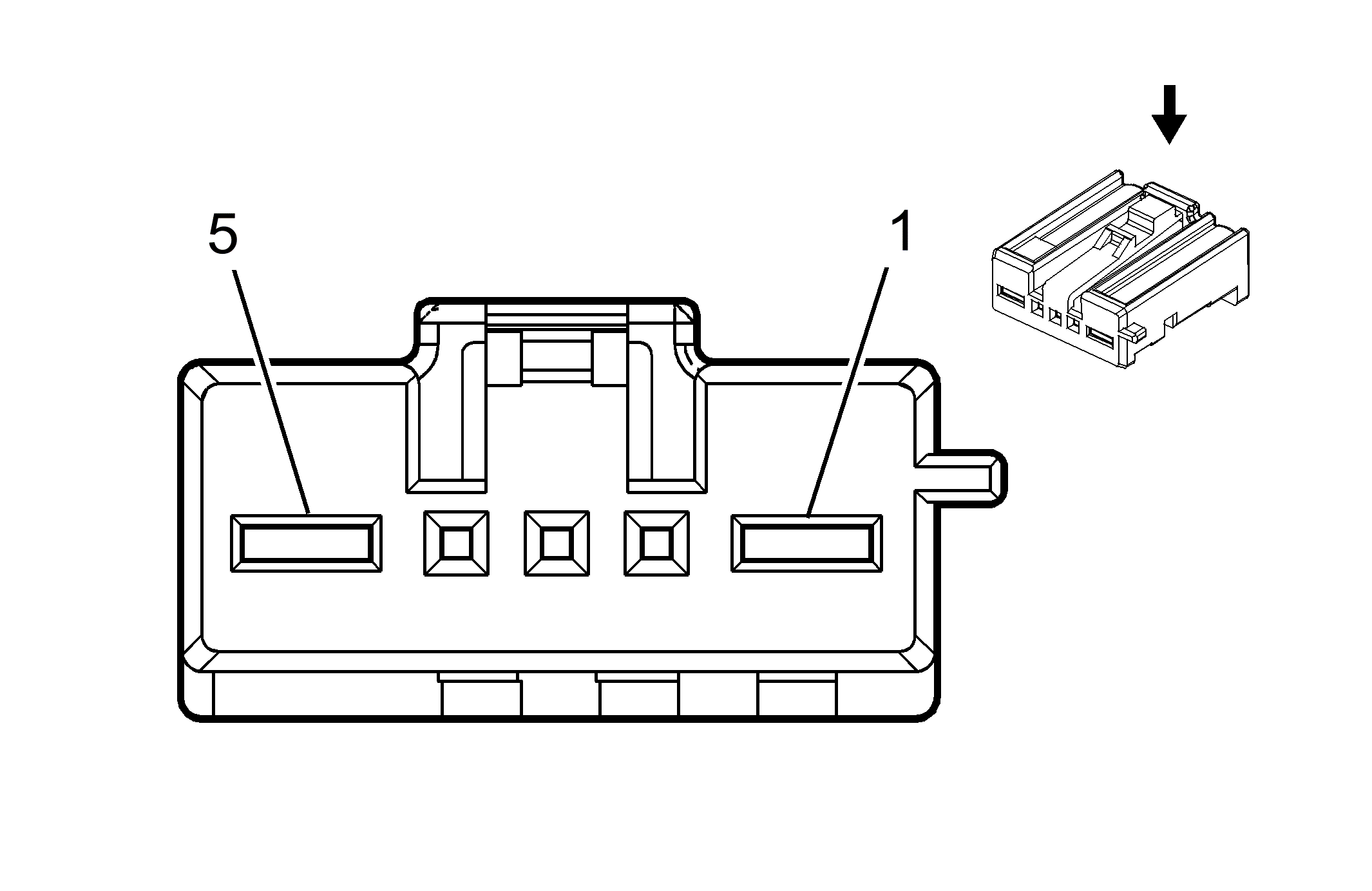

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | Pending | J-35616-4A (PU) | 12031876-1 | Service by Harness - See Part Catalog | Service by Harness - See Part Catalog | Not Available | Not Available |
M51D Seat Horizontal Motor - Driver
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 1 | TN | 285 | Driver Seat Horizontal Motor Forward Control | I | - |
| 2-4 | - | - | - | Not Occupied | - | - |
| 5 | 1 | L-GN | 284 | Driver Seat Horizontal Motor Rearward Control | I | - |
