Rear Video Display (U42)

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

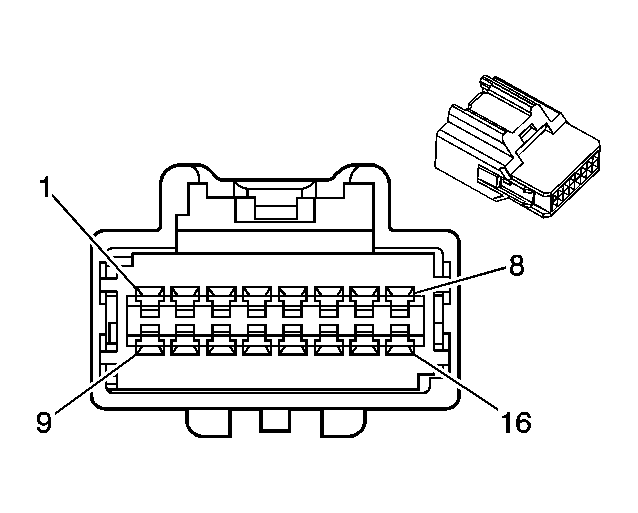

Fig 1: Rear Video Display (U42) Connector End View

Courtesy of GENERAL MOTORS CORP.

Rear Video Display (U42) Connector Part Information

Connector Part Information

OEM: 6-1419167-1
Service: See Catalog
Description: 16-Way M TAB 0.64 (BK)

Terminal Part Information

Terminal/Tray: 2-1419158-5/28
Core/Insulation Crimp: E/E
Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)

Rear Video Display (U42) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	OG/BK	5329	Left Infra Red Audio Signal
2	OG/BK	5331	Remote Infra Red Signal (+)
3	L-BU	5826	Left DVD Audio Signal (+)
4	WH	7066	Entertainment Remote Enable Signal
5	WH/BK	5335	DVD Video Signal (-)
6	RD/WH	3240	Battery Positive Voltage
7	TN/WH	5830	Remote Infra Red Signal (-)
8	BN/WH	5831	Infra Red Audio Low Reference
9	PU/WH	5330	Right Infra Red Audio Signal
10	PU	6979	DVD Audio Common
11	WH	5828	Right DVD Audio Signal (+)
12	BARE	6976	DVD Video Drain Wire
13	D-GN	6975	DVD Video Signal (+)
14	BK/WH	851	Ground
15	PK	5829	Infra Red Module Supply Voltage
16	PK/BK	5844	Video Bright Control
