Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

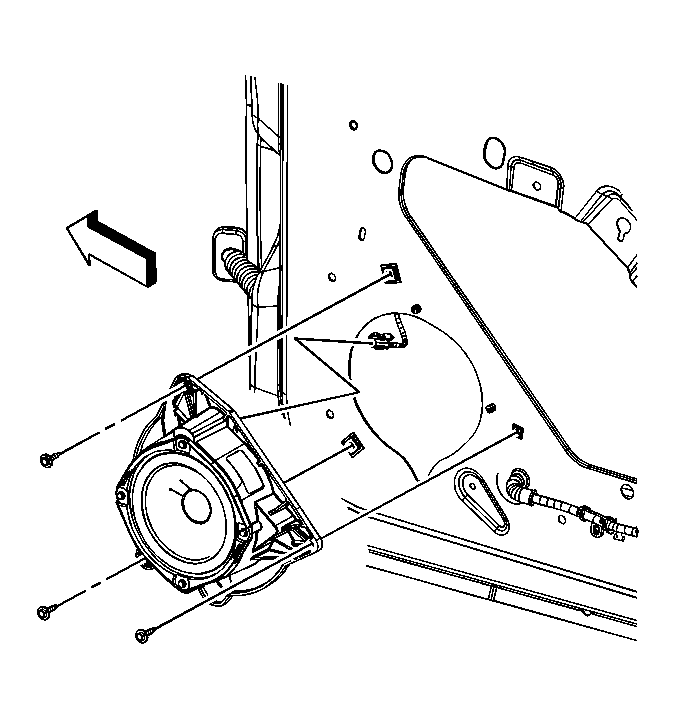

    Fig 1: View Of Front Lower Speaker
    GM1463917Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1).
  2. Install the speaker (2) onto the door frame.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the screws (3) securing the speaker to the door frame.

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the door trim panel. Refer to Front Side Door Trim Panel Replacement .
