Amplifier Inputs (UQA or UQS)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

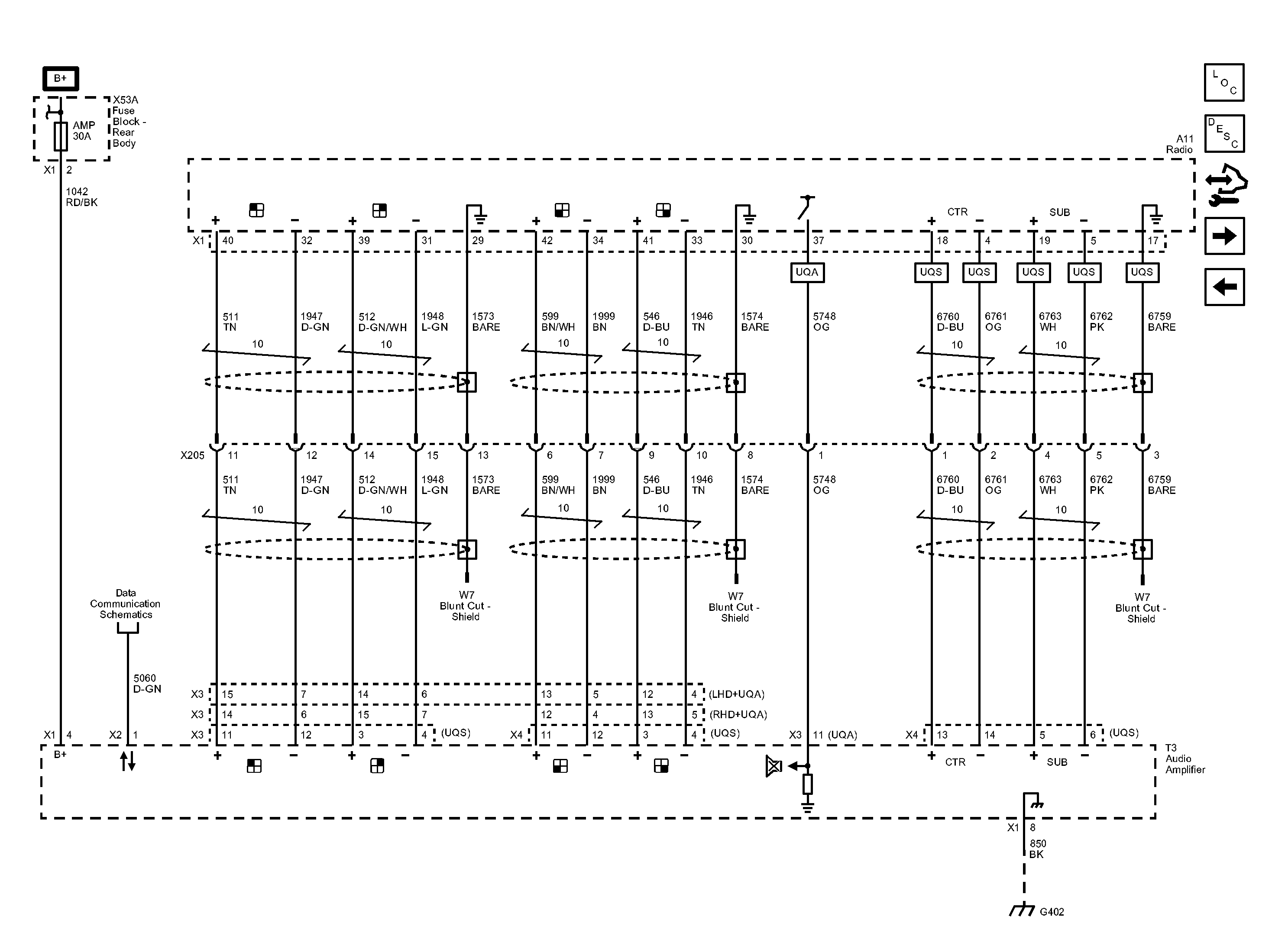

Fig 1: Amplifier Inputs Wiring Schematic (UQA or UQS)
GM2779006Courtesy of GENERAL MOTORS COMPANY
