S78 Turn Signal/Multifunction Switch X2
WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

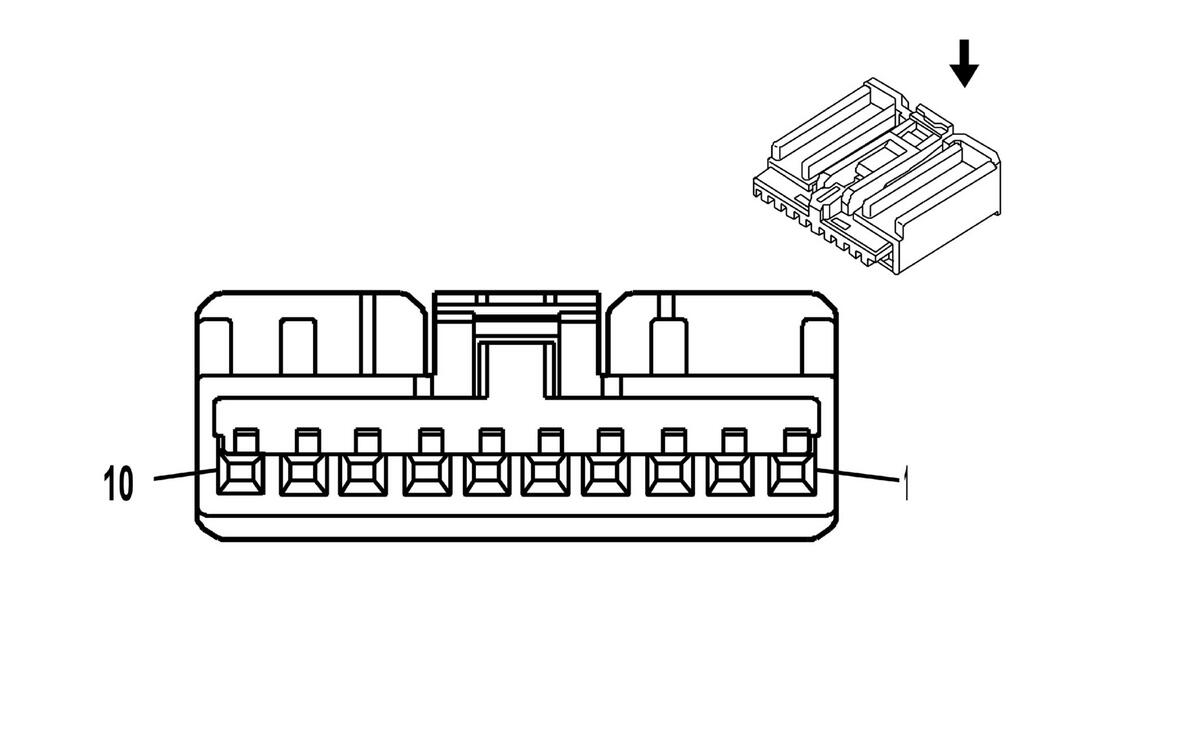

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575845 | J-35616-64B (L-BU) | J-38125-215A | SAIT-A03T-M064 | 14 | P | P |
S78 Turn Signal/Multifunction Switch X2
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1-6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | PU | 524 | Headlamp Dimmer Switch High Beam Signal | I | - |
| 8 | 0.35 | BK/WH | 651 | Ground | I | - |
| 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 | BN | 1356 | Flash To Pass Switch Signal | I | - |
