Fuel Pump Flow Control Module Replacement (Wagon)

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

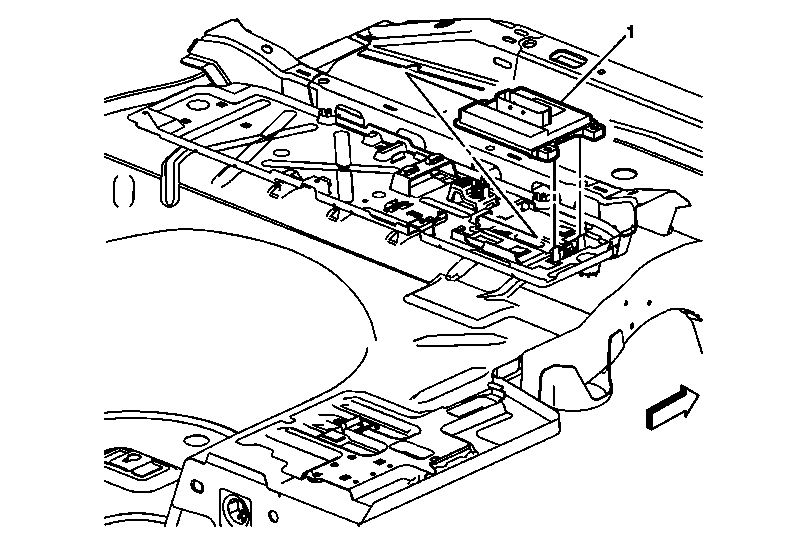

Fig 1: Fuel Pump Flow Control Module (Wagon)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment stowage cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement (Wagon) .
1	Fuel Pump Flow Control Module CAUTION: Refer to Fastener Caution . Procedure Release the retaining tabs. Disconnect the electrical connector. If replacing, reprogram the control module. Refer to Service Programming System (SPS) . Tighten 9 N.m(80 lb in)

Callout

Component Name

Preliminary Procedure
Remove the rear compartment stowage cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement (Wagon) .

Fuel Pump Flow Control Module

CAUTION:

Refer to Fastener Caution .

Procedure

Release the retaining tabs.
Disconnect the electrical connector.
If replacing, reprogram the control module. Refer to Service Programming System (SPS) .

Tighten
9 N.m(80 lb in)
