Radio C3 (Japan)

WARNING: This page is about a different car, the 2007 Cadillac XLR. However, it is still accessible from the selected car via links, so may be relevant.

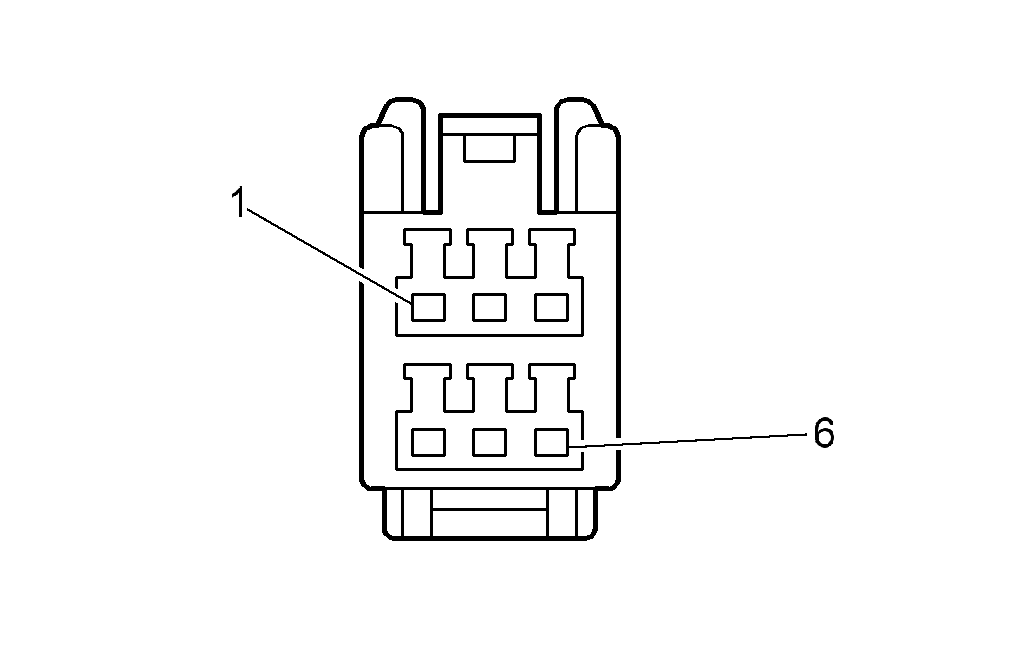

Fig 1: Radio C3 (Japan) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio C3 (Japan) Connector Parts Information

Connector Part Information

OEM: 15383013
Service: 88953363
Description: 6-Way F (WH)

Terminal Part Information

Pins: 2, 3, 5, 6
Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-6 (BN)

Radio C3 (Japan) Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	YE	5385	Vehicle Identification Communication System Bus Request Signal (Japan)
3	GY	5383	Vehicle Identification Communication System High Signal (Japan)
4	-	-	Not Used
5	BARE	514	Drain Wire (Japan)
6	BN	5384	Vehicle Identification Communication System Low Signal (Japan)
