Door Control Module Schematics

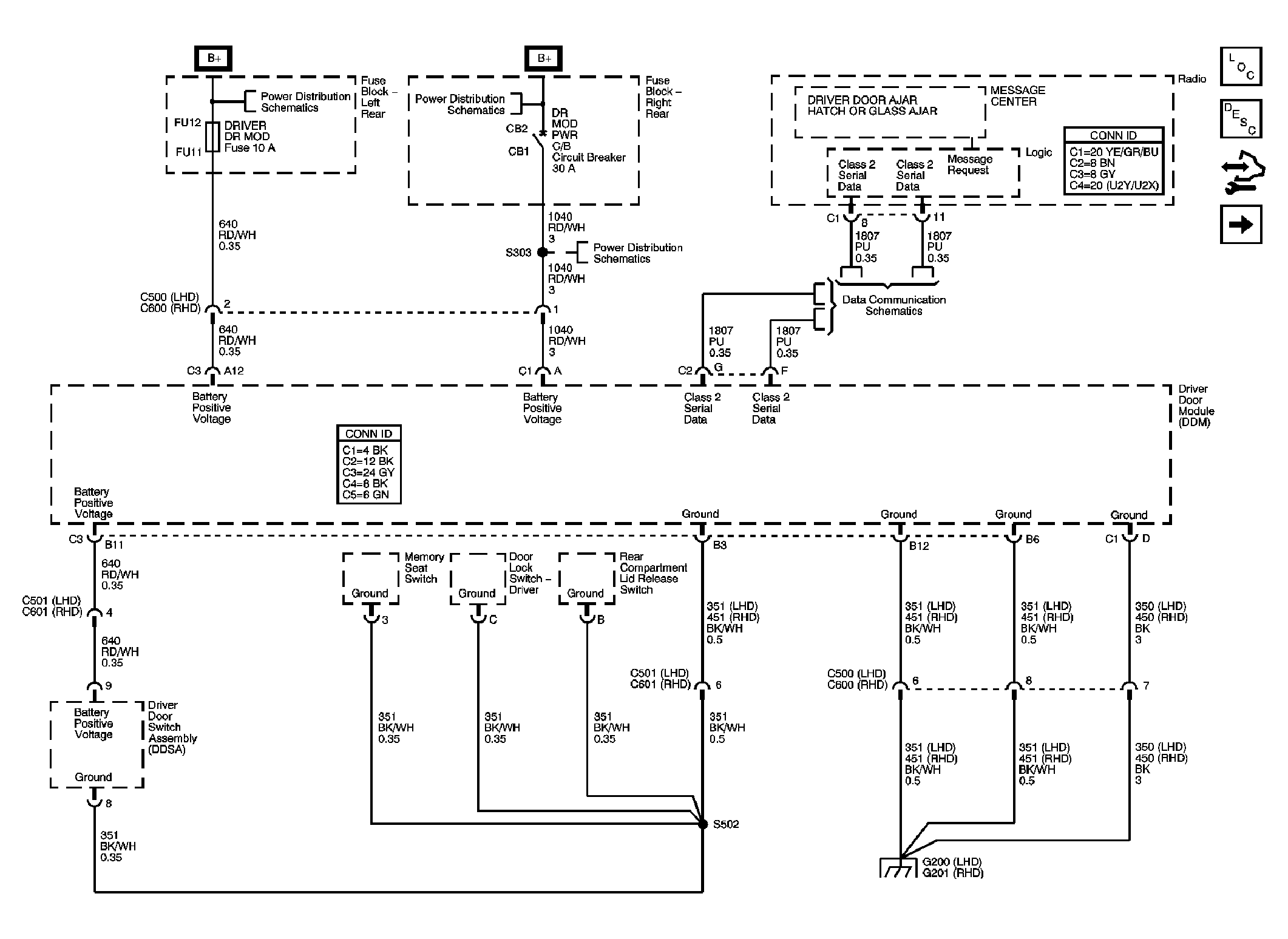

Fig 1: Driver Door Module (DDM) Power, Ground, and Serial Data Schematics
GM1788055Courtesy of GENERAL MOTORS CORP.

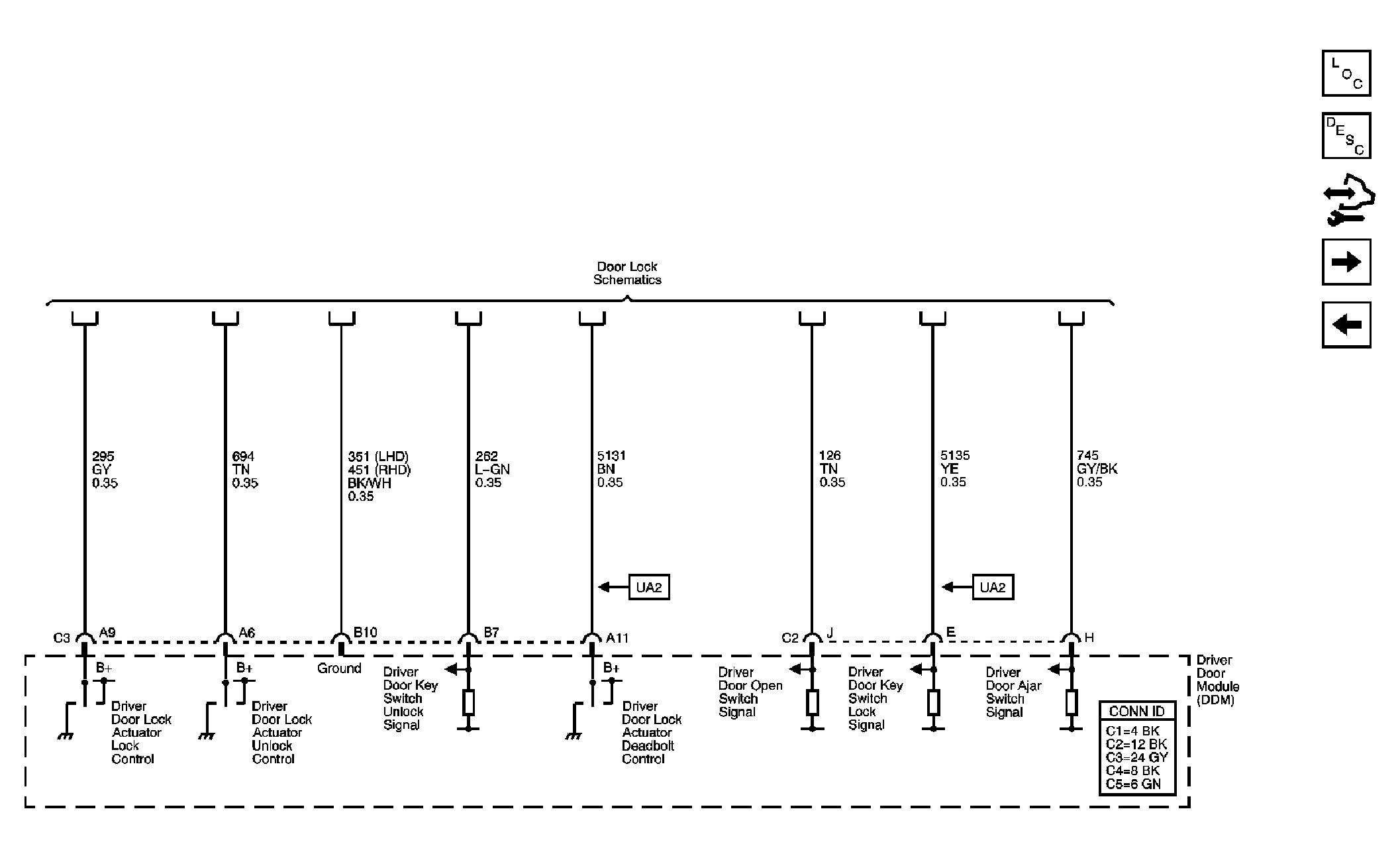

Fig 2: DDM Controlled/Monitored Subsystem References Schematics 1 of 2
GM1788056Courtesy of GENERAL MOTORS CORP.

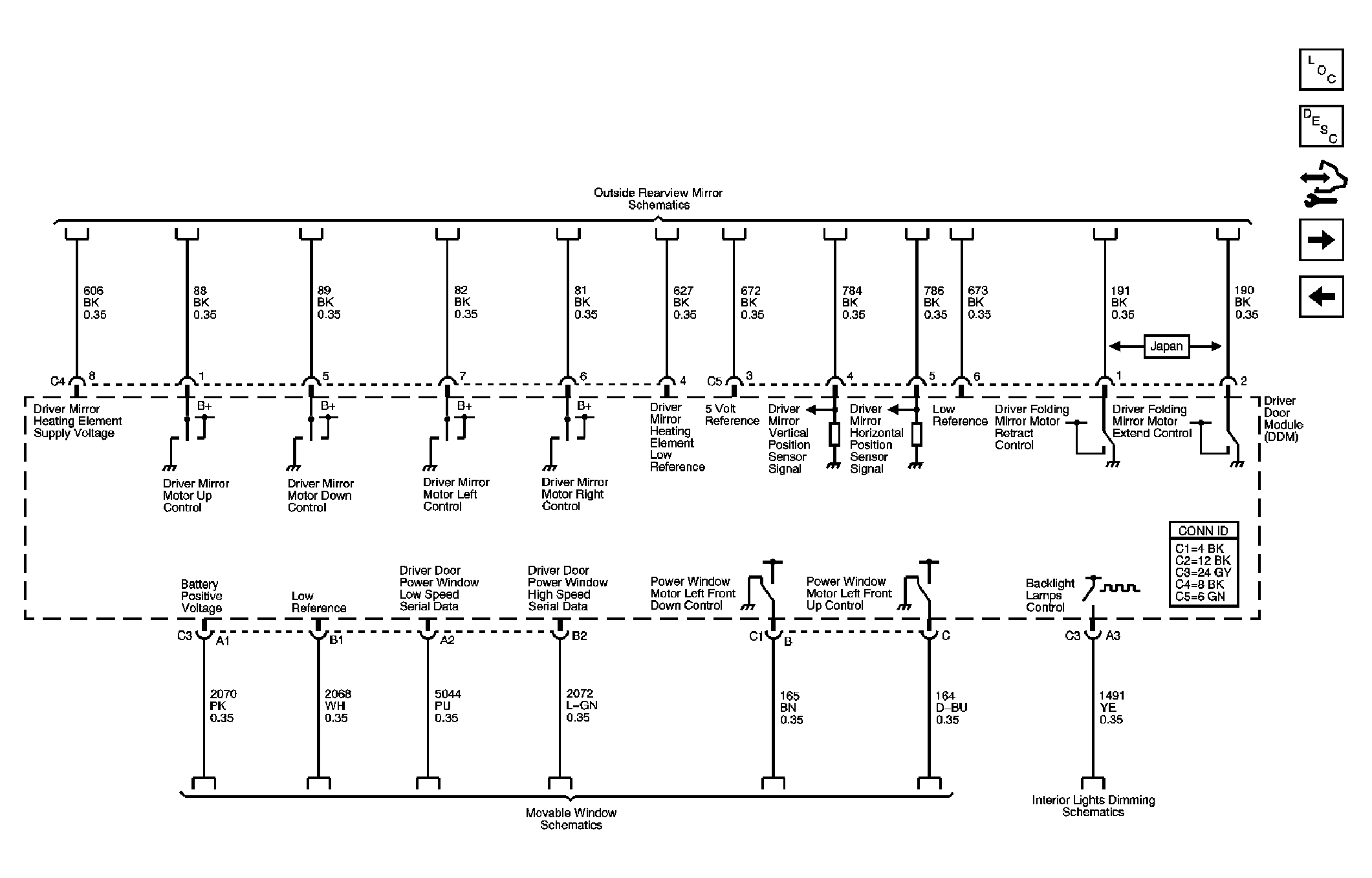

Fig 3: DDM Controlled/Monitored Subsystem References Schematics 2 of 2
GM1788058Courtesy of GENERAL MOTORS CORP.

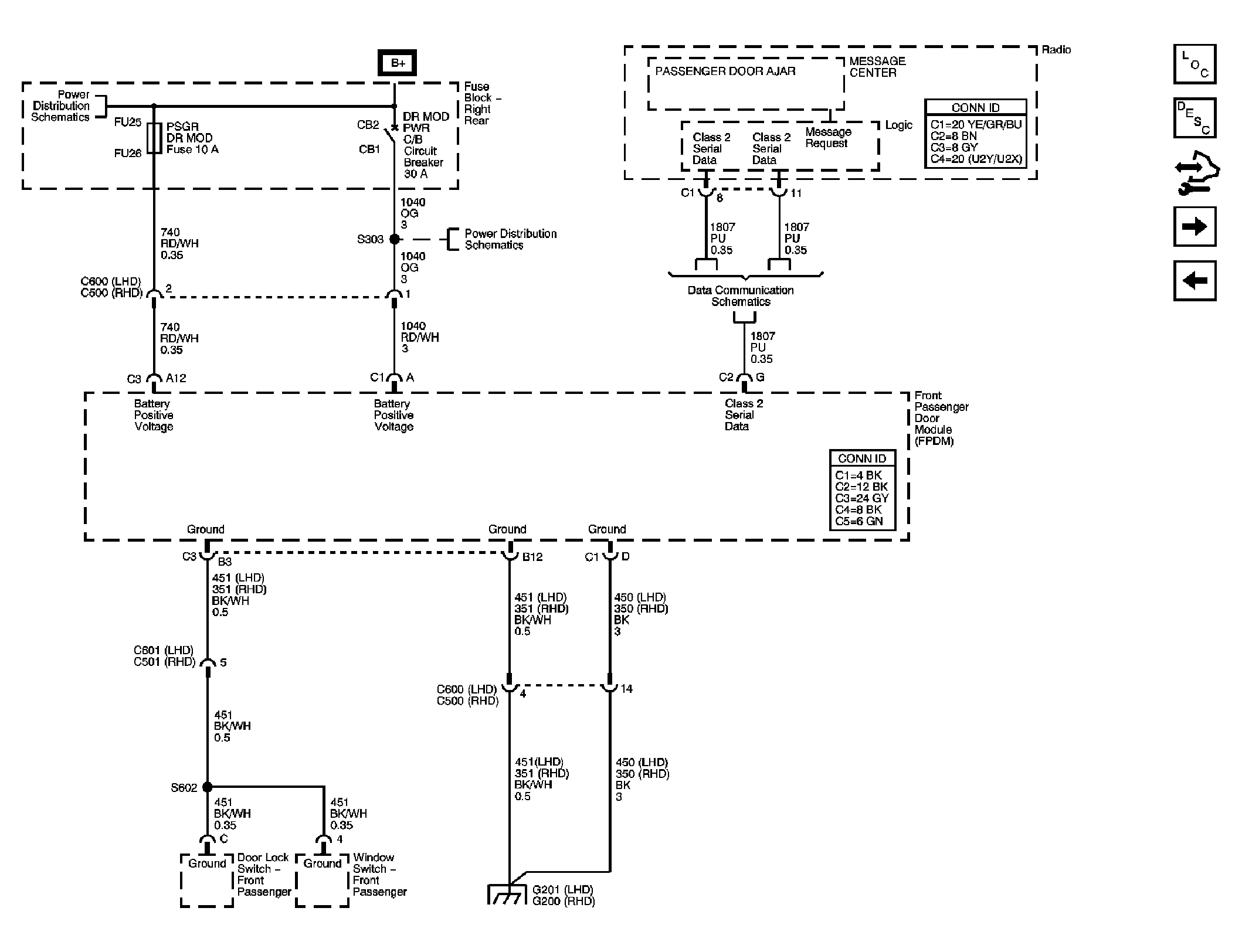

Fig 4: Front Passenger Door Module (FPDM) Power, Ground, and Serial Data Schematics
GM1788059Courtesy of GENERAL MOTORS CORP.

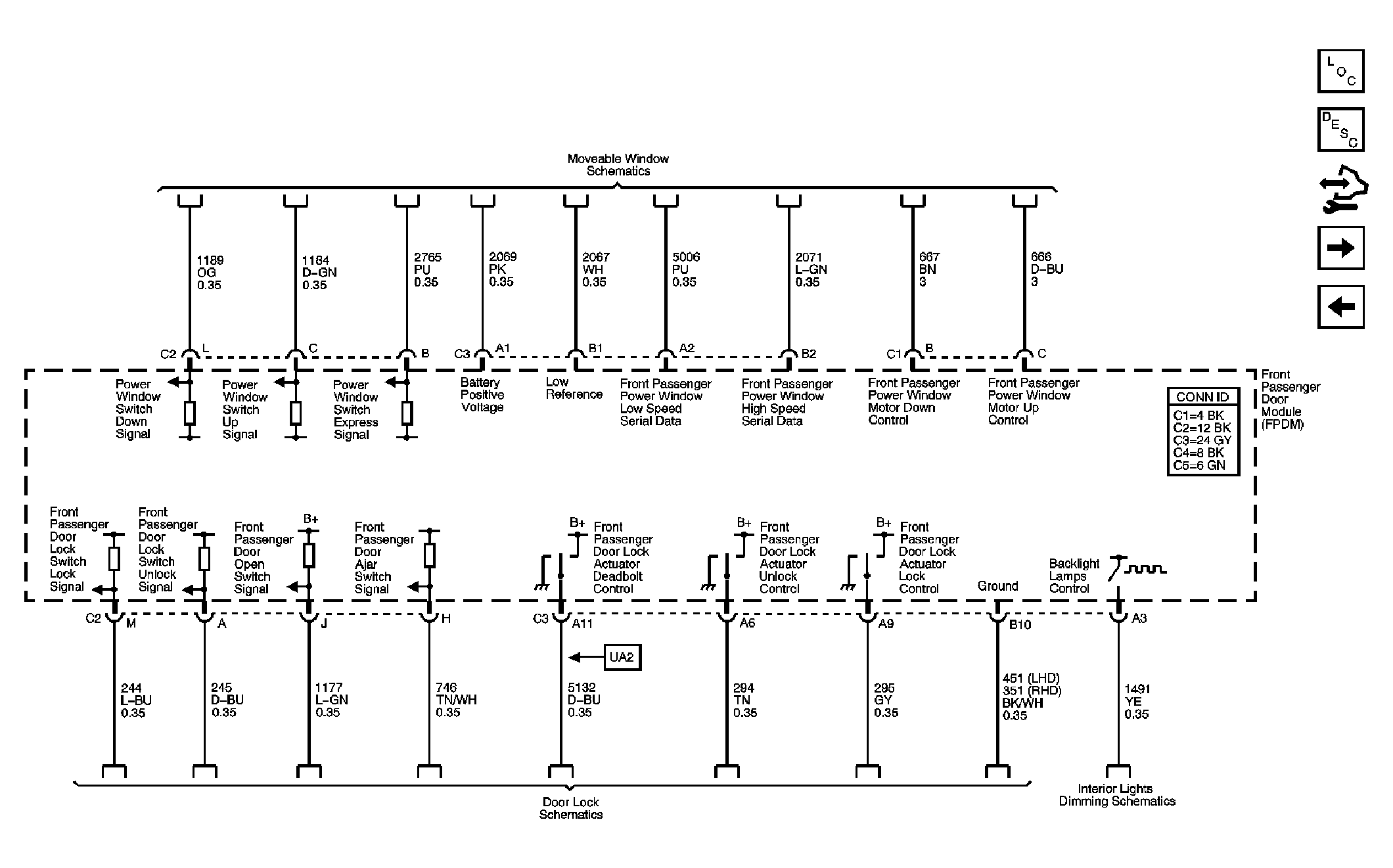

Fig 5: FPDM Controlled/Monitored Subsystem References Schematics 1 of 2
GM1788061Courtesy of GENERAL MOTORS CORP.

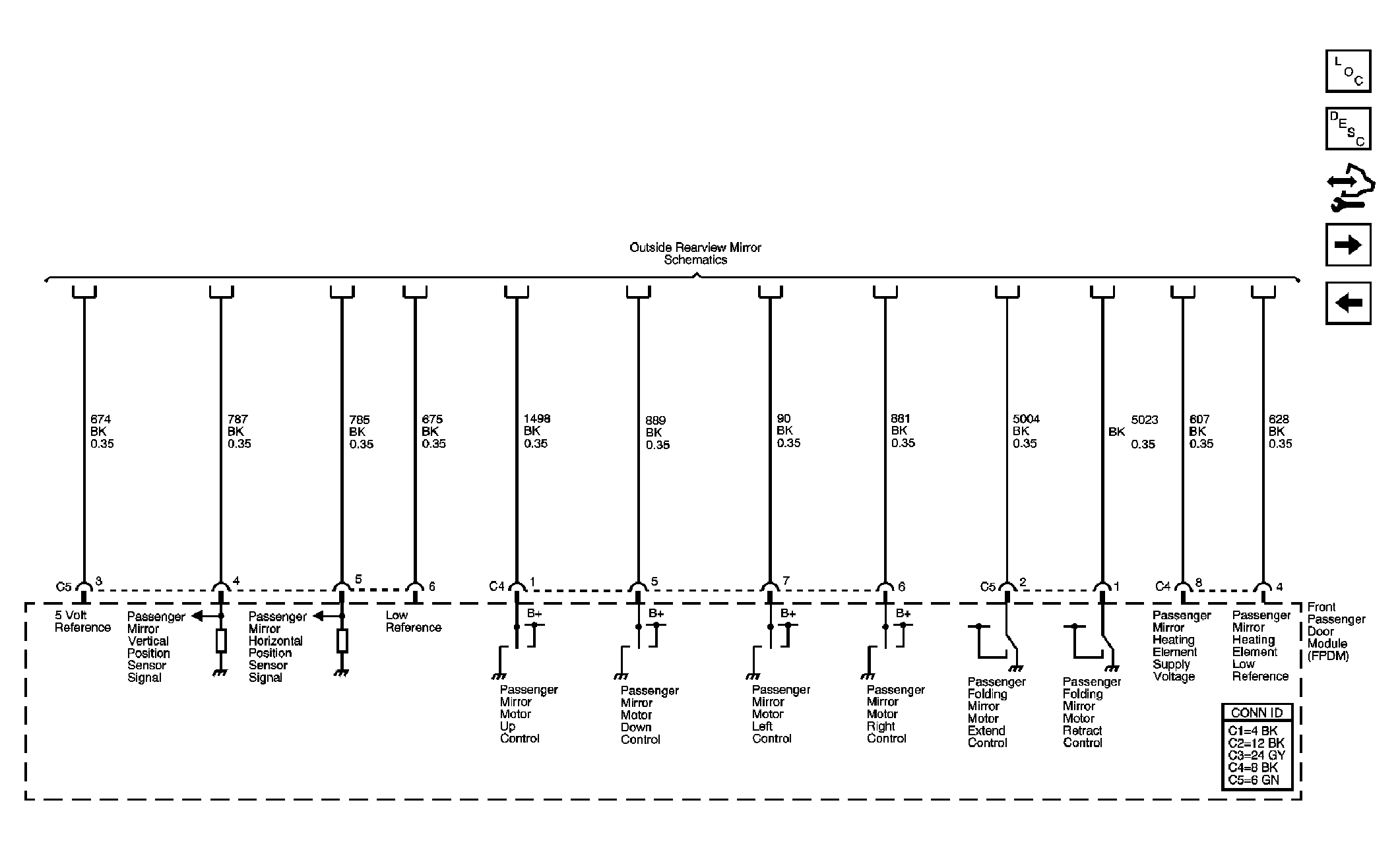

Fig 6: FPDM Controlled/Monitored Subsystem References Schematics 2 of 2
GM1788063Courtesy of GENERAL MOTORS CORP.

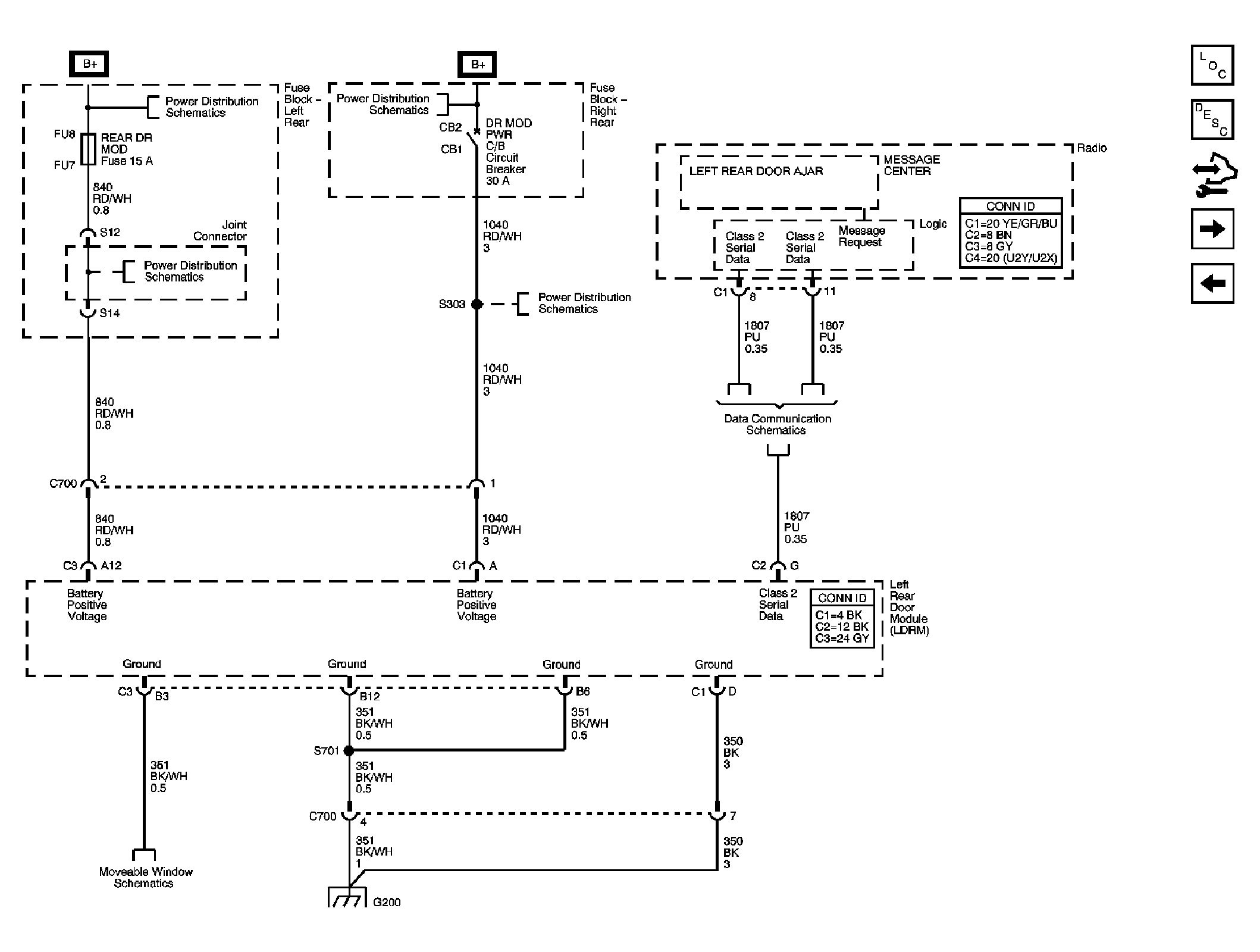

Fig 7: Left Rear Door Module (LRDM) Power, Ground, and Serial Data Schematics
GM1788065Courtesy of GENERAL MOTORS CORP.

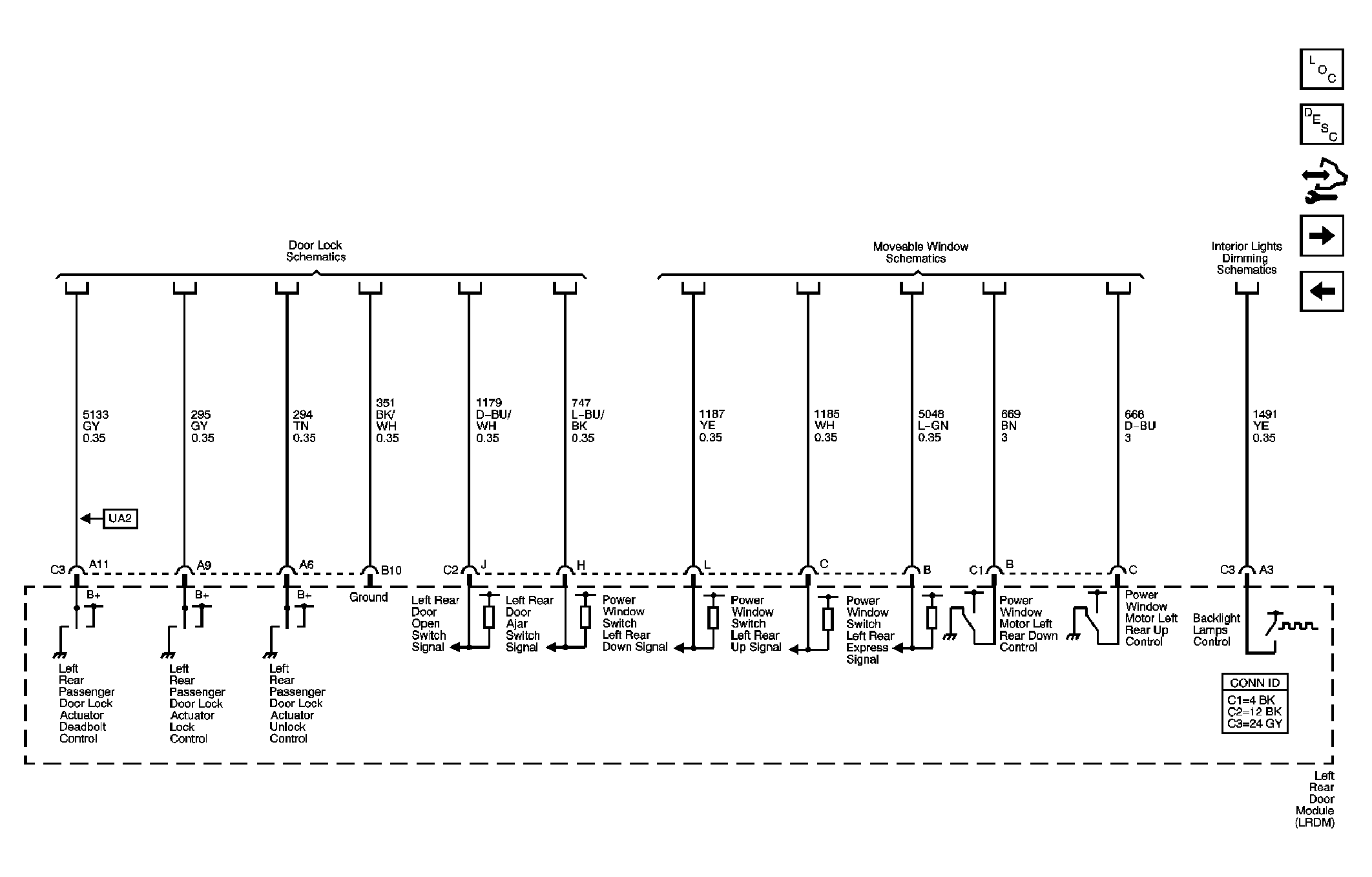

Fig 8: LRDM Controlled/Monitored Subsystem References Schematics
GM1788067Courtesy of GENERAL MOTORS CORP.
Fig 9: Right Rear Door Module (RRDM) Power, Ground, and Serial Data Schematics
GM1788075Courtesy of GENERAL MOTORS CORP.

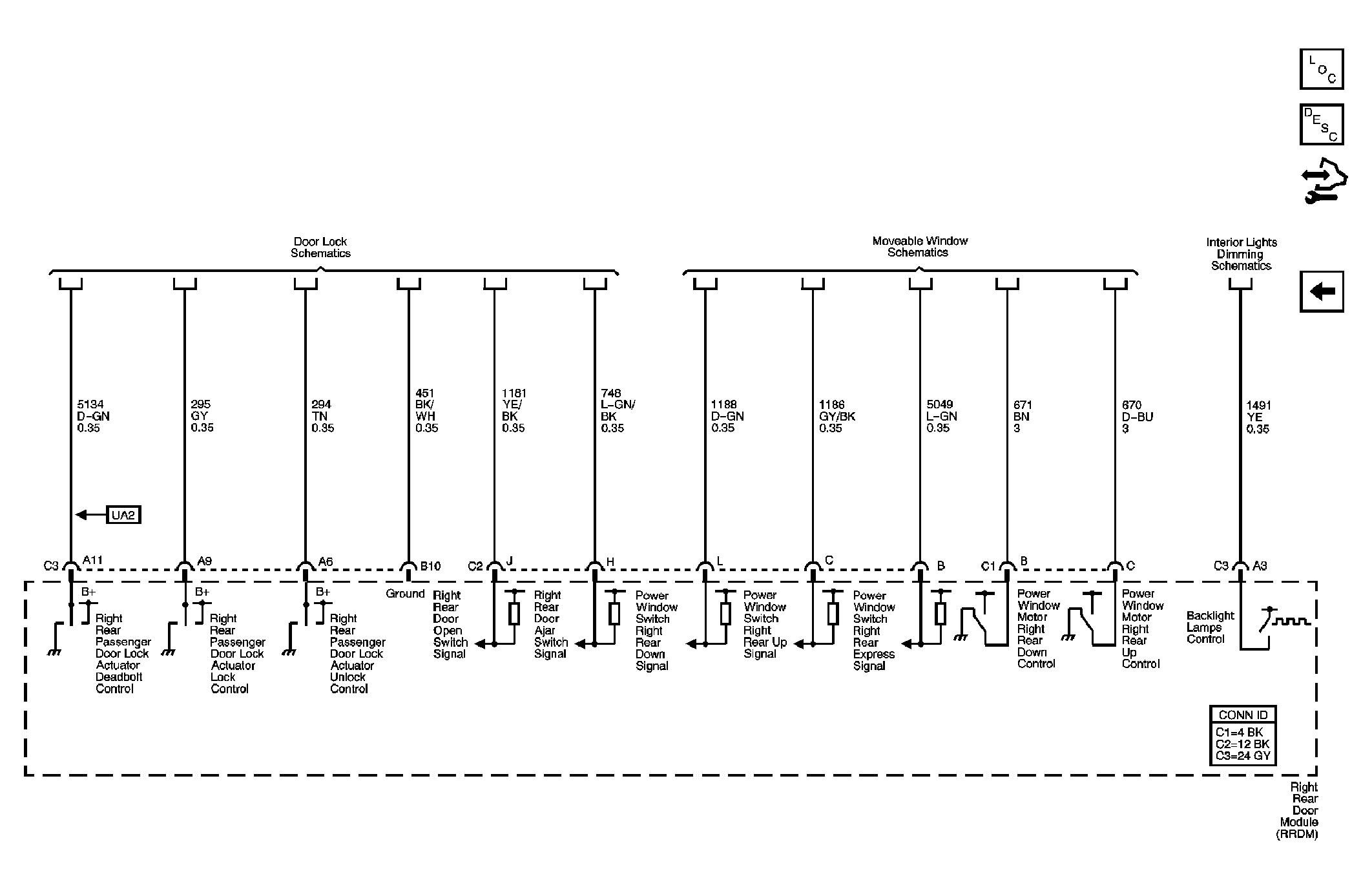

Fig 10: RRDM Controlled/Monitored Subsystem References Schematics
GM1788079Courtesy of GENERAL MOTORS CORP.
