Driver Door Module (DDM) C2

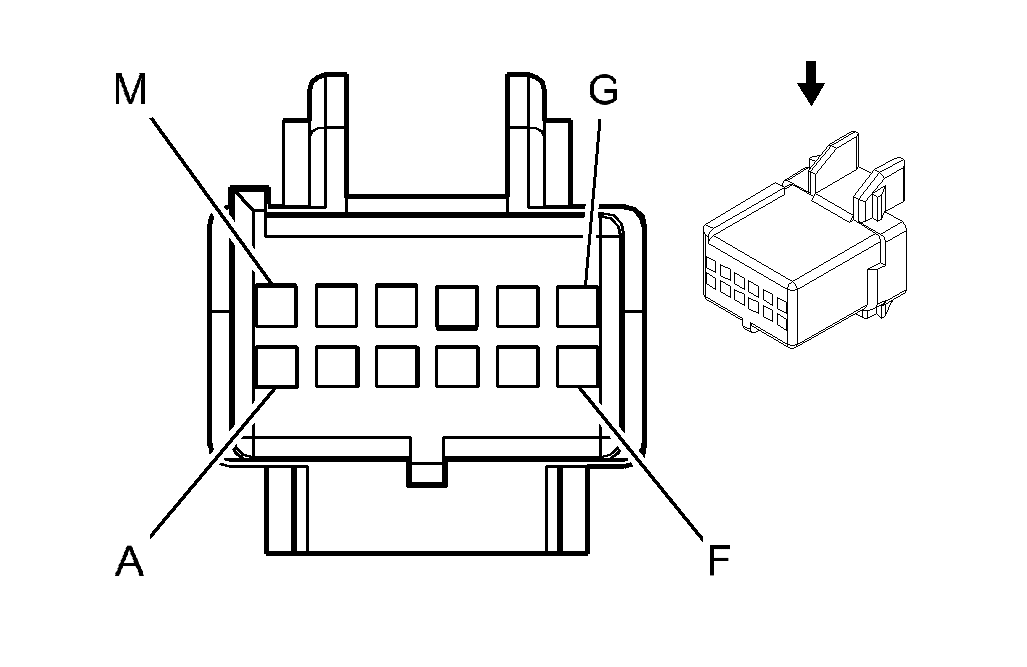

Fig 1: Driver Door Module (DDM) C2 Connector End Views
GM73151Courtesy of GENERAL MOTORS CORP.
Driver Door Module (DDM) C2 Connector & Terminal Parts Information

Connector Part Information
  • OEM: 12064799
  • Service: 15305996
  • Description: 12-Way F Micro-Pack 100 Series (BK)
Terminal Part Information
  • Pins: E, F, G, H, J
  • Terminal/Tray: 12146447/3
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 12031876-1/J-35616-6 (BN)
Driver Door Module (DDM) C2 Terminal Identification

Pin Wire Color Circuit No. Function
A-D - - Not Used
E YE 5135 Driver Door Key Switch Lock Signal
F PU 1807 Class 2 Serial Data
G PU 1807 Class 2 Serial Data
H GY/BK 745 Driver Door Ajar Switch Signal
J TN 126 Driver Door Open Switch Signal
K-M - - Not Used
