Installation Procedure

  1. Install the memory seat module.
    2. NOTE: Refer to Fastener Notice .
    Fig 1: Locating Memory Seat Module & Heated Seat Module Retaining Screws
    GM792015Courtesy of GENERAL MOTORS CORP.
  2. Install the memory seat module screws (1).

    Tighten:  Tighten the screws 2 N.m (18 lb in).

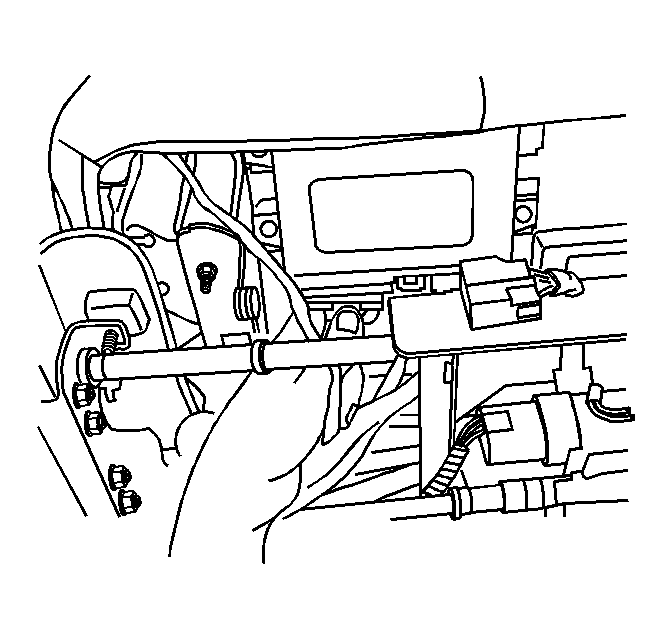

    3. Fig 2: View Of Memory Seat Module
    GM792019Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connections to the module.
  4. Install the front seat cushion. Refer to Front Seat Cushion Replacement .
  5. Calibrate the seat. Refer to Control Module References for programming and setup information.
