Window Systems Component Views

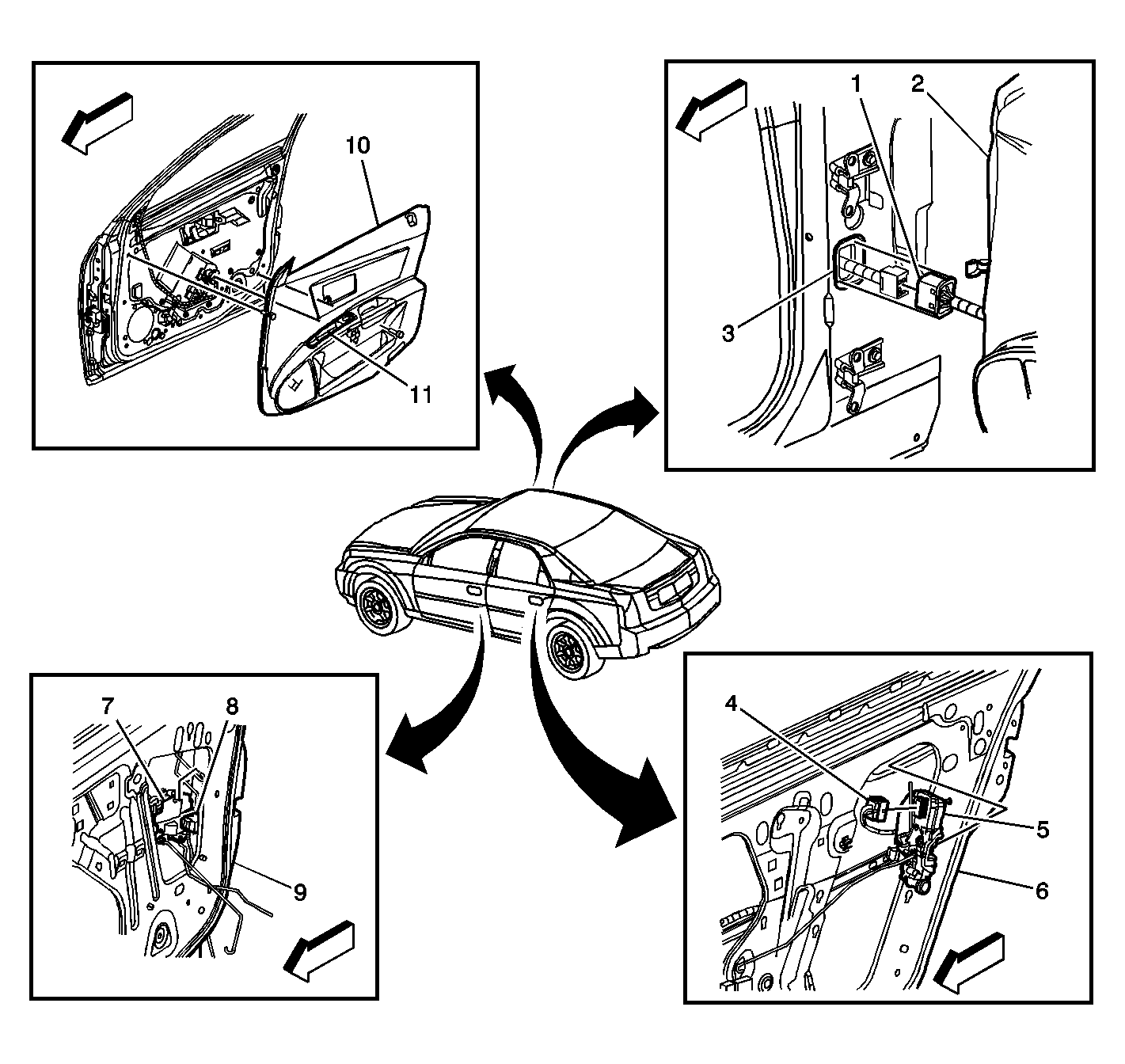

Fig 1: Door Lock Subsystem Component Views
GM801223Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C600 (LHD) (RHD and C500 Similar)
2 Front Passenger Door (LHD) (RHD Similar)
3 P600 (LHD) (RHD Similar)
4 Door Latch Assembly - Left Rear Connector (Right Rear Similar)
5 Door Latch Assembly - Left Rear (Right Rear Similar)
6 Left Rear Door
7 Door Latch Assembly - Driver (LHD) (RHD and Passenger Similar)
8 Door Latch Assembly - Driver Connector (LHD) (RHD and Passenger Similar)
9 Driver Door (LHD) (RHD Similar)
10 Passenger Door Trim Panel (LHD) (RHD and Driver Similar)
11 Left Front Door Window Switch/Mirror Switch/Heater Switch (LHD) (RHD and Driver Similar)

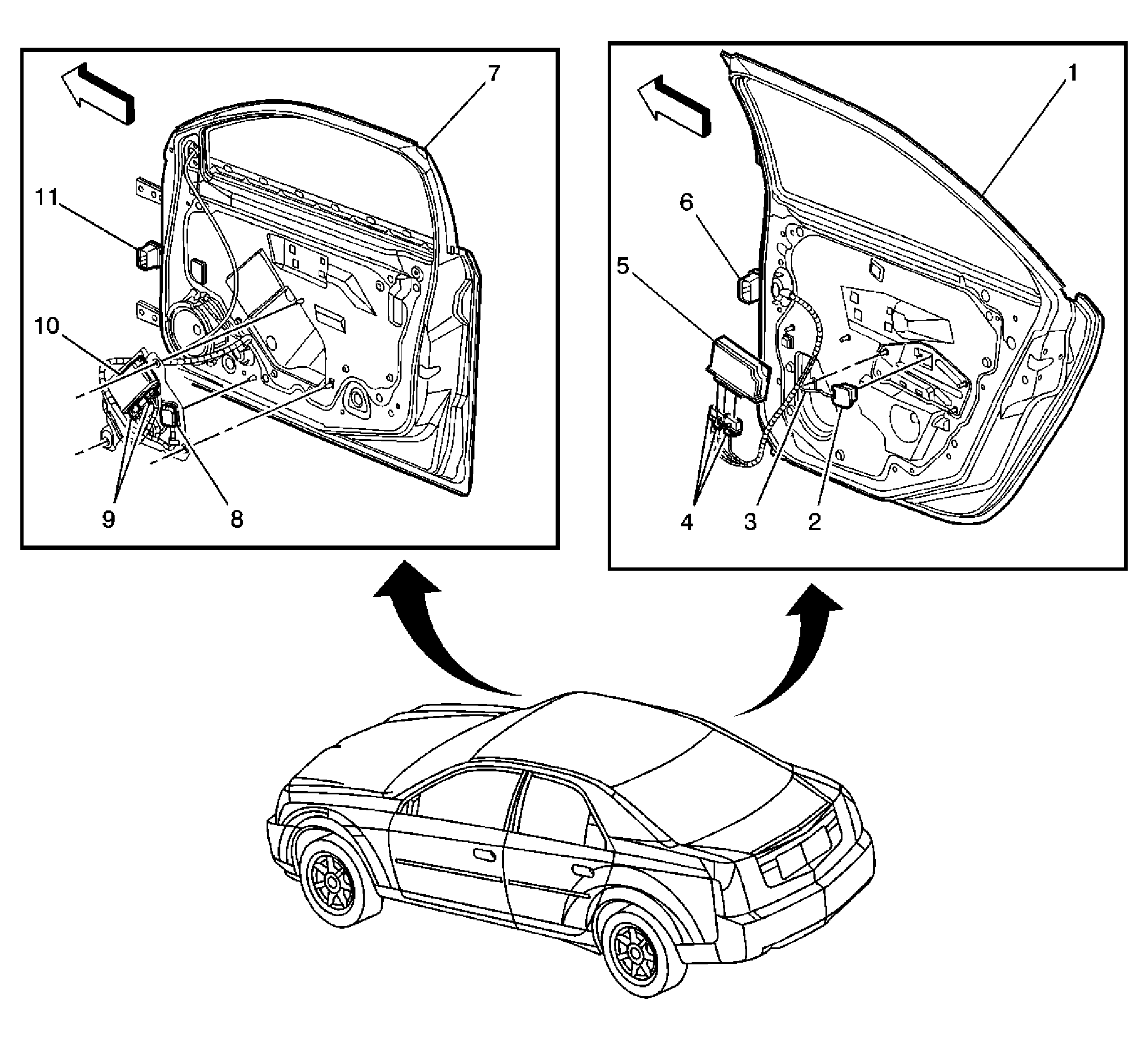

Fig 2: Door Control Module Component Views
GM1373992Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door - Right Rear
2 C801 (C701 similar)
3 Splice S801
4 Right Rear Door Module (RRDM) Connectors (LRDM similar)
5 Right Rear Door Module (RRDM) (LRDM similar)
6 C800 (C700 similar)
7 Door - Right Front
8 C601 (C501 similar)
9 Front Passenger Door Module (FPDM) Connectors (DDM similar)
10 Front Passenger Door Module (FPDM) (DDM similar)
11 C600 (C500 similar)

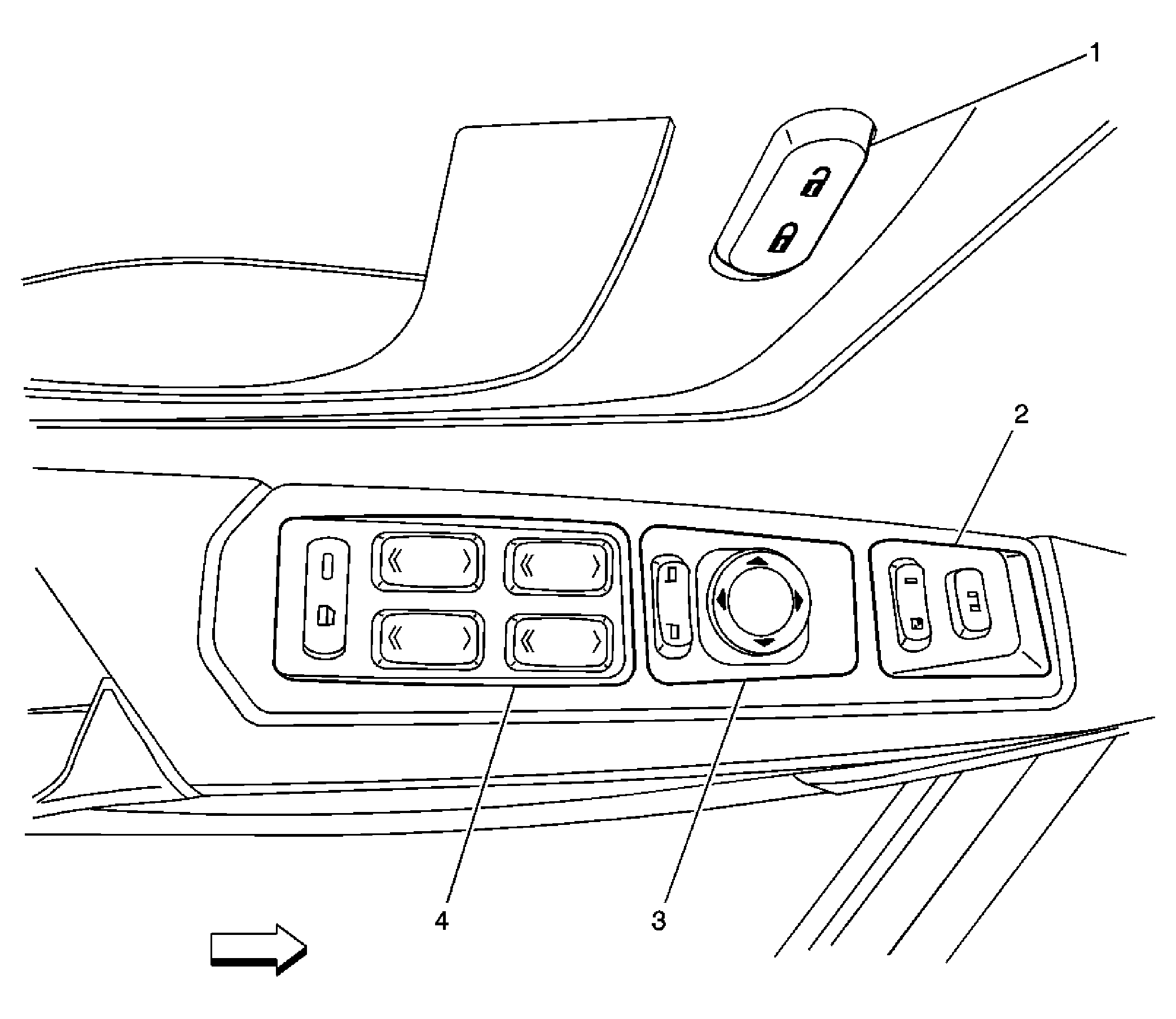

Fig 3: Driver Door Switches Component Views
GM1538569Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Power Lock Switch
2 Seat Memory Switch
3 Power Mirror Switch
4 Master Power Window Switch

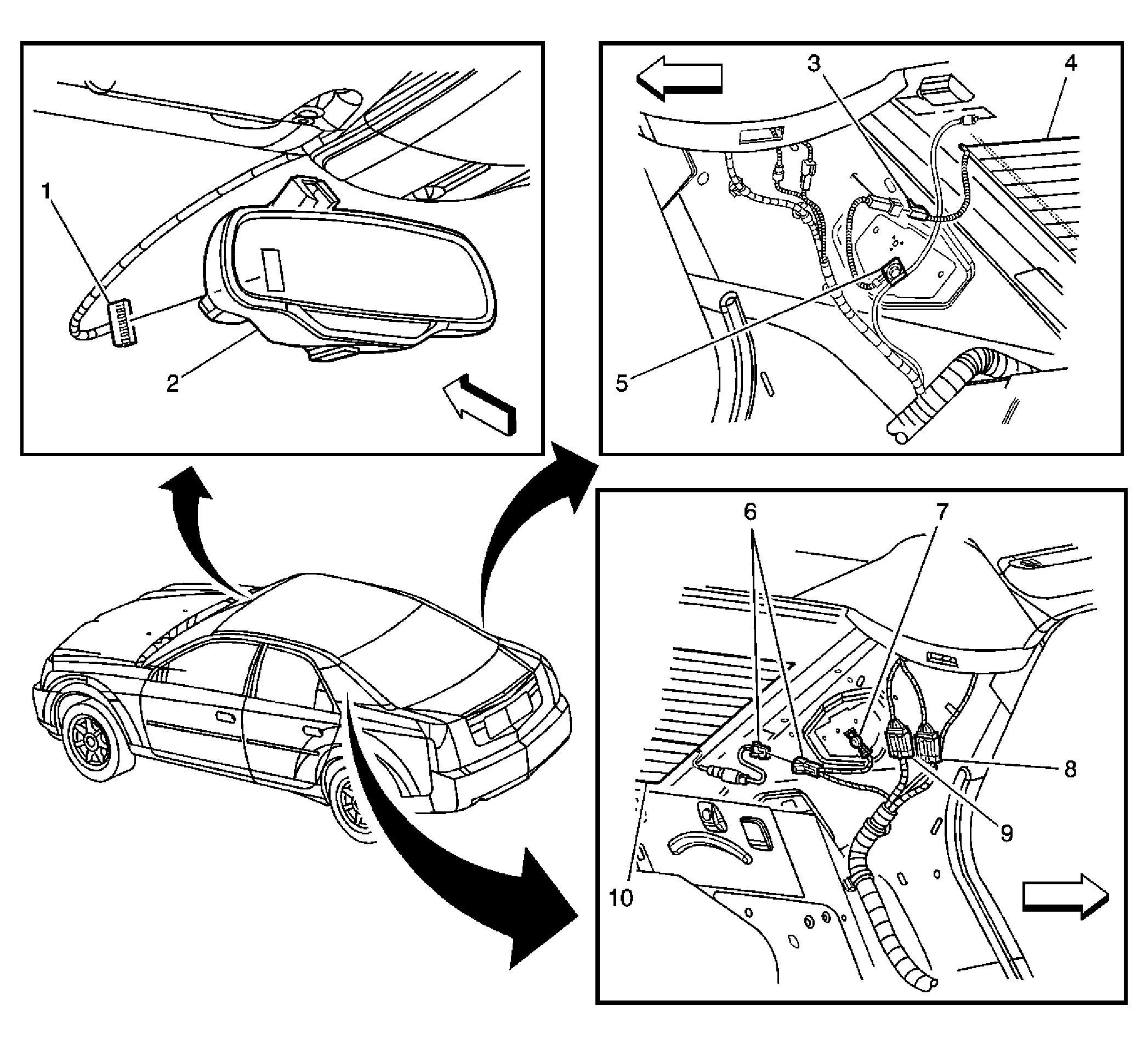

Fig 4: Inside Rearview Mirror and Rear Window Defogger Component Views
GM1376899Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rearview Mirror (ISRVM) Connector
2 Inside Rearview Mirror (ISRVM)
3 Rear Window Defogger Connector C2
4 Rear Window Defogger Grid
5 Ground G304
6 Rear Window Defogger Connector C1
7 Ground G303
8 C305
9 C308
10 Rear Window Defogger Grid

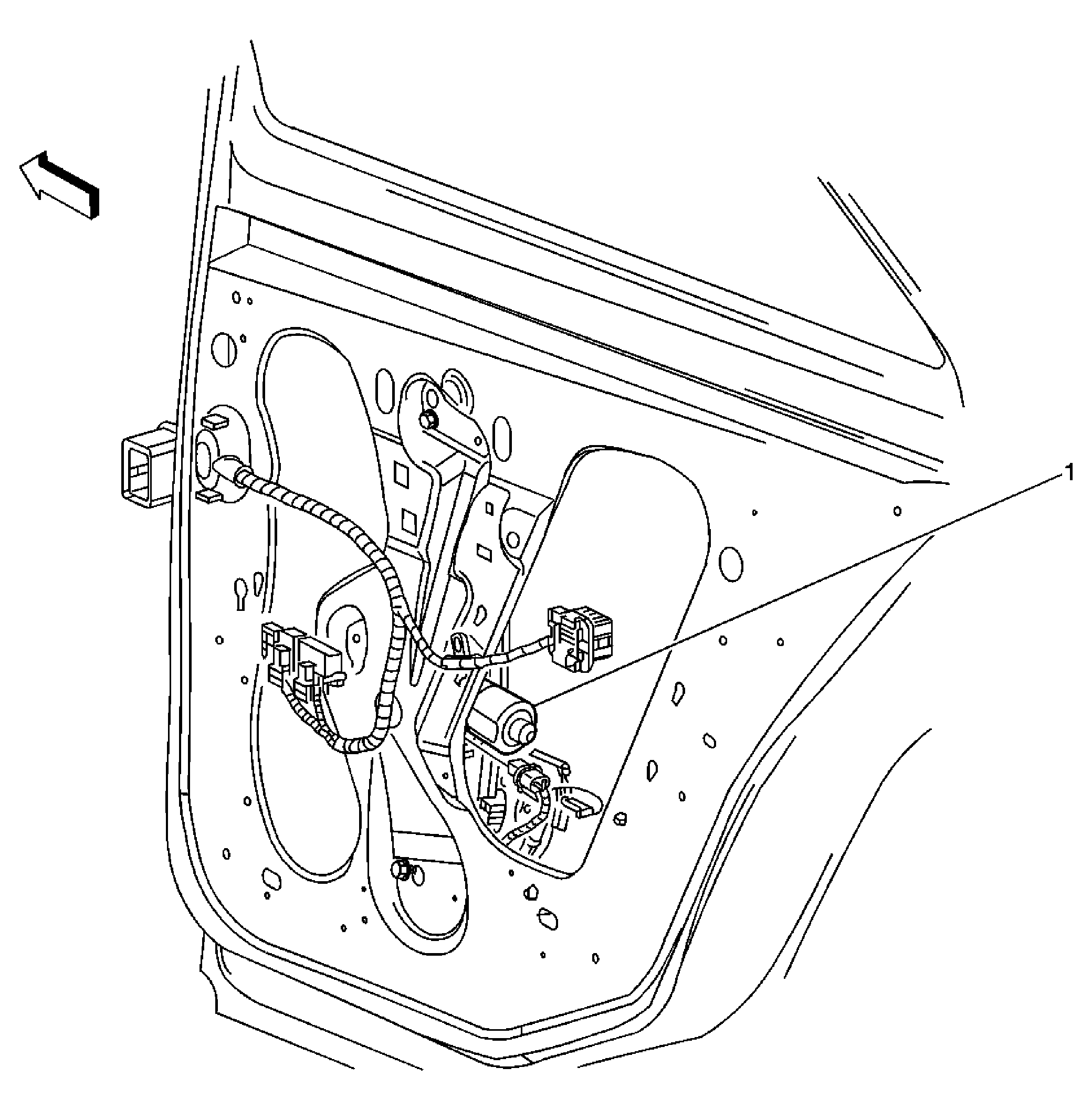

Fig 5: Right Rear Door Component Views (1 Of 2)
GM1538574Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Power Window Motor - Left Rear Similar

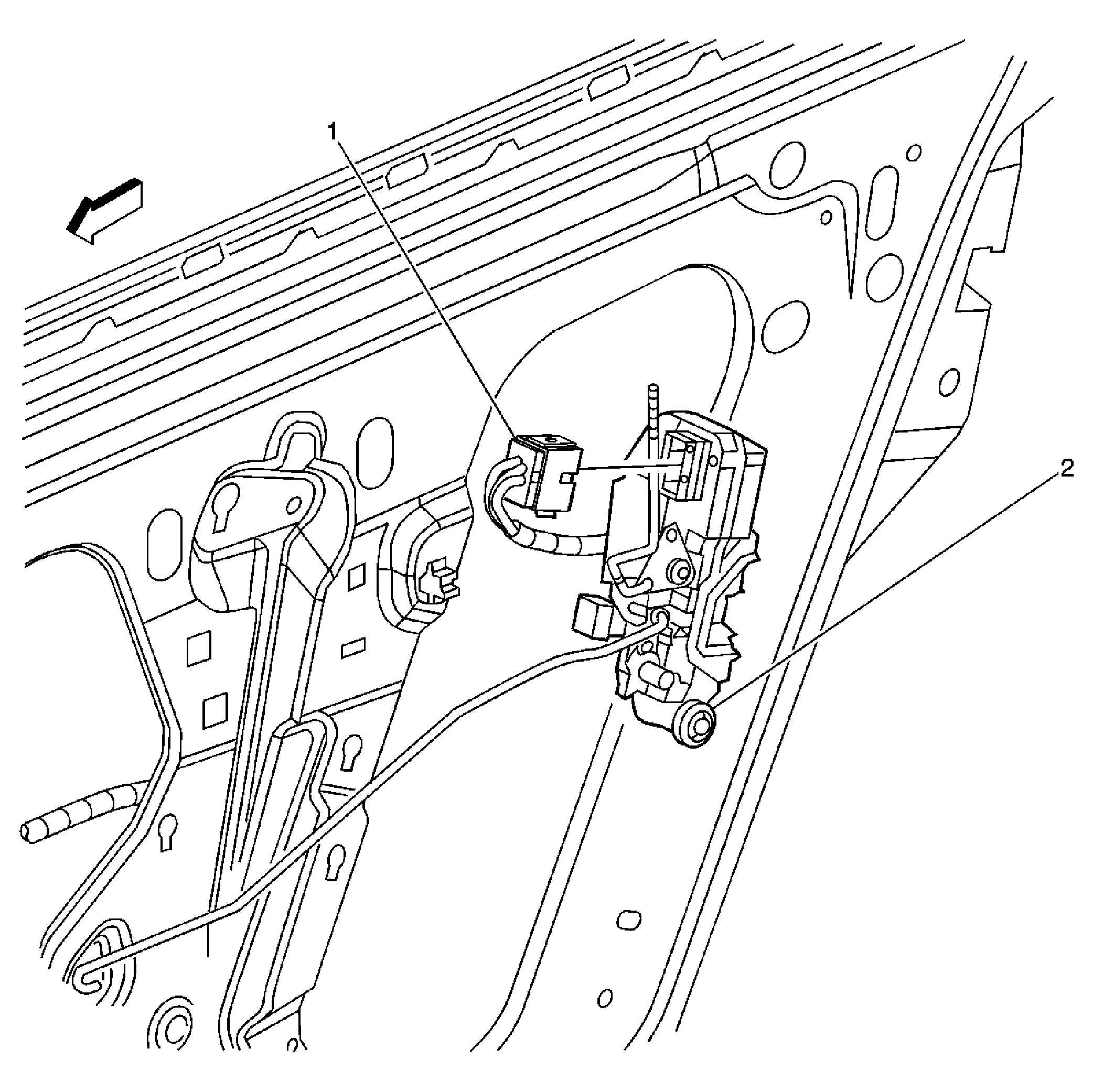

Fig 6: Right Rear Door Component Views (1 Of 2)
GM1276979Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Latch Connector - Left Rear Similar
2 Right Rear Latch Assembly - Left Rear Similar

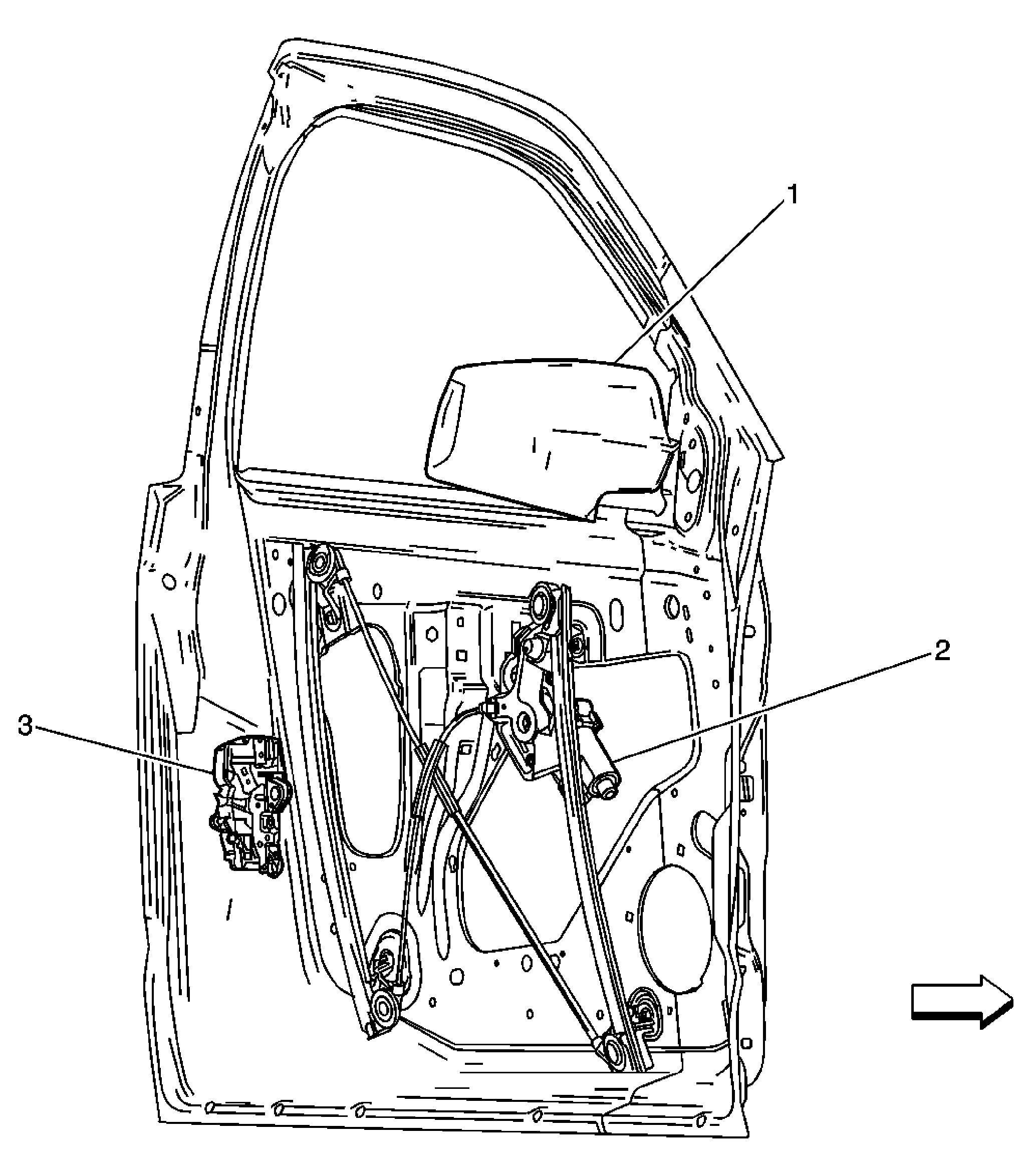

Fig 7: Front Passenger Door Component View
GM1276983Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Passenger Door Outside Mirror
2 Passenger Door Window Motor
3 Passenger Door Latch Assembly

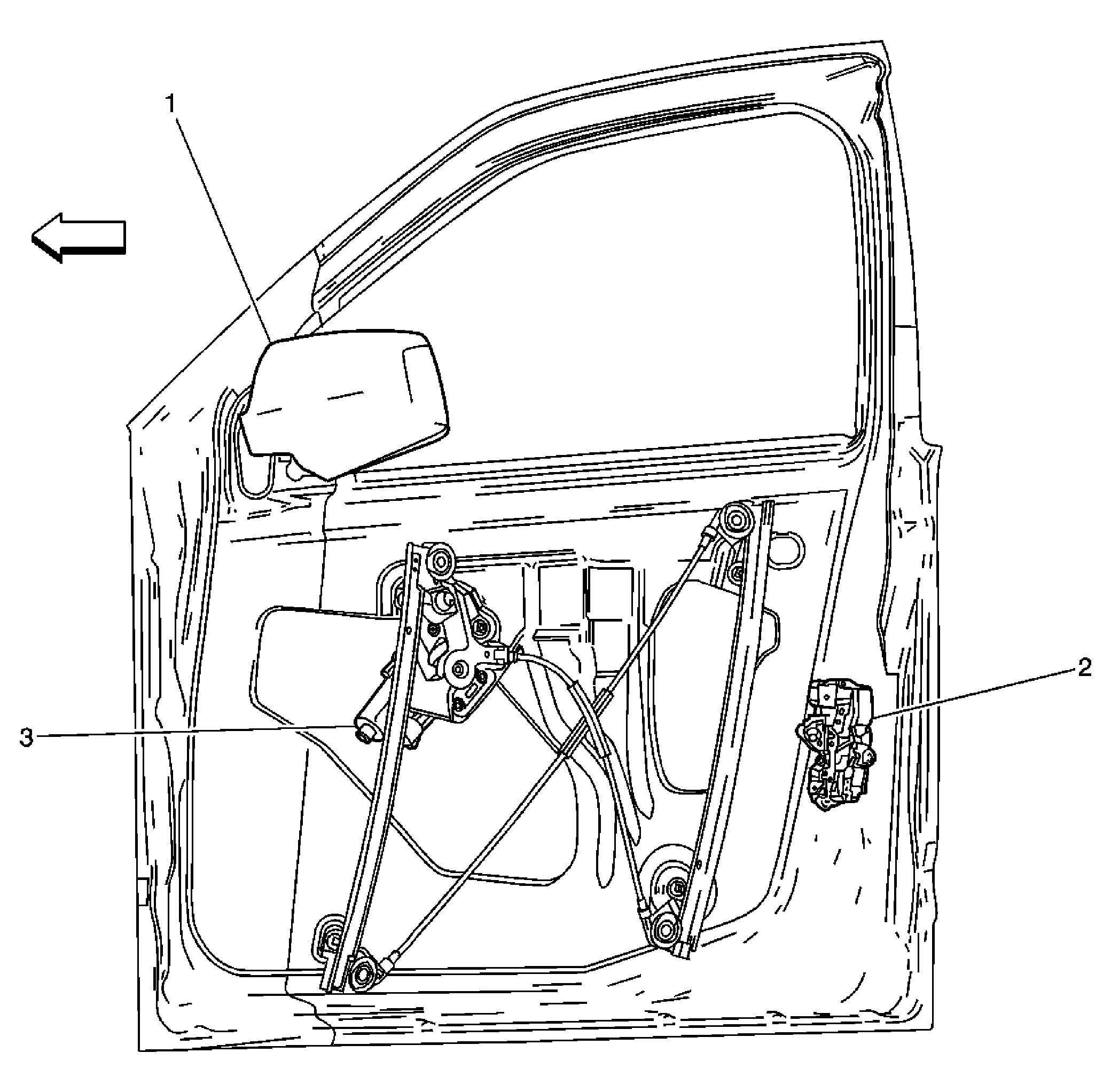

Fig 8: Driver Front Door Component View
GM1276984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Outside Mirror
2 Left Front Power Mirror
3 Left Front Door Latch

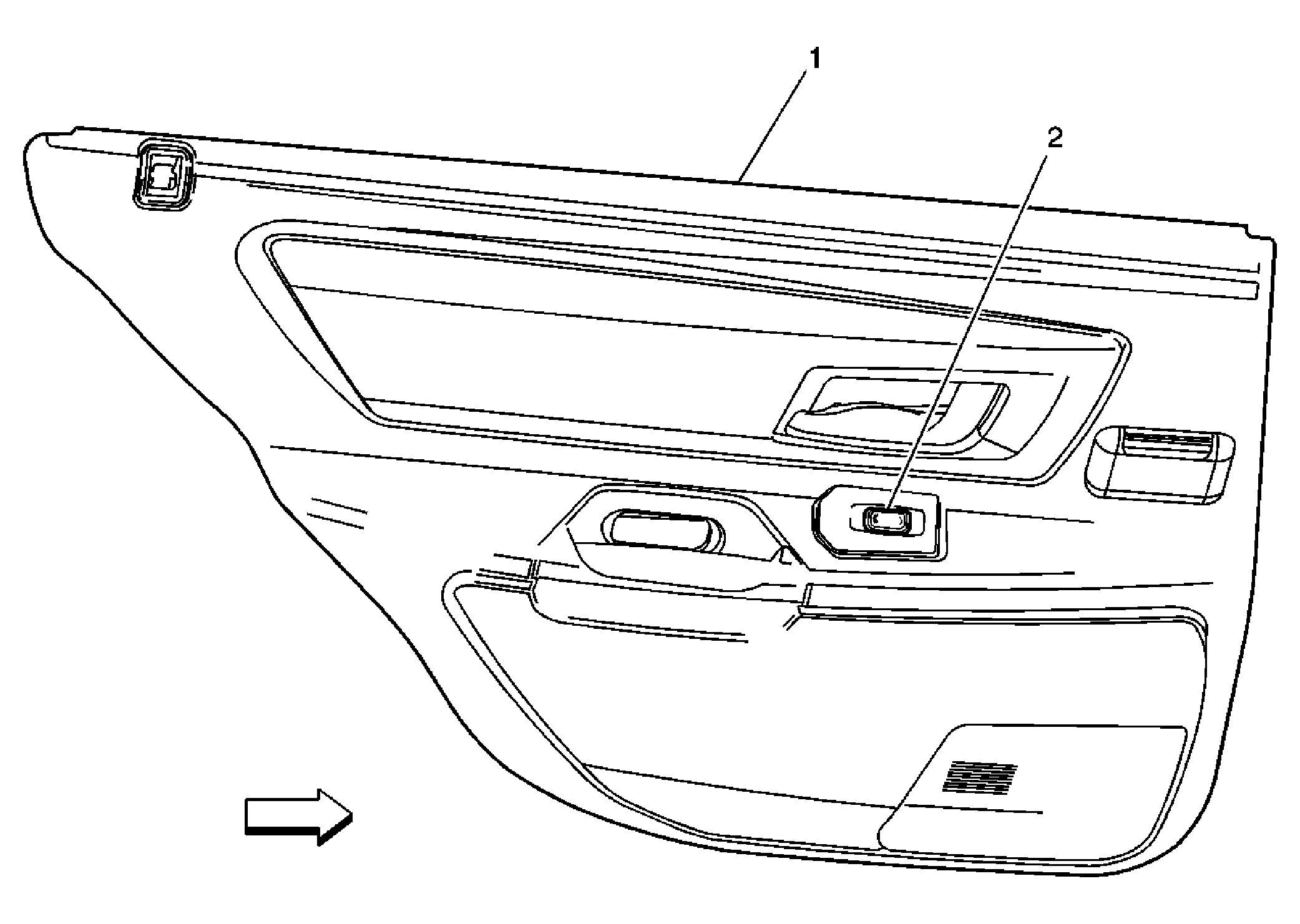

Fig 9: Window Switch - LR (RR - Similar) Component View
GM1538572Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door - LR
2 Window Switch - LR
