Engine Electrical Component Views

Fig 1: Engine Electrical Components (LY7) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter Solenoid
3	Generator
4	Battery Positive Cable Connection to Generator

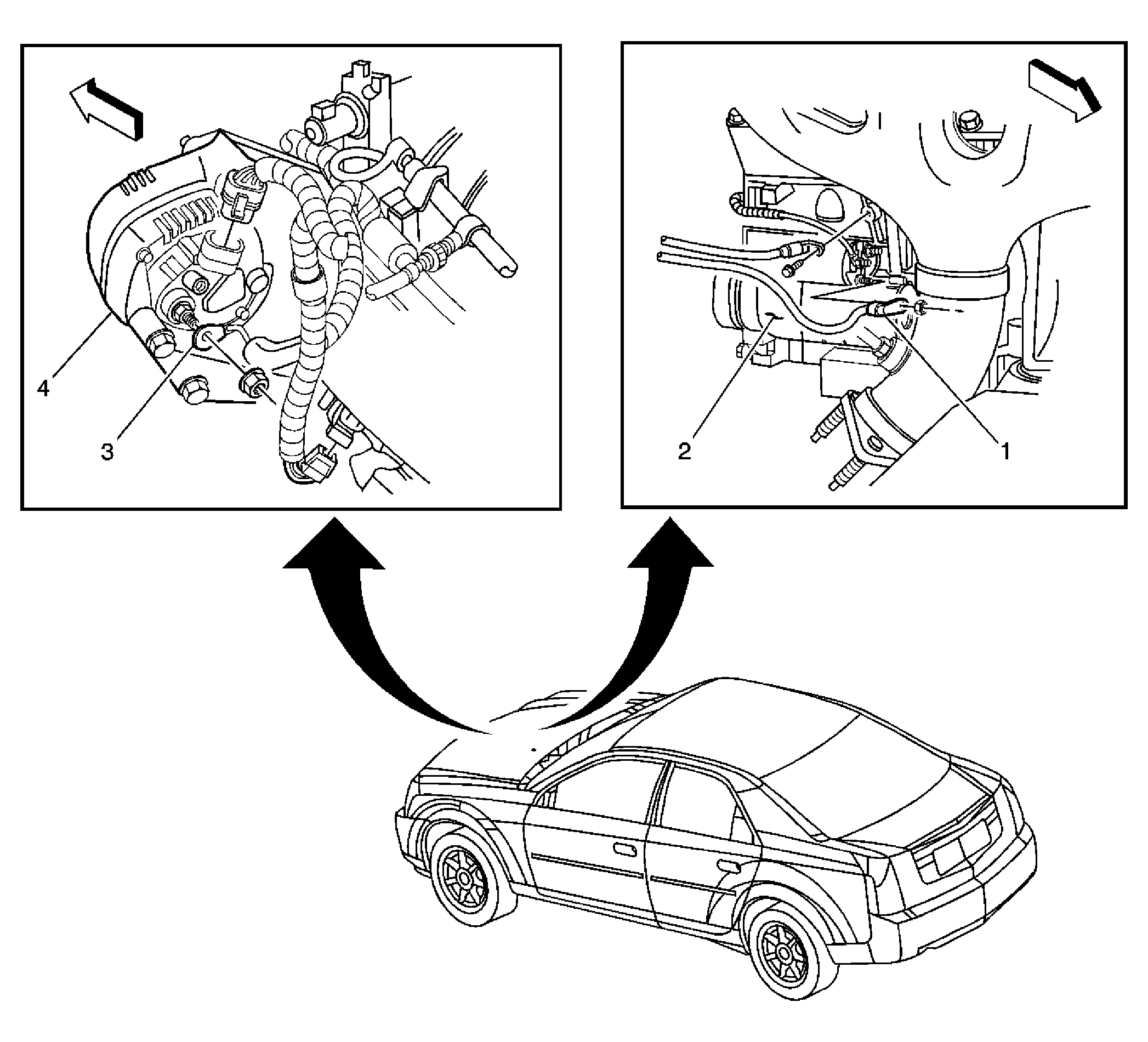

Fig 2: Battery Positive Cable - 6.0L (LS2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Positive Cable Connection to Starter
2	Starter Solenoid
3	Battery Positive Cable Connection to Generator
4	Generator

Fig 3: Clutch Pedal Position (CPP) Sensor Component View (M35/M12/MN6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Clutch Pedal Position (CPP) Switch
2	Clutch Master Cylinder
