Fuse Block - Steering Column

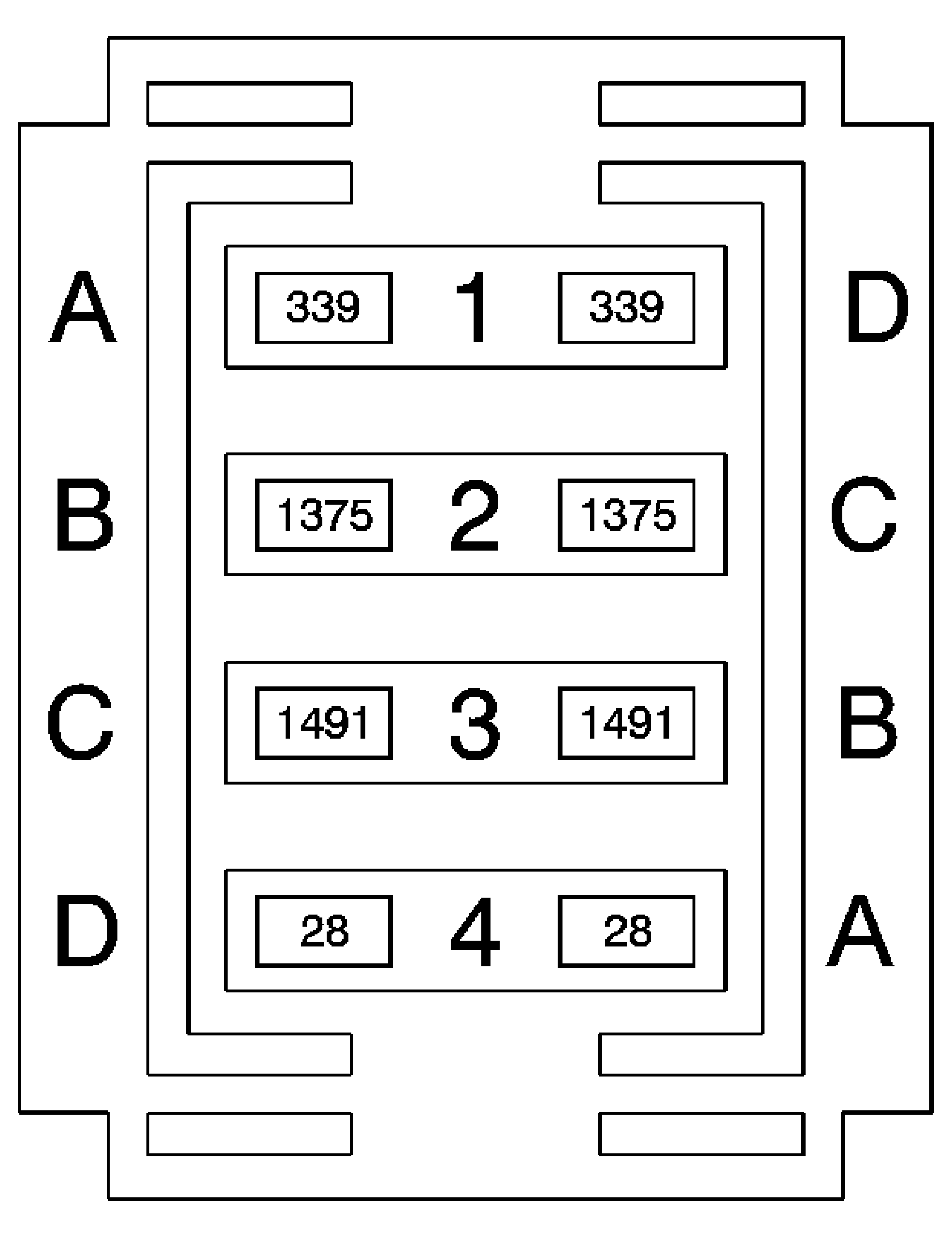

Fig 1: Fuse Block - Steering Column Connector View
GM1332486Courtesy of GENERAL MOTORS CORP.
Fuse Block - Steering Column Connector Terminal Identification

No. Device Rating Description Wire Color
1 Not Used - Not Used PK
2 Steering Wheel Control Switch 2 A Steering Wheel Controls - Right (Early Production) PU
3 Dimming 2 A Steering Wheel Controls Illumination YE
4 Horn 2 A Horn Switch (Early Production) D-GN
